Ferrari Philadelphia Parts

Table 56

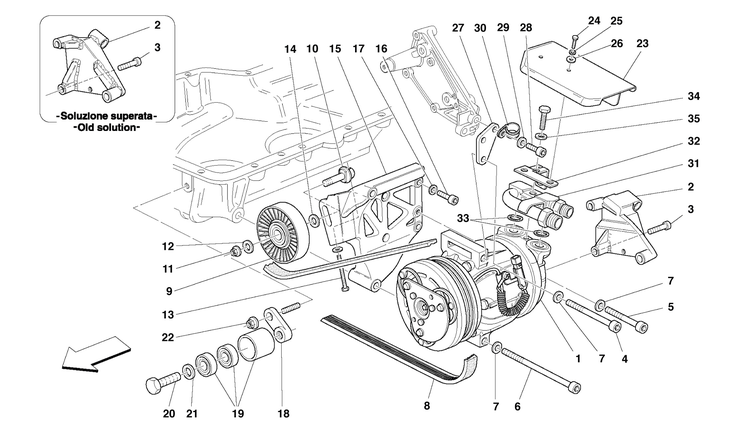

Table 56 - AIR CONDITIONING COMPRESSOR

Ref.Part#Qty.DescriptionPrice
11800411
AIR CONDITIONING COMPRESSOR
$6795.18

Part#: 180041 Qty: 1$6795.18

21800991
COMPRESSOR REAR BRACKET -Valid till stock exhaustion-

Part#: 180099 Qty: 1

21942161
COMPRESSOR REAR BRACKET -Valid after stock exhaustion of 180099-

Part#: 194216 Qty: 1

3143067242
SCREW -Valid for 180099 bracket ref.2-

Part#: 14306724 Qty: 2

3160440242
SCREW -Valid for 194216 bracket ref.2-
$0.87

Part#: 16044024 Qty: 2$0.87

3143069211
SCREW -Valid for 180099 bracket ref.2-

Part#: 14306921 Qty: 1

3160442241
SCREW -Valid for 194216 bracket ref.2-

Part#: 16044224 Qty: 1

41806041
SCREW

Part#: 180604 Qty: 1

5143071241
SCREW
$1.75

Part#: 14307124 Qty: 1$1.75

6143017241
SCREW

Part#: 14301724 Qty: 1

7111980743
WASHER
$0.39

Part#: 11198074 Qty: 3$0.39

81787581
COMPRESSOR CONTROL BELT -Not as spare part- -Replaced by 194227-

Part#: 178758 Qty: 1

81942271
COMPRESSOR CONTROL BELT -Valid till stock exhaustion-

Part#: 194227 Qty: 1

82012361
COMPRESSOR CONTROL BELT -Valid after stock exhaustion of 194227-
$27.90

Part#: 201236 Qty: 1$27.90

91725371
BELT TIGHTENING PULLEY
$151.12

Part#: 172537 Qty: 1$151.12

101725271
THREADED PIN
$223.35

Part#: 172527 Qty: 1$223.35

111332161
NUT
$10.42

Part#: 133216 Qty: 1$10.42

121026951
WASHER
$3.65

Part#: 102695 Qty: 1$3.65

131787131
SCREW

Part#: 178713 Qty: 1

141745081
WASHER

Part#: 174508 Qty: 1

151795841
COMPRESSOR SUPPORT BRACKET

Part#: 179584 Qty: 1

16143066243
SCREW

Part#: 14306624 Qty: 3

16143064241
SCREW
$0.69

Part#: 14306424 Qty: 1$0.69

17111980743
WASHER
$0.39

Part#: 11198074 Qty: 3$0.39

171836711
WASHER

Part#: 183671 Qty: 1

181802961
SMALL PLATE

Part#: 180296 Qty: 1

191796981
BELT TIGHTENING BEARING
$256.18

Part#: 179698 Qty: 1$256.18

20159709211
SCREW
$2.00

Part#: 15970921 Qty: 1$2.00

21111905741
WASHER

Part#: 11190574 Qty: 1

221777781
NUT
$2.00

Part#: 177778 Qty: 1$2.00

231787491
SHIELD FOR COMPRESSOR PROTECTION

Part#: 178749 Qty: 1

24109020243
SCREW
$0.90

Part#: 10902024 Qty: 3$0.90

251274943
WASHER
$0.65

Part#: 127494 Qty: 3$0.65

26126437243
WASHER
$0.29

Part#: 12643724 Qty: 3$0.29

271802911
SMALL PLATE

Part#: 180291 Qty: 1

28143063742
SCREW
$2.10

Part#: 14306374 Qty: 2$2.10

29111980742
WASHER
$0.39

Part#: 11198074 Qty: 2$0.39

30104497901
BRACKET WITH SHEATH

Part#: 10449790 Qty: 1

311919551
FREON DISTRIBUTOR

Part#: 191955 Qty: 1

321923481
HEAT PROTECTION BRACKET

Part#: 192348 Qty: 1

331923512
O.R. GASKET

Part#: 192351 Qty: 2

341923491
SCREW

Part#: 192349 Qty: 1

351923501
WASHER

Part#: 192350 Qty: 1
