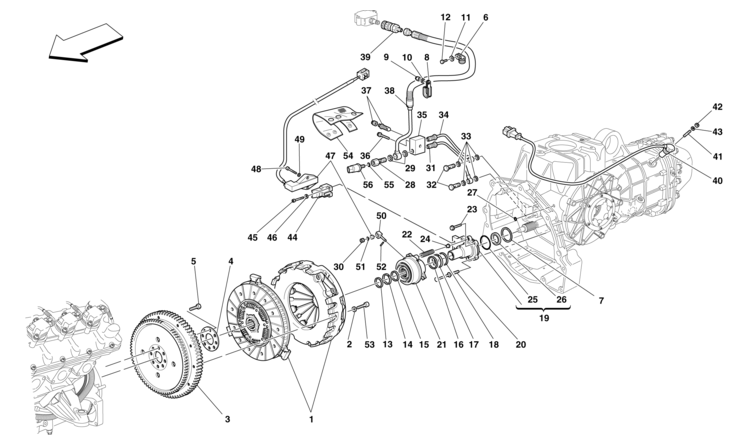

Table 26

Table 26 - CLUTCH AND CONTROLS -Applicable for F1

Ref.Part#Qty.DescriptionPrice
12220901
COMPLETE CLUTCH -Applicable for F1 gearbox-
$3526.05

Part#: 222090 Qty: 1$3526.05

2111943799
WASHER -Applicable for F1 gearbox-
$2.25

Part#: 11194379 Qty: 9$2.25

32304251
COMPLETE ENGINE FLYWHEEL -Applicable for F1 gearbox-
$3612.53

Part#: 230425 Qty: 1$3612.53

41038761
FLYWHEEL FASTENING WASHER -Applicable for F1 gearbox-
$11.63

Part#: 103876 Qty: 1$11.63

52017558
SCREW -Applicable for F1 gearbox-
$1.95

Part#: 201755 Qty: 8$1.95

61218341
BRACKET -Applicable for F1 gearbox-

Part#: 121834 Qty: 1

71733602
SHIM -Installed if necessary- -Applicable for F1 gearbox-
$24.38

Part#: 173360 Qty: 2$24.38

81395121
BRACKET WITH SHEATH -Applicable for F1 gearbox-

Part#: 139512 Qty: 1

91027411
NUT -Applicable for F1 gearbox-
$0.75

Part#: 102741 Qty: 1$0.75

10144964241
WASHER -Applicable for F1 gearbox-

Part#: 14496424 Qty: 1

11144964241
WASHER -Applicable for F1 gearbox-

Part#: 14496424 Qty: 1

12109794241
SCREW -Applicable for F1 gearbox-

Part#: 10979424 Qty: 1

131818371
SCRAPER RING -Applicable for F1 gearbox-
$26.00

Part#: 181837 Qty: 1$26.00

142080141
RING -Applicable for F1 gearbox-
$8.00

Part#: 208014 Qty: 1$8.00

151818381
SEAL RING -Applicable for F1 gearbox-
$25.15

Part#: 181838 Qty: 1$25.15

161818281
SEAL RING -Applicable for F1 gearbox-
$34.22

Part#: 181828 Qty: 1$34.22

171545071
RING -Applicable for F1 gearbox-
$5.50

Part#: 154507 Qty: 1$5.50

181818361
SCRAPER RING -Applicable for F1 gearbox-
$32.00

Part#: 181836 Qty: 1$32.00

192349521
MOUNTING FLANGE -Applicable for F1 gearbox- -No longer supplied- -Replaced by 207539-

Part#: 234952 Qty: 1

192075391
MOUNTING FLANGE -Applicable for F1 gearbox-
$1383.86

Part#: 207539 Qty: 1$1383.86

202011712
END STOP STUD BOLT -Applicable for F1 gearbox-
$46.57

Part#: 201171 Qty: 2$46.57

212349431
COMPLETE THRUST BEARING -Applicable for F1 gearbox-

Part#: 234943 Qty: 1

221552072
PRE-TIGHTENING SPRING -Applicable for F1 gearbox-
$8.42

Part#: 155207 Qty: 2$8.42

23160520242
SCREW -Applicable for F1 gearbox-
$2.25

Part#: 16052024 Qty: 2$2.25

241552062
SPRING SHIM -Applicable for F1 gearbox- -No longer supplied-
$4.90

Part#: 155206 Qty: 2$4.90

251361401
O-RING -Applicable for F1 gearbox-
$1.50

Part#: 136140 Qty: 1$1.50

261723631
SEAL RING -Applicable for F1 gearbox-
$27.85

Part#: 172363 Qty: 1$27.85

271664322
O-RING -Applicable for F1 gearbox-
$1.00

Part#: 166432 Qty: 2$1.00

281994101
PIPE UNION -Applicable for F1 gearbox-

Part#: 199410 Qty: 1

29102610602
GASKET -Applicable for F1 gearbox-
$0.50

Part#: 10261060 Qty: 2$0.50

301678021
CAP -Applicable for F1 gearbox-
$38.97

Part#: 167802 Qty: 1$38.97

311801831
CLUTCH CONTROL TUBE -Applicable for F1 gearbox- -No longer supplied- -Replaced by 242066-

Part#: 180183 Qty: 1

312420661
CLUTCH CONTROL TUBE -Applicable for F1 gearbox-

Part#: 242066 Qty: 1

32119038112
PIPE UNION -Applicable for F1 gearbox-

Part#: 11903811 Qty: 2

33102844604
GASKET -Applicable for F1 gearbox-
$1.00

Part#: 10284460 Qty: 4$1.00

341801841
BLEED SYSTEM PIPE -Applicable for F1 gearbox- -No longer supplied- -Replaced by 242074-

Part#: 180184 Qty: 1

342420741
BLEED SYSTEM PIPE -Applicable for F1 gearbox-

Part#: 242074 Qty: 1

352357061
BLOCK -Applicable for F1 gearbox-
$161.47

Part#: 235706 Qty: 1$161.47

36162863241
SCREW -Applicable for F1 gearbox-

Part#: 16286324 Qty: 1

371529541
BLEED SCREW -Applicable for F1 gearbox-
$6.25

Part#: 152954 Qty: 1$6.25

382394291
CLUTCH CONTROL TUBE -Applicable for F1 gearbox-

Part#: 239429 Qty: 1

392251481
FEMALE QUICK COUPLING -Applicable for F1 gearbox-
$128.46

Part#: 225148 Qty: 1$128.46

401687291
ELECTROMAGNETIC SENSOR -Applicable for F1 gearbox-
$294.17

Part#: 168729 Qty: 1$294.17

41115001241
STUD BOLT -Applicable for F1 gearbox-
$0.50

Part#: 11500124 Qty: 1$0.50

42107201241
NUT -Applicable for F1 gearbox-

Part#: 10720124 Qty: 1

43126042741
WASHER -Applicable for F1 gearbox-
$0.30

Part#: 12604274 Qty: 1$0.30

442011601
MOUNTING -Applicable for F1 gearbox-

Part#: 201160 Qty: 1

45143585242
SCREW -Applicable for F1 gearbox-
$0.14

Part#: 14358524 Qty: 2$0.14

46105193782
WASHER -Applicable for F1 gearbox-
$0.10

Part#: 10519378 Qty: 2$0.10

472193401
COMPLETE SENSOR KIT -Applicable for F1 gearbox-
$515.09

Part#: 219340 Qty: 1$515.09

48143033242
SCREW -Applicable for F1 gearbox-
$0.50

Part#: 14303324 Qty: 2$0.50

49105192242
WASHER -Applicable for F1 gearbox-

Part#: 10519224 Qty: 2

501655671
PIN -Applicable for F1 gearbox-
$67.49

Part#: 165567 Qty: 1$67.49

511656581
O-RING -Applicable for F1 gearbox-
$8.77

Part#: 165658 Qty: 1$8.77

52141585701
PIN -Applicable for F1 gearbox-
$1.00

Part#: 14158570 Qty: 1$1.00

532043859
SCREW -Applicable for F1 gearbox-
$17.23

Part#: 204385 Qty: 9$17.23

542416911
FILLER NECK SHIELD -Applicable for F1 gearbox-

Part#: 241691 Qty: 1

551406051
O-RING -Applicable for F1 gearbox-
$0.90

Part#: 140605 Qty: 1$0.90

562032941
PRESSURE SENSOR -Applicable for F1 gearbox-
$1053.79

Part#: 203294 Qty: 1$1053.79
