Table 31

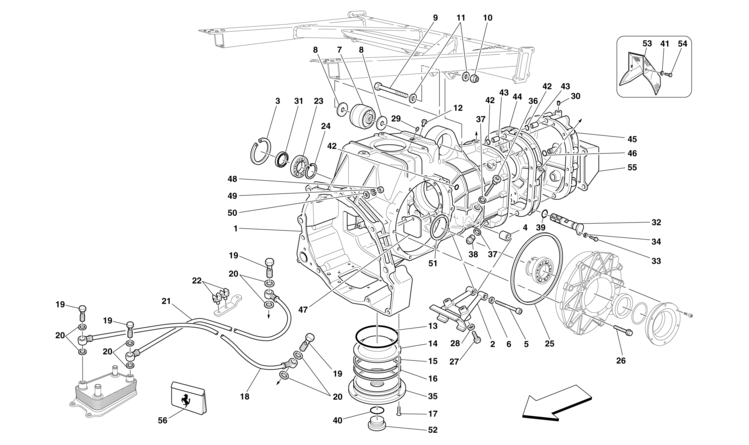

Table 31 - GEARBOX - COVERS

Ref.Part#Qty.DescriptionPrice
02126331
GEARBOX HOUSING -Applicable up to Ass. No. 77100-

Part#: 212633 Qty: 1

02392291
GEARBOX HOUSING -Applicable from Ass. No. 77101- -Applicable from gearbox No. 131521-

Part#: 239229 Qty: 1

12304831
COMPLETE GEARBOX -Request SAT authorisation- -Applicable until depletion-

Part#: 230483 Qty: 1

12473201
COMPLETE GEARBOX -Also order supplement kit ref. 56- -Request SAT authorisation-

Part#: 247320 Qty: 1

22155991
RETENTION BRACKET ABSORBER

Part#: 215599 Qty: 1

31857231
SEEGER RING
$6.80

Part#: 185723 Qty: 1$6.80

42131741
BUSHING -Ext. D. 32 mm- - Int. D. 17 mm-
$127.52

Part#: 213174 Qty: 1$127.52

5143147741
SCREW
$7.00

Part#: 14314774 Qty: 1$7.00

6135077341
WASHER
$1.15

Part#: 13507734 Qty: 1$1.15

72375311
MOUNTING BUSHING
$156.39

Part#: 237531 Qty: 1$156.39

81881412
CONTAINMENT FLYWHEEL
$39.53

Part#: 188141 Qty: 2$39.53

9111171341
SCREW
$19.45

Part#: 11117134 Qty: 1$19.45

101060041
NUT
$6.00

Part#: 106004 Qty: 1$6.00

11144968242
WASHER
$0.17

Part#: 14496824 Qty: 2$0.17

121977971
BREATHER

Part#: 197797 Qty: 1

131901831
O-RING
$19.57

Part#: 190183 Qty: 1$19.57

141224291
OIL FILTER
$16.99

Part#: 122429 Qty: 1$16.99

151857231
SEEGER RING
$6.80

Part#: 185723 Qty: 1$6.80

162075411
GASKET
$13.98

Part#: 207541 Qty: 1$13.98

17144406204
SCREW

Part#: 14440620 Qty: 4

181981631
OIL DELIVERY PIPE

Part#: 198163 Qty: 1

191847274
CONNECTOR
$7.48

Part#: 184727 Qty: 4$7.48

201451928
GASKET

Part#: 145192 Qty: 8

211981661
OIL RETURN PIPE

Part#: 198166 Qty: 1

22652500002
CLIP
$2.26

Part#: 65250000 Qty: 2$2.26

231849951
BALL BEARING
$180.71

Part#: 184995 Qty: 1$180.71

241849941
SNAP RING
$7.26

Part#: 184994 Qty: 1$7.26

252058811
SHIM -Th. 2.5 mm-

Part#: 205881 Qty: 1

252063491
SHIM -Th. 2.2 mm-

Part#: 206349 Qty: 1

252063501
SHIM -Th. 2.8 mm-

Part#: 206350 Qty: 1

252063511
SHIM -Th. 3 mm-

Part#: 206351 Qty: 1

261628742111
SCREW

Part#: 16287421 Qty: 11

27152315242
SCREW
$0.88

Part#: 15231524 Qty: 2$0.88

28126014742
WASHER
$0.25

Part#: 12601474 Qty: 2$0.25

29143260011
THREADED PLUG
$0.75

Part#: 14326001 Qty: 1$0.75

30143261011
THREADED PLUG
$1.65

Part#: 14326101 Qty: 1$1.65

311840061
RH. OIL SEAL RING.
$94.35

Part#: 184006 Qty: 1$94.35

321821001
GEARBOX OIL FILTER
$140.00

Part#: 182100 Qty: 1$140.00

33109776241
SCREW

Part#: 10977624 Qty: 1

34111992771
WASHER

Part#: 11199277 Qty: 1

351985961
OIL FILTER COVER

Part#: 198596 Qty: 1

361821171
DIPSTICK
$89.35

Part#: 182117 Qty: 1$89.35

37102634603
GASKET
$1.00

Part#: 10263460 Qty: 3$1.00

381839622
CAP
$32.96

Part#: 183962 Qty: 2$32.96

391821191
O-RING
$3.35

Part#: 182119 Qty: 1$3.35

40102650601
GASKET
$1.71

Part#: 10265060 Qty: 1$1.71

41144469242
WASHER

Part#: 14446924 Qty: 2

42144569814
GASKET
$1.00

Part#: 14456981 Qty: 4$1.00

431509574
ALIGNMENT BUSHING

Part#: 150957 Qty: 4

441870641
PLATE -Applicable up to Ass. No. 77100-

Part#: 187064 Qty: 1

442392301
PLATE -Applicable from Ass. No. 77101- -Applicable from gearbox No. 131521-

Part#: 239230 Qty: 1

452126341
REAR COVER

Part#: 212634 Qty: 1

461371922
O-RING
$0.75

Part#: 137192 Qty: 2$0.75

471839861
PLATE

Part#: 183986 Qty: 1

481765737
NUT
$2.49

Part#: 176573 Qty: 7$2.49

491274977
WASHER
$0.25

Part#: 127497 Qty: 7$0.25

50144966247
WASHER
$1.11

Part#: 14496624 Qty: 7$1.11

512063511
SHIM -Th. 3 mm- -Installed if necessary-

Part#: 206351 Qty: 1

512063501
SHIM -Th. 2.8 mm- -Installed if necessary-

Part#: 206350 Qty: 1

512147881
SHIM -Th. 2.6 mm- -Installed if necessary-

Part#: 214788 Qty: 1

512058811
SHIM -Th. 2.5 mm- -Installed if necessary-

Part#: 205881 Qty: 1

52102761401
CAP
$57.76

Part#: 10276140 Qty: 1$57.76

53696195001
HEAT SHIELD

Part#: 69619500 Qty: 1

54109776242
SCREW

Part#: 10977624 Qty: 2

552074611
REAR IMPACT ABSORBER -Applicable for USA, CDN-

Part#: 207461 Qty: 1

562614621
GEARBOX FILLER KIT

Part#: 261462 Qty: 1
