Table 47

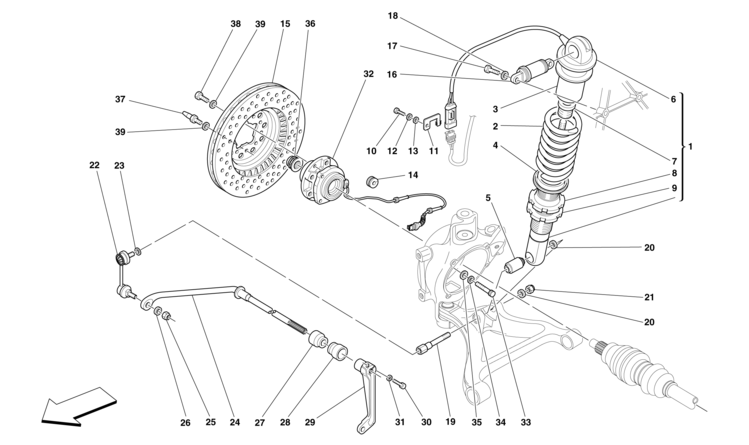

Table 47 - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Ref.Part#Qty.DescriptionPrice
12389622
REAR SHOCK ABSORBER

Part#: 238962 Qty: 2

22299552
SPRING -Standard-

Part#: 229955 Qty: 2

22305742
SPRING -Variable pitch- -Alternative solution- -No longer supplied- -Replaced by 257179-

Part#: 230574 Qty: 2

22571792
SPRING -Steel- -Alternative solution-

Part#: 257179 Qty: 2

31776882
UPPER SPACER -No longer supplied- -Replaced by 181409-
$11.40

Part#: 177688 Qty: 2$11.40

31814092
UPPER SPACER -No longer supplied- -Replaced by 245623-

Part#: 181409 Qty: 2

32456232
UPPER SPACER
$79.73

Part#: 245623 Qty: 2$79.73

41696842
LOWER SPACER -No longer supplied- -Replaced by 181408-
$15.90

Part#: 169684 Qty: 2$15.90

41814082
LOWER SPACER
$71.32

Part#: 181408 Qty: 2$71.32

51576302
BALL-JOINT
$163.04

Part#: 157630 Qty: 2$163.04

61747272
UPPER SPRING RETENTION CAP
$155.00

Part#: 174727 Qty: 2$155.00

71747282
SHOCK ABSORBER BUSHING
$172.37

Part#: 174728 Qty: 2$172.37

81747252
CAP

Part#: 174725 Qty: 2

91747262
THREADED RING NUT

Part#: 174726 Qty: 2

10109020242
SCREW -No longer supplied- -Replaced by 230083-
$0.90

Part#: 10902024 Qty: 2$0.90

102300832
SCREW

Part#: 230083 Qty: 2

111626062
CLIP
$1.47

Part#: 162606 Qty: 2$1.47

121274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

13126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

14104602872
RUBBER RING

Part#: 10460287 Qty: 2

152223402
REAR BRAKE DISC -Replace as a pair-
$5479.00

Part#: 222340 Qty: 2$5479.00

162129482
SILENTBLOCK
$239.02

Part#: 212948 Qty: 2$239.02

17113069344
SCREW
$0.48

Part#: 11306934 Qty: 4$0.48

181600924
WASHER

Part#: 160092 Qty: 4

192049742
SCREW
$26.50

Part#: 204974 Qty: 2$26.50

201292254
WASHER

Part#: 129225 Qty: 4

211028252
NUT
$1.50

Part#: 102825 Qty: 2$1.50

221611091
RH. SPHERICAL TIE-ROD
$191.58

Part#: 161109 Qty: 1$191.58

221611101
LH. SPHERICAL TIE-ROD
$166.47

Part#: 161110 Qty: 1$166.47

231600922
WASHER

Part#: 160092 Qty: 2

241984161
REAR STABILISER BAR -No longer supplied- -Replaced by 239584-

Part#: 198416 Qty: 1

242395841
REAR STABILISER BAR

Part#: 239584 Qty: 1

25121647142
NUT
$1.50

Part#: 12164714 Qty: 2$1.50

26126014742
WASHER

Part#: 12601474 Qty: 2

271707161
STABILISER BAR BUSH
$89.28

Part#: 170716 Qty: 1$89.28

281707171
STABILISER BAR BUSH
$74.41

Part#: 170717 Qty: 1$74.41

291758611
LH. DIAGONAL BRACE

Part#: 175861 Qty: 1

301709501
SCREW
$5.17

Part#: 170950 Qty: 1$5.17

31126014741
WASHER

Part#: 12601474 Qty: 1

321941342
COMPLETE HUB BEARING

Part#: 194134 Qty: 2

331805918
SCREW

Part#: 180591 Qty: 8

341600928
WASHER

Part#: 160092 Qty: 8

35107324148
WASHER

Part#: 10732414 Qty: 8

362091842
NUT
$96.50

Part#: 209184 Qty: 2$96.50

371043702
BRAKE DISC FASTENER SCREW
$1.50

Part#: 104370 Qty: 2$1.50

38160434242
SCREW
$1.25

Part#: 16043424 Qty: 2$1.25

391274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50
