Ferrari Philadelphia Parts

Table 124

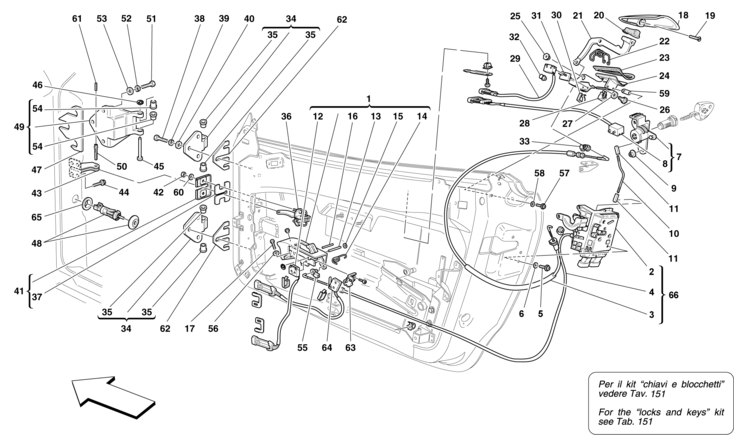

Table 124 - DOORS - OPENING MECHANISM AND HINGES

Ref.Part#Qty.DescriptionPrice
1678393001
RH INTERNAL DOOR RELEASE HANDLE -No longer supplied- -Replaced by 68884500-

Part#: 67839300 Qty: 1

1688845001
RH INTERNAL DOOR RELEASE HANDLE
$1188.22

Part#: 68884500 Qty: 1$1188.22

1678391001
LH INTERNAL DOOR RELEASE HANDLE -No longer supplied- -Replaced by 68884600-

Part#: 67839100 Qty: 1

1688846001
LH INTERNAL DOOR RELEASE HANDLE
$1131.64

Part#: 68884600 Qty: 1$1131.64

2699980001
RH DOOR LOCK -Replaced by lock compl. with cables ref. 66- -Not for GD- -Applicable up to Ass. No. 74918- -No longer supplied-
$475.95

Part#: 69998000 Qty: 1$475.95

2803552001
RH DOOR LOCK -Without knob- -Replaced by lock compl. with cables ref. 66- -Not for GD- -Applicable from Ass. No. 74919- -No longer supplied-

Part#: 80355200 Qty: 1

2689932001
LH DOOR LOCK -Replaced by lock compl. with cables ref. 66- -Applicable for GD- -Applicable up to Ass. No. 74918- -No longer supplied-
$478.16

Part#: 68993200 Qty: 1$478.16

2803553001
LH DOOR LOCK -Without knob- -Replaced by lock compl. with cables ref. 66- -Applicable for GD- -Applicable from Ass. No. 74919- -No longer supplied-

Part#: 80355300 Qty: 1

3686026001
EXTERNAL DOOR RELEASE CABLE -Replaced by lock compl. with cables ref. 66- -No longer supplied-
$44.75

Part#: 68602600 Qty: 1$44.75

4650693002
DOOR INTERNAL OPENING CABLE -No longer supplied- -Replaced by 68883400-
$71.95

Part#: 65069300 Qty: 2$71.95

4688834002
DOOR INTERNAL OPENING CABLE -Replaced by lock compl. with cables ref. 66- -No longer supplied-
$0.00

Part#: 68883400 Qty: 2$0.00

5629409006
SCREW
$2.50

Part#: 62940900 Qty: 6$2.50

6135502776
WASHER

Part#: 13550277 Qty: 6

7658394001
RH DOOR LOCK BLOCK -Not for GD- -Applicable up to Ass. No. 74896-

Part#: 65839400 Qty: 1

7658394001
RH DOOR LOCK BLOCK -Applicable for GD-

Part#: 65839400 Qty: 1

7658395001
LH DOOR LOCK BLOCK -Applicable for GD- -Applicable up to Ass. No. 74896-

Part#: 65839500 Qty: 1

7658395001
LH DOOR LOCK BLOCK -Not for GD-

Part#: 65839500 Qty: 1

8638592001
RH MICROSWITCH -Not for GD- -Applicable up to Ass. No. 74896-
$416.25

Part#: 63859200 Qty: 1$416.25

8638592001
RH MICROSWITCH -Applicable for GD-
$416.25

Part#: 63859200 Qty: 1$416.25

8638593001
LH MICROSWITCH -Applicable for GD- -Applicable up to Ass. No. 74896-

Part#: 63859300 Qty: 1

8638592001
LH MICROSWITCH -Not for GD-
$416.25

Part#: 63859200 Qty: 1$416.25

9130460114
NUT -Applicable up to Ass. No. 74896-
$0.50

Part#: 13046011 Qty: 4$0.50

9130460112
NUT -Applicable from Ass. No. 74897-
$0.50

Part#: 13046011 Qty: 2$0.50

10658365002
SAFETY TIE-ROD -Applicable up to Ass. No. 74896-

Part#: 65836500 Qty: 2

10658365001
SAFETY TIE-ROD -Applicable from Ass. No. 74897-

Part#: 65836500 Qty: 1

11627940004
SNAP JOINT -Applicable up to Ass. No. 74896-
$10.50

Part#: 62794000 Qty: 4$10.50

11627940002
SNAP JOINT -Applicable from Ass. No. 74897-
$10.50

Part#: 62794000 Qty: 2$10.50

121711202
MICROSWITCH
$227.56

Part#: 171120 Qty: 2$227.56

13637234002
PIN

Part#: 63723400 Qty: 2

14637246001
RH SPRING

Part#: 63724600 Qty: 1

14637247001
LH SPRING

Part#: 63724700 Qty: 1

15110874762
SNAP RING

Part#: 11087476 Qty: 2

16655827002
SPRING PIN

Part#: 65582700 Qty: 2

17132741772
SCREW

Part#: 13274177 Qty: 2

18635760101
RH EXTERNAL DOOR HANDLE
$269.94

Part#: 63576010 Qty: 1$269.94

18635761101
LH EXTERNAL DOOR HANDLE

Part#: 63576110 Qty: 1

19133092772
SCREW
$0.35

Part#: 13309277 Qty: 2$0.35

20648611001
RH INTERNAL GASKET

Part#: 64861100 Qty: 1

20648612001
LH INTERNAL GASKET

Part#: 64861200 Qty: 1

21648606002
ARM
$150.86

Part#: 64860600 Qty: 2$150.86

22648607002
HANDLE SPRING
$50.35

Part#: 64860700 Qty: 2$50.35

23648609001
RH HANDLE GASKET

Part#: 64860900 Qty: 1

23648610001
LH HANDLE GASKET
$186.76

Part#: 64861000 Qty: 1$186.76

24648604101
RH HANDLE SEAT

Part#: 64860410 Qty: 1

24648605101
LH HANDLE SEAT
$127.51

Part#: 64860510 Qty: 1$127.51

25653987002
BUSHING
$69.11

Part#: 65398700 Qty: 2$69.11

26648608002
PIN
$138.18

Part#: 64860800 Qty: 2$138.18

27655207004
WASHER
$10.71

Part#: 65520700 Qty: 4$10.71

28653986002
GUIDE

Part#: 65398600 Qty: 2

291781872
MICROSWITCH
$105.50

Part#: 178187 Qty: 2$105.50

30631799002
FASTENER CLIP
$5.49

Part#: 63179900 Qty: 2$5.49

31658063002
PLATE

Part#: 65806300 Qty: 2

32638534002
RUBBER BUSHING

Part#: 63853400 Qty: 2

33145782832
CLIP
$0.75

Part#: 14578283 Qty: 2$0.75

34648033004
MOBILE HINGE

Part#: 64803300 Qty: 4

35628253008
HINGE BUSHING
$48.70

Part#: 62825300 Qty: 8$48.70

36651952002
TIE-ROD
$470.53

Part#: 65195200 Qty: 2$470.53

37638923002
GASKET

Part#: 63892300 Qty: 2

381604393412
SCREW
$0.60

Part#: 16043934 Qty: 12$0.60

391057177912
WASHER -No longer supplied- -Replaced by 11194074-
$0.09

Part#: 10571779 Qty: 12$0.09

391119407412
WASHER
$0.10

Part#: 11194074 Qty: 12$0.10

401449657812
WASHER

Part#: 14496578 Qty: 12

41638952001
RH COLUMN
$44.39

Part#: 63895200 Qty: 1$44.39

41638953001
LH COLUMN
$44.40

Part#: 63895300 Qty: 1$44.40

421027414
NUT
$0.75

Part#: 102741 Qty: 4$0.75

43671118002
BRACKET
$384.79

Part#: 67111800 Qty: 2$384.79

44138369718
SCREW -No longer supplied- -Replaced by 230083-
$0.35

Part#: 13836971 Qty: 8$0.35

442300838
SCREW

Part#: 230083 Qty: 8

45648034004
PIN
$67.75

Part#: 64803400 Qty: 4$67.75

46110879744
SNAP RING
$0.95

Part#: 11087974 Qty: 4$0.95

47657134004
SHIM

Part#: 65713400 Qty: 4

481796972
PILLAR SWITCH
$45.86

Part#: 179697 Qty: 2$45.86

49648032004
FIXED HINGE

Part#: 64803200 Qty: 4

50668428002
PIN
$4.95

Part#: 66842800 Qty: 2$4.95

511604353412
SCREW
$0.20

Part#: 16043534 Qty: 12$0.20

521057177912
WASHER -No longer supplied- -Replaced by 11194074-
$0.09

Part#: 10571779 Qty: 12$0.09

521119407412
WASHER
$0.10

Part#: 11194074 Qty: 12$0.10

531355040512
WASHER
$0.20

Part#: 13550405 Qty: 12$0.20

54628253008
HINGE BUSHING
$48.70

Part#: 62825300 Qty: 8$48.70

55657009002
FASTENER CLIP
$2.20

Part#: 65700900 Qty: 2$2.20

56126378782
WASHER

Part#: 12637878 Qty: 2

571698142
SCREW
$1.58

Part#: 169814 Qty: 2$1.58

581664672
WASHER -No longer supplied- -Replaced by 82242400-
$1.16

Part#: 166467 Qty: 2$1.16

58822424002
WASHER

Part#: 82242400 Qty: 2

59655475006
SHIM -Applicable until depletion-

Part#: 65547500 Qty: 6

59699196002
SHIM -Applicable after depletion of 65547500-

Part#: 69919600 Qty: 2

60126444244
WASHER
$0.50

Part#: 12644424 Qty: 4$0.50

61141638742
SPRING PIN

Part#: 14163874 Qty: 2

62659986004
SHIM

Part#: 65998600 Qty: 4

63679040001
RH MICROSWITCH BRACKET

Part#: 67904000 Qty: 1

63679039001
LH MICROSWITCH BRACKET

Part#: 67903900 Qty: 1

642125842
DOOR LOCK MICROSWITCH
$154.32

Part#: 212584 Qty: 2$154.32

65689176002
SWITCH FIXING PLATE
$36.78

Part#: 68917600 Qty: 2$36.78

66699980001
RH DOOR LOCK COMPLETE WITH CABLES, WITHOUT EXTERNAL LOCKING -Version without knob-
$475.95

Part#: 69998000 Qty: 1$475.95

66689931001
RH DOOR LOCK COMPLETE WITH CABLES -Version with knob-
$478.16

Part#: 68993100 Qty: 1$478.16

66699981001
LH DOOR LOCK COMPLETE WITH CABLES, WITHOUT EXTERNAL LOCKING -Version without knob-
$453.29

Part#: 69998100 Qty: 1$453.29

66689932001
LH DOOR LOCK COMPLETE WITH CABLES -Version with knob-
$478.16

Part#: 68993200 Qty: 1$478.16
