Ferrari Philadelphia Parts

Table 19

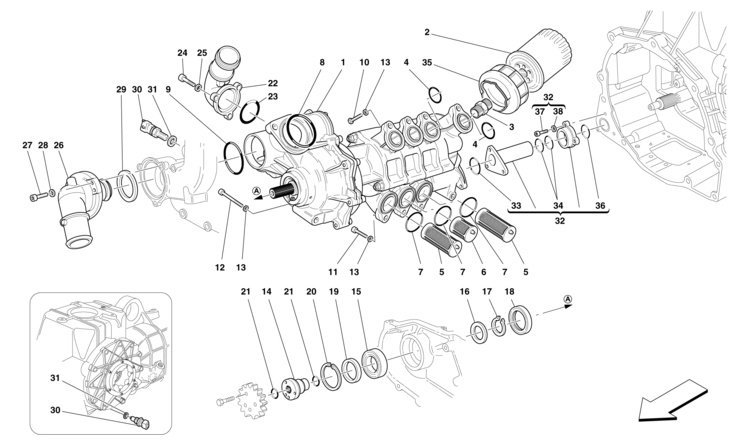

Table 19 - OIL / WATER PUMP

Ref.Part#Qty.DescriptionPrice
12132231
COMPLETE OIL-WATER PUMP -Not for F1 gearbox-
$3841.25

Part#: 213223 Qty: 1$3841.25

12132231
COMPLETE OIL-WATER PUMP -Applicable up to Ass. No. 58097- -Applicable for F1 gearbox-
$3841.25

Part#: 213223 Qty: 1$3841.25

12176281
COMPLETE OIL-WATER PUMP -Applicable from Ass. No. 58098- -Applicable for F1 gearbox-
$3686.77

Part#: 217628 Qty: 1$3686.77

22347421
OIL FILTER CARTRIDGE -No longer supplied- -Replaced by 234742-
$54.79

Part#: 234742 Qty: 1$54.79

22347421
OIL FILTER CARTRIDGE
$54.79

Part#: 234742 Qty: 1$54.79

31776041
THREADED CONNECTOR

Part#: 177604 Qty: 1

41339384
O-RING
$1.49

Part#: 133938 Qty: 4$1.49

51870512
LATERAL OIL RECOVERY FILTER
$10.63

Part#: 187051 Qty: 2$10.63

61871621
CENTRAL OIL RECOVERY FILTER
$32.31

Part#: 187162 Qty: 1$32.31

71482253
O-RING
$1.59

Part#: 148225 Qty: 3$1.59

81328291
O-RING
$1.45

Part#: 132829 Qty: 1$1.45

91412501
O-RING
$0.50

Part#: 141250 Qty: 1$0.50

101853454
SCREW -M8 X 25-

Part#: 185345 Qty: 4

11143064243
SCREW -M8 X 25-
$0.69

Part#: 14306424 Qty: 3$0.69

11143065241
SCREW -M8 X 30-
$0.79

Part#: 14306524 Qty: 1$0.79

12143593242
SCREW -M8 X 65-

Part#: 14359324 Qty: 2

131119807410
WASHER
$0.39

Part#: 11198074 Qty: 10$0.39

141897781
JOINT

Part#: 189778 Qty: 1

151559961
BALL BEARING

Part#: 155996 Qty: 1

161775971
COMPENSATOR RING

Part#: 177597 Qty: 1

17110672761
SEEGER RING

Part#: 11067276 Qty: 1

181212761
GASKET
$25.82

Part#: 121276 Qty: 1$25.82

191775961
COMPENSATOR RING

Part#: 177596 Qty: 1

20113810761
SEEGER RING

Part#: 11381076 Qty: 1

211862722
O-RING
$0.89

Part#: 186272 Qty: 2$0.89

221961041
WATER INLET COVER

Part#: 196104 Qty: 1

231541911
GASKET
$1.92

Part#: 154191 Qty: 1$1.92

24144322243
SCREW -M6 X 22- -No longer supplied- -Replaced by 231619-
$0.25

Part#: 14432224 Qty: 3$0.25

242316193
SCREW -M6 X 22-
$0.43

Part#: 231619 Qty: 3$0.43

25111977743
WASHER -No longer supplied-
$0.49

Part#: 11197774 Qty: 3$0.49

262308871
THERMOSTAT COVER -No longer supplied- -Replaced by 218733-
$231.23

Part#: 230887 Qty: 1$231.23

262308771
THERMOSTAT COVER -No longer supplied- -Replaced by 222348-

Part#: 230877 Qty: 1

262308871
THERMOSTAT COVER -Applicable up to MY 06- -Applicable for USA, CDN- -Applicable until depletion-
$231.23

Part#: 230887 Qty: 1$231.23

262308871
THERMOSTAT COVER -Applicable up to MY 06- -Applicable for USA, CDN- -Applicable after depletion of 222348-
$231.23

Part#: 230887 Qty: 1$231.23

262246071
THERMOSTAT COVER -Applicable from MY 06- -Applicable for USA, CDN- -Applicable until depletion-

Part#: 224607 Qty: 1

262308871
THERMOSTAT COVER -Applicable from MY 06- -Applicable for USA, CDN- -Applicable after depletion of 224607-
$231.23

Part#: 230887 Qty: 1$231.23

27143053243
SCREW

Part#: 14305324 Qty: 3

28111977743
WASHER
$0.49

Part#: 11197774 Qty: 3$0.49

291378731
GASKET
$7.55

Part#: 137873 Qty: 1$7.55

301801372
TEMPERATURE SENSOR
$38.94

Part#: 180137 Qty: 2$38.94

31102984602
GASKET
$1.00

Part#: 10298460 Qty: 2$1.00

322401691
FLANGE AND PIPE REPLACEMENT KIT
$721.54

Part#: 240169 Qty: 1$721.54

331519141
GASKET
$2.29

Part#: 151914 Qty: 1$2.29

341495362
GASKET
$2.95

Part#: 149536 Qty: 2$2.95

352314141
RUBBER COVER
$56.90

Part#: 231414 Qty: 1$56.90

361536281
GASKET
$1.25

Part#: 153628 Qty: 1$1.25

37144322246
SCREW -M6 X 22- -No longer supplied- -Replaced by 231619-
$0.25

Part#: 14432224 Qty: 6$0.25

372316196
SCREW -M6 X 22-
$0.43

Part#: 231619 Qty: 6$0.43

38111977746
WASHER -No longer supplied-
$0.49

Part#: 11197774 Qty: 6$0.49
