Table 104

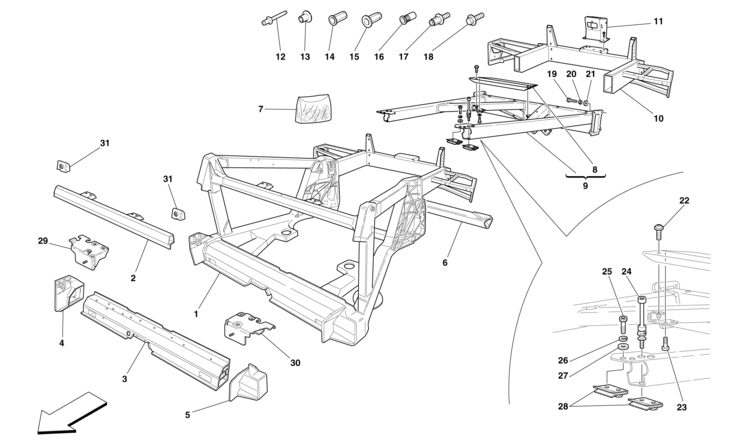

Table 104 - CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS

Ref.Part#Qty.DescriptionPrice
1688869111
COMPLETE REAR FRAME -Request SAT authorisation- -Not for USA, CDN-

Part#: 68886911 Qty: 1

1694143111
COMPLETE REAR FRAME -Request SAT authorisation- -Applicable for USA, CDN-

Part#: 69414311 Qty: 1

29852116821
COMPLETE PARCEL SHELF CROSS MEMBER

Part#: 985211682 Qty: 1

3688870111
REAR CROSS MEMBER -Request SAT authorisation-

Part#: 68887011 Qty: 1

49851999841
RH LOWER REAR CASTING -Applicable until depletion-

Part#: 985199984 Qty: 1

49852340991
RH LOWER REAR CASTING -Applicable after depletion of 985199984-

Part#: 985234099 Qty: 1

59851999831
LH LOWER REAR CASTING -Applicable until depletion-

Part#: 985199983 Qty: 1

59852340981
LH LOWER REAR CASTING -Applicable after depletion of 985199983-

Part#: 985234098 Qty: 1

62079911
COMPLETE LOWER CROSS MEMBER -Request SAT authorisation-

Part#: 207991 Qty: 1

7700009501
REPAIR INSERTS KIT

Part#: 70000950 Qty: 1

89852086101
CROSS MEMBER

Part#: 985208610 Qty: 1

9688871111
COMPLETE REAR MOBILE FRAME

Part#: 68887111 Qty: 1

10688872111
COMPLETE REAR FRAME -Request SAT authorisation-

Part#: 68887211 Qty: 1

11681524111
ENGINE COMPARTMENT LID LOCKING BRACKET

Part#: 68152411 Qty: 1

12146428910
POP RIVET -L. 14 mm-

Part#: 14642891

13651338000
SELF-PIERCING RIVET -L. 6.4 mm-
$0.27

Part#: 65133800$0.27

14156242110
HEXAGONAL RIVET -M4-

Part#: 15624211

14151804110
HEXAGONAL BLIND RIVET

Part#: 15180411

14156245110
HEXAGONAL RIVET -M8-

Part#: 15624511

14156244110
HEXAGONAL RIVET -M6- -No longer supplied- -Replaced by 248146-

Part#: 15624411

142481460
HEXAGONAL RIVET -M6-

Part#: 248146

14156243110
HEXAGONAL RIVET -M5-

Part#: 15624311

15651512000
RIVET -M6-

Part#: 65151200

161661010
KNURLED RIVET -M4-

Part#: 166101

16651350000
KNURLED RIVET -M8-

Part#: 65135000

16659304000
KNURLED RIVET -M6-

Part#: 65930400

16653198000
NUT KNURLED RIVET -M5-

Part#: 65319800

16608534000
RIVET

Part#: 60853400

17650654000
HEXAGONAL HEAD STUD BOLT -M6-

Part#: 65065400

18138367710
SCREW

Part#: 13836771

19143063748
SCREW
$2.10

Part#: 14306374 Qty: 8$2.10

201274968
WASHER
$0.50

Part#: 127496 Qty: 8$0.50

21105196018
WASHER

Part#: 10519601 Qty: 8

22629409002
SCREW
$2.50

Part#: 62940900 Qty: 2$2.50

23629409004
SCREW
$2.50

Part#: 62940900 Qty: 4$2.50

241835544
COMPLETE SCREW
$13.50

Part#: 183554 Qty: 4$13.50

25130287344
SCREW
$1.49

Part#: 13028734 Qty: 4$1.49

261274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50

27105196014
WASHER

Part#: 10519601 Qty: 4

289851792682
LH BRACKET

Part#: 985179268 Qty: 2

289851792692
RH BRACKET

Part#: 985179269 Qty: 2

29676078111
RH LOWER BRACKET

Part#: 67607811 Qty: 1

30676079111
LH LOWER BRACKET

Part#: 67607911 Qty: 1

31676082112
REAR BRACKET

Part#: 67608211 Qty: 2
