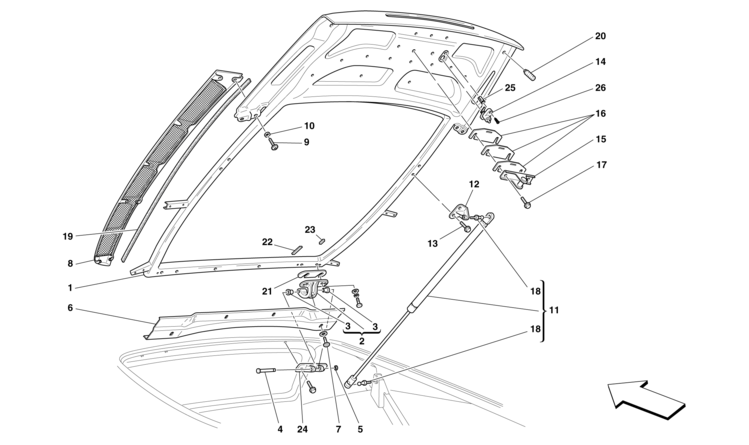

| Ref. | Part# | Qty. | Description | Price |
|---|
| 1 | 67767511 | 1 | PRESSED REAR LID | | | |
Part#: 67767511 Qty: 1 |
| 2 | 64877500 | 1 | RH MOBILE HINGE | | | |
Part#: 64877500 Qty: 1 |
| 2 | 64877600 | 1 | LH MOBILE HINGE | | | |
Part#: 64877600 Qty: 1 |
| 3 | 62825300 | 4 | HINGE BUSHING | $48.70 | | |
Part#: 62825300 Qty: 4$48.70 |
| 4 | 64807100 | 2 | PIN | | | |
Part#: 64807100 Qty: 2 |
| 5 | 11087974 | 2 | SNAP RING | $0.95 | | |
Part#: 11087974 Qty: 2$0.95 |
| 6 | 65398800 | 1 | FRONT LID CHANNEL | | | |
Part#: 65398800 Qty: 1 |
| 7 | 65864100 | 4 | SCREW | $2.00 | | |
Part#: 65864100 Qty: 4$2.00 |
| 8 | 68075100 | 1 | LH GRILLE -Grey- | | | |
Part#: 68075100 Qty: 1 |
| 8 | 68997900 | 1 | LH GRILLE -Black- | | | |
Part#: 68997900 Qty: 1 |
| 8 | 68501000 | 1 | LH GRILLE -Carbon version- | | | |
Part#: 68501000 Qty: 1 |
| 8 | 68075000 | 1 | RH GRILLE -Grey- | | | |
Part#: 68075000 Qty: 1 |
| 8 | 68997800 | 1 | RH GRILLE -Black- | | | |
Part#: 68997800 Qty: 1 |
| 8 | 68500900 | 1 | RH GRILLE -Carbon version- | | | |
Part#: 68500900 Qty: 1 |
| 9 | 65864100 | 16 | SCREW -Standard- | $2.00 | | |
Part#: 65864100 Qty: 16$2.00 |
| 9 | 168133 | 16 | SCREW -For carbon fibre grille- | $1.95 | | |
Part#: 168133 Qty: 16$1.95 |
| 10 | 12644478 | 16 | WASHER | | | |
Part#: 12644478 Qty: 16 |
| 11 | 65855000 | 2 | GAS STRUT | $80.47 | | |
Part#: 65855000 Qty: 2$80.47 |
| 12 | 65526300 | 2 | BRACKET | | | |
Part#: 65526300 Qty: 2 |
| 13 | 16286024 | 4 | SCREW | | | |
Part#: 16286024 Qty: 4 |
| 14 | 143331 | 1 | THIRD STOP LIGHT MOBILE CONTACT | $12.18 | | |
Part#: 143331 Qty: 1$12.18 |
| 15 | 64867900 | 1 | LID STRIKER PLATE | | | |
Part#: 64867900 Qty: 1 |
| 16 | 65524800 | 4 | ADJUSTMENT PLATE -Installed if necessary- | | | |
Part#: 65524800 Qty: 4 |
| 17 | 16286027 | 2 | SCREW | | | |
Part#: 16286027 Qty: 2 |
| 18 | 65939900 | 2 | PIN | | | |
Part#: 65939900 Qty: 2 |
| 19 | 65979200 | 2 | GASKET | | | |
Part#: 65979200 Qty: 2 |
| 20 | 62167600 | 2 | VIBRATION DAMPER | $4.01 | | |
Part#: 62167600 Qty: 2$4.01 |
| 21 | 66073100 | 2 | SHIM | $4.75 | | |
Part#: 66073100 Qty: 2$4.75 |
| 22 | 65714600 | 4 | SHIM | | | |
Part#: 65714600 Qty: 4 |
| 23 | 63023300 | 2 | SHIM | $0.72 | | |
Part#: 63023300 Qty: 2$0.72 |
| 24 | 64806700 | 1 | RH FIXED HINGE | | | |
Part#: 64806700 Qty: 1 |
| 24 | 64806800 | 1 | LH FIXED HINGE | | | |
Part#: 64806800 Qty: 1 |
| 25 | 14115380 | 1 | BLOCK | | | |
Part#: 14115380 Qty: 1 |
| 26 | 16082401 | 1 | SCREW | | | |
Part#: 16082401 Qty: 1 |
