Table 38

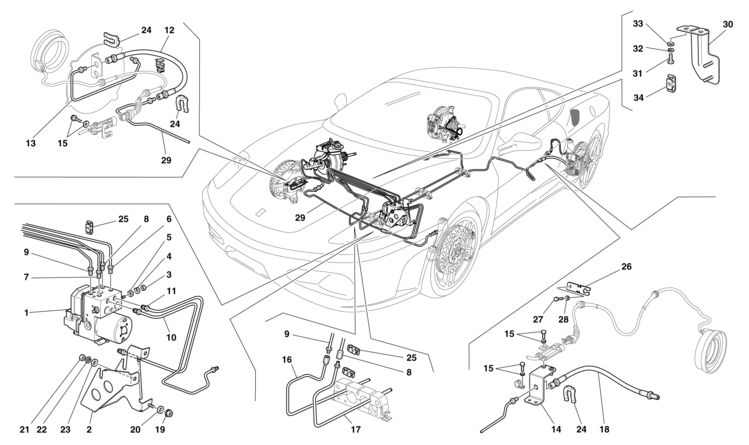

Table 38 - BRAKE SYSTEM -Applicable for GD

Ref.Part#Qty.DescriptionPrice
11946081
ABS/ASR HYDRAULIC UNIT/ECU -Applicable for GD- -Applicable up to Ass. No. 61536-

Part#: 194608 Qty: 1

12212521
ABS/ASR HYDRAULIC UNIT/ECU -Applicable for GD- -Applicable from Ass. No. 61537-

Part#: 221252 Qty: 1

22109301
ECU MOUNTING BRACKET -Applicable for GD-

Part#: 210930 Qty: 1

3161008142
NUT -Applicable for GD-
$0.45

Part#: 16100814 Qty: 2$0.45

41274962
WASHER -Applicable for GD-
$0.50

Part#: 127496 Qty: 2$0.50

5126385242
WASHER -Applicable for GD-

Part#: 12638524 Qty: 2

62098441
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT -Applicable for GD- -No longer supplied- -Replaced by 219886-

Part#: 209844 Qty: 1

62198861
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT -Applicable for GD-

Part#: 219886 Qty: 1

72098431
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT -Applicable for GD- -No longer supplied- -Replaced by 219885-

Part#: 209843 Qty: 1

72198851
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT -Applicable for GD-

Part#: 219885 Qty: 1

82098451
PIPE FROM ECU TO LH INTERMEDIATE PIPE -Applicable for GD-

Part#: 209845 Qty: 1

92098461
PIPE FROM ECU TO RH INTERMEDIATE PIPE -Applicable for GD-

Part#: 209846 Qty: 1

102098481
PIPE FROM ECU TO LH FRONT BRAKE PIPE -Applicable for GD-

Part#: 209848 Qty: 1

112098471
PIPE FROM ECU TO JUNCTION PIPE -Applicable for GD-

Part#: 209847 Qty: 1

121163732
FRONT FLEXIBLE TUBE -Applicable for GD- -Applicable until depletion-

Part#: 116373 Qty: 2

122717122
HOSE -Applicable for GD- -Applicable after depletion of 116373-

Part#: 271712 Qty: 2

131738061
FRONT RH BRAKE PIPE -Applicable for GD-

Part#: 173806 Qty: 1

132003241
FRONT RH BRAKE PIPE -Version with CCM brakes- -Applicable for GD-

Part#: 200324 Qty: 1

131738051
FRONT LH BRAKE PIPE -Applicable for GD-

Part#: 173805 Qty: 1

132003251
FRONT LH BRAKE PIPE -Version with CCM brakes- -Applicable for GD-

Part#: 200325 Qty: 1

141852832
REAR MOUNTING -Applicable for GD-

Part#: 185283 Qty: 2

15116257248
SCREW WITH WASHER -Applicable for GD-

Part#: 11625724 Qty: 8

162050931
PIPE TO REAR RH HOSE -Applicable for GD-

Part#: 205093 Qty: 1

172050941
TUBE TO REAR LH HOSE -Applicable for GD-

Part#: 205094 Qty: 1

181181002
REAR FLEXIBLE TUBE -Applicable for GD- -Applicable until depletion-

Part#: 118100 Qty: 2

182717122
HOSE -Applicable for GD- -Applicable after depletion of 118100-

Part#: 271712 Qty: 2

191011391
NUT -Applicable for GD-
$1.90

Part#: 101139 Qty: 1$1.90

20126385241
WASHER -Applicable for GD-

Part#: 12638524 Qty: 1

21161008142
NUT -Applicable for GD-
$0.45

Part#: 16100814 Qty: 2$0.45

221274962
WASHER -Applicable for GD-
$0.50

Part#: 127496 Qty: 2$0.50

23126385242
WASHER -Applicable for GD-

Part#: 12638524 Qty: 2

241163748
CLIP -Applicable for GD-
$3.92

Part#: 116374 Qty: 8$3.92

251694764
CLIP -Applicable for GD-

Part#: 169476 Qty: 4

261789382
CABLE MOUNTING -Applicable for GD-

Part#: 178938 Qty: 2

27109020242
SCREW -Applicable for GD-
$0.90

Part#: 10902024 Qty: 2$0.90

28126053742
WASHER -Applicable for GD- -Applicable until depletion-
$0.22

Part#: 12605374 Qty: 2$0.22

28126012742
WASHER -Applicable for GD- -Applicable after depletion of 12605374-
$1.00

Part#: 12601274 Qty: 2$1.00

292098511
PIPE JUNCTION TO RH FRONT BREAK PIPE -Applicable for GD-

Part#: 209851 Qty: 1

302108961
BRAKE PIPE MOUNTING BRACKET -Applicable for GD-

Part#: 210896 Qty: 1

31109024242
SCREW -Applicable for GD-
$1.00

Part#: 10902424 Qty: 2$1.00

321274942
WASHER -Applicable for GD-
$0.65

Part#: 127494 Qty: 2$0.65

33126444242
WASHER -Applicable for GD-
$0.50

Part#: 12644424 Qty: 2$0.50

341694761
CLIP -Applicable for GD-

Part#: 169476 Qty: 1
