Ferrari Philadelphia Parts

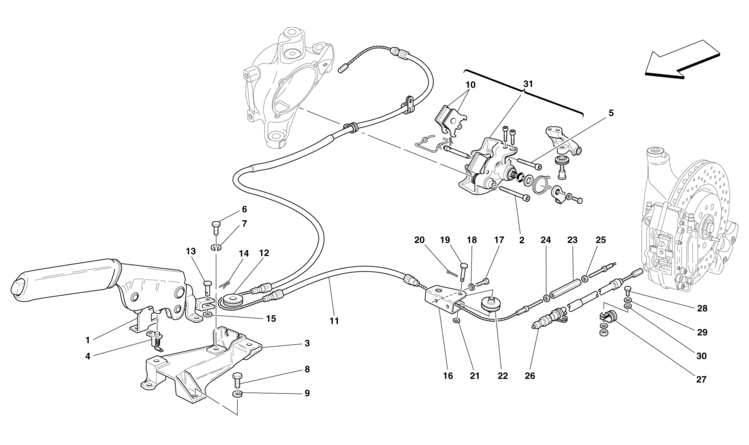

Table 40

Table 40 - PARKING BRAKE CONTROL

Ref.Part#Qty.DescriptionPrice
1807691..1
PARKING BRAKE LEVER -Standard-

Part#: 807691.. Qty: 1

1810581..1
PARKING BRAKE LEVER -Reflective leather-

Part#: 810581.. Qty: 1

2143084241
SCREW
$3.75

Part#: 14308424 Qty: 1$3.75

32076551
ARM MOUNTING BRACKET

Part#: 207655 Qty: 1

41761181
MICROSWITCH
$81.32

Part#: 176118 Qty: 1$81.32

5143089241
SCREW

Part#: 14308924 Qty: 1

6160432242
SCREW

Part#: 16043224 Qty: 2

71274962
WASHER
$0.50

Part#: 127496 Qty: 2$0.50

8160434342
SCREW
$0.50

Part#: 16043434 Qty: 2$0.50

91274962
WASHER
$0.50

Part#: 127496 Qty: 2$0.50

10700009371
SET OF PADS FOR PARKING BRAKE WITH SPRING -Cast iron version-
$500.38

Part#: 70000937 Qty: 1$500.38

10700009691
SET OF PADS FOR PARKING BRAKE WITH SPRING -Version with CCM brakes- -Applicable up to Ass. No. 83384- -Applicable until depletion-

Part#: 70000969 Qty: 1

10700016141
SET OF PADS FOR PARKING BRAKE WITH SPRING -Version with CCM brakes- -Applicable from Ass. No. 83385- -Applicable after depletion of 70000969-
$423.61

Part#: 70001614 Qty: 1$423.61

112006371
RH REAR CABLE -No longer supplied- -Replaced by 256606-

Part#: 200637 Qty: 1

112566061
RH REAR CABLE -Replace as a pair with LH rear cable-
$397.56

Part#: 256606 Qty: 1$397.56

121220911
CABLE PULLEY

Part#: 122091 Qty: 1

13100508141
FLAT-HEAD PIN

Part#: 10050814 Qty: 1

14107342081
SPLIT PIN
$0.03

Part#: 10734208 Qty: 1$0.03

15144965241
WASHER
$0.17

Part#: 14496524 Qty: 1$0.17

161762451
CABLE FASTENER BRACKET

Part#: 176245 Qty: 1

17109020242
SCREW
$0.90

Part#: 10902024 Qty: 2$0.90

18126053742
WASHER -Applicable until depletion-
$0.22

Part#: 12605374 Qty: 2$0.22

18126012742
WASHER -Applicable after depletion of 12605374-
$1.00

Part#: 12601274 Qty: 2$1.00

19100412141
FLAT-HEAD PIN

Part#: 10041214 Qty: 1

20107342081
SPLIT PIN
$0.03

Part#: 10734208 Qty: 1$0.03

21144965241
WASHER
$0.17

Part#: 14496524 Qty: 1$0.17

221762611
CABLE PULLEY

Part#: 176261 Qty: 1

23100910141
SLUG TUNER
$112.00

Part#: 10091014 Qty: 1$112.00

24107259141
NUT
$2.25

Part#: 10725914 Qty: 1$2.25

25107273141
NUT
$9.95

Part#: 10727314 Qty: 1$9.95

262100271
LH REAR CABLE -No longer supplied- -Replaced by 256605-

Part#: 210027 Qty: 1

262566051
LH REAR CABLE -Replace as a pair with RH rear cable-
$397.56

Part#: 256605 Qty: 1$397.56

27104413905
BRACKET WITH SHEATH
$0.46

Part#: 10441390 Qty: 5$0.46

28109022243
SCREW
$0.95

Part#: 10902224 Qty: 3$0.95

29126053743
WASHER -Applicable until depletion-
$0.22

Part#: 12605374 Qty: 3$0.22

29126012743
WASHER -Applicable after depletion of 12605374-
$1.00

Part#: 12601274 Qty: 3$1.00

30126444243
WASHER
$0.50

Part#: 12644424 Qty: 3$0.50

311759211
RH CALLIPER FOR HANDBRAKE -Standard- -Cast iron version- -Applicable up to Ass. No. 68250- -Applicable until depletion-
$935.55

Part#: 175921 Qty: 1$935.55

312280221
RH CALLIPER FOR HANDBRAKE -Standard- -Cast iron version- -Applicable from Ass. No. 68251- -Applicable after depletion of 175921-
$959.48

Part#: 228022 Qty: 1$959.48

311964001
RH CALLIPER FOR HANDBRAKE -Optional- -Version with CCM brakes- -Applicable up to Ass. No. 68250- -Applicable until depletion-

Part#: 196400 Qty: 1

312280461
RH CALLIPER FOR HANDBRAKE -Optional- -Version with CCM brakes- -Applicable from Ass. No. 68251- -Applicable after depletion of 196400-

Part#: 228046 Qty: 1

311759221
LH CALLIPER FOR HANDBRAKE -Standard- -Cast iron version- -Applicable up to Ass. No. 68250- -Applicable until depletion-

Part#: 175922 Qty: 1

312280211
LH CALLIPER FOR HANDBRAKE -Standard- -Cast iron version- -Applicable from Ass. No. 68251- -Applicable after depletion of 175922-

Part#: 228021 Qty: 1

311964011
LH CALLIPER FOR HANDBRAKE -Optional- -Version with CCM brakes- -Applicable up to Ass. No. 68250- -Applicable until depletion-

Part#: 196401 Qty: 1

312280451
LH CALLIPER FOR HANDBRAKE -Optional- -Version with CCM brakes- -Applicable from Ass. No. 68251- -Applicable after depletion of 196401-
$978.67

Part#: 228045 Qty: 1$978.67
