Ferrari Philadelphia Parts

Table 100

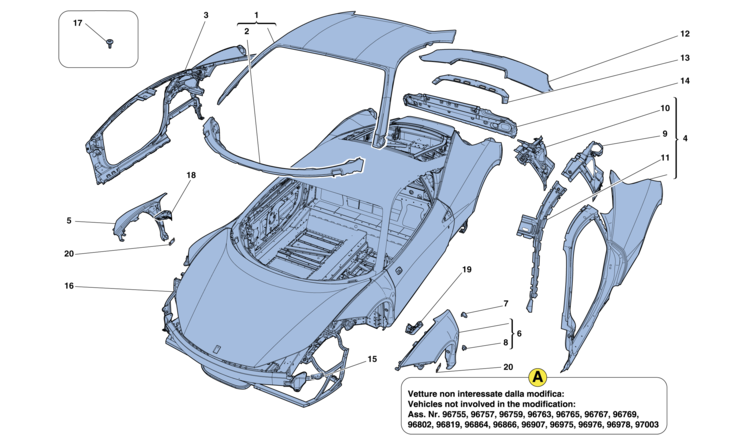

Table 100 - BODYSHELL - EXTERNAL TRIM

Ref.Part#Qty.DescriptionPrice
1812956111
ROOF TRIM -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 81295611 Qty: 1

1838186111
ROOF TRIM -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750- -Applicable after depletion of 81295611-
$8662.55

Part#: 83818611 Qty: 1$8662.55

1832996111
ROOF TRIM -Applicable for satellite antenna- -Applicable for USA, CDN- -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 83299611 Qty: 1

1839536111
ROOF TRIM -Applicable for satellite antenna- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable for USA, CDN- -Applicable from Ass. No. 96750- -Applicable after depletion of 83299611-

Part#: 83953611 Qty: 1

2814081111
LOWER ROOF CROSS MEMBER -Applicable up to Ass. No. 96749-

Part#: 81408111 Qty: 1

2837404111
WINDSCREEN CROSS-MEMBER UPPER COVER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750-

Part#: 83740411 Qty: 1

3812881111
RH FLANK -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 81288111 Qty: 1

3838159111
RH FLANK -See note A for Ass. Numbers of vehicles not affected by modification- -Also order RH front endpiece 83814500, table 103 ref. 6 for vehicles up to ass.ly no. 96749- -Applicable from Ass. No. 96750- -Applicable after depletion of 81288111-
$16248.70

Part#: 83815911 Qty: 1$16248.70

4812882111
LH FLANK -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 81288211 Qty: 1

4838160111
LH FLANK -See note A for Ass. Numbers of vehicles not affected by modification- -Also order LH front endpiece 83814600, table 103 ref. 7 for vehicles up to ass.ly no. 96749- -Applicable from Ass. No. 96750- -Applicable after depletion of 81288211-
$16573.67

Part#: 83816011 Qty: 1$16573.67

5812887111
FRONT RH FENDER -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 81288711 Qty: 1

5838110111
FRONT RH FENDER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 116435- -Applicable after depletion of 81288711-
$3378.39

Part#: 83811011 Qty: 1$3378.39

5856171111
FRONT RH FENDER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 116436-

Part#: 85617111 Qty: 1

5827616111
FRONT RH FENDER -Shield badge- -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82761611 Qty: 1

5840823111
FRONT RH FENDER -Shield badge- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 116435- -Applicable after depletion of 82761611-

Part#: 84082311 Qty: 1

5856173111
FRONT RH FENDER -Shield badge- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 116436-

Part#: 85617311 Qty: 1

6812896111
FRONT LH FENDER -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 81289611 Qty: 1

6838137111
FRONT LH FENDER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 116435- -Applicable after depletion of 81289611-
$3378.39

Part#: 83813711 Qty: 1$3378.39

6856175111
FRONT LH FENDER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 116436-

Part#: 85617511 Qty: 1

6827617111
FRONT LH FENDER -Shield badge- -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82761711 Qty: 1

6840820111
FRONT LH FENDER -Shield badge- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 116435- -Applicable after depletion of 82761711-
$3757.92

Part#: 84082011 Qty: 1$3757.92

6856177111
FRONT LH FENDER -Shield badge- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 116436-

Part#: 85617711 Qty: 1

7815430001
UPPER LH BRACKET

Part#: 81543000 Qty: 1

7815429001
UPPER RH BRACKET

Part#: 81542900 Qty: 1

8826615001
LOWER LH BRACKET

Part#: 82661500 Qty: 1

8826614001
LOWER RH BRACKET

Part#: 82661400 Qty: 1

9820306001
REAR LH SUBFRAME -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82030600 Qty: 1

9838771001
REAR LH SUBFRAME -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750- -Applicable after depletion of 82030600-

Part#: 83877100 Qty: 1

9820302001
REAR RH SUBFRAME -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82030200 Qty: 1

9838772001
REAR RH SUBFRAME -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750- -Applicable after depletion of 82030200-

Part#: 83877200 Qty: 1

10820309001
LH NODE SUBFRAME -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82030900 Qty: 1

10838753001
LH NODE SUBFRAME -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750- -Applicable after depletion of 82030900-

Part#: 83875300 Qty: 1

10820308001
RH NODE SUBFRAME -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82030800 Qty: 1

10838754001
RH NODE SUBFRAME -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750- -Applicable after depletion of 82030800-

Part#: 83875400 Qty: 1

11813002001
LH PILLAR SUBFRAME

Part#: 81300200 Qty: 1

11813000001
RH PILLAR SUBFRAME

Part#: 81300000 Qty: 1

12828631111
REAR SPOILER -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82863111 Qty: 1

12838532111
REAR SPOILER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750- -Applicable after depletion of 82863111-

Part#: 83853211 Qty: 1

12831381111
REAR SPOILER -Applicable for SDARS antenna- -Applicable for USA, CDN- -No longer supplied- -Replaced by 82863111-

Part#: 83138111 Qty: 1

13824568001
REAR BUMPER MOUNTING CROSS MEMBER -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82456800 Qty: 1

13838182001
REAR BUMPER MOUNTING CROSS MEMBER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750- -Applicable after depletion of 82456800-

Part#: 83818200 Qty: 1

14812957111
REAR SCREEN BULKHEAD SUBFRAME -Standard-

Part#: 81295711 Qty: 1

14830770111
REAR SCREEN BULKHEAD SUBFRAME -Hi-Fi-

Part#: 83077011 Qty: 1

14830604111
REAR SCREEN BULKHEAD SUBFRAME -4-point seat harness-

Part#: 83060411 Qty: 1

15825341001
LH HEADLIGHT FASTENER BRACKET

Part#: 82534100 Qty: 1

15825340001
RH HEADLIGHT FASTENER BRACKET

Part#: 82534000 Qty: 1

161
COMPLETE BODYSHELL -Only to specific order by fax or e-mail, specifying vehicle serial No.-

Part#: Qty: 1

17811265000
RIVET -3.9 x 5.5-

Part#: 81126500

17811266000
RIVET -3.9 x 7-

Part#: 81126600

17811267000
RIVET -3.9 x 7-
$0.35

Part#: 81126700$0.35

17811268000
RIVET -3.9 x 8-

Part#: 81126800

17811269000
RIVET -4.8 x 7.5-

Part#: 81126900

17823987000
RIVET -4.8 x 9-

Part#: 82398700

18825338001
RH FRONT FENDER REINFORCEMENT -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82533800 Qty: 1

18838520001
RH FRONT FENDER REINFORCEMENT -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 116435- -Applicable after depletion of 82533800-

Part#: 83852000 Qty: 1

19825339001
LH FRONT FENDER REINFORCEMENT -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 82533900 Qty: 1

19838521001
LH FRONT FENDER REINFORCEMENT -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750 up to Ass. No. 116435- -Applicable after depletion of 82533900-

Part#: 83852100 Qty: 1

20826754002
FRONT FENDER SPACER KIT

Part#: 82675400 Qty: 2
