Table 112

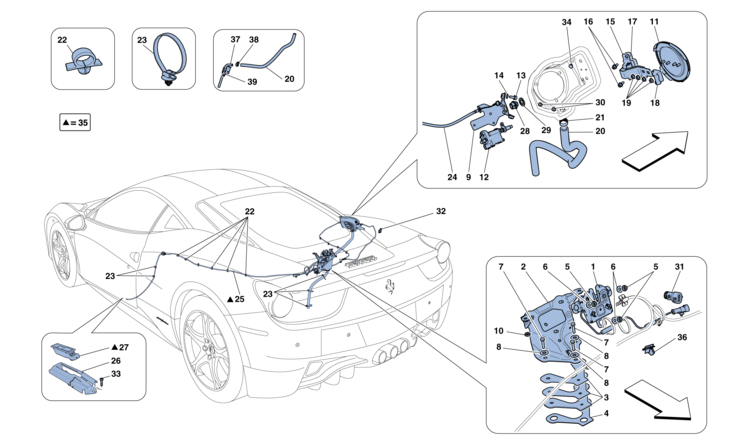

Table 112 - ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS

Ref.Part#Qty.DescriptionPrice
1812963001
ENGINE COMPARTMENT LID LOCK -Applicable up to Ass. No. 98332-

Part#: 81296300 Qty: 1

1840761001
ENGINE COMPARTMENT LID LOCK -Applicable from Ass. No. 98333-

Part#: 84076100 Qty: 1

2829140001
LOCK FASTENER BRACKET -Applicable until depletion-

Part#: 82914000 Qty: 1

2846763001
LOCK FASTENER BRACKET -Applicable after depletion of 82914000-

Part#: 84676300 Qty: 1

3821121001
SHIM KIT

Part#: 82112100 Qty: 1

4816576001
SHIM

Part#: 81657600 Qty: 1

5140592113
NUT

Part#: 14059211 Qty: 3

6126476013
WASHER

Part#: 12647601 Qty: 3

7109026243
SCREW -No longer supplied- -Replaced by 16286224-

Part#: 10902624 Qty: 3

7162862243
SCREW

Part#: 16286224 Qty: 3

8126477243
WASHER -No longer supplied-

Part#: 12647724 Qty: 3

9828984001
ACTUATOR FASTENER BRACKET

Part#: 82898400 Qty: 1

10140980102
NUT

Part#: 14098010 Qty: 2

11816184111
FUEL FILLER FLAP

Part#: 81618411 Qty: 1

12699185001
COMPL. ACTUATOR
$65.23

Part#: 69918500 Qty: 1$65.23

13115662272
SCREW -No longer supplied- -Replaced by 15689601-

Part#: 11566227 Qty: 2

13156896012
SCREW

Part#: 15689601 Qty: 2

14126011742
WASHER -No longer supplied-
$0.26

Part#: 12601174 Qty: 2$0.26

15822490001
FUEL FILLER FLAP HINGE

Part#: 82249000 Qty: 1

16115662272
SCREW

Part#: 11566227 Qty: 2

17816194001
SPACER -Installed if necessary-

Part#: 81619400 Qty: 1

18822494001
STRIKER PLATE

Part#: 82249400 Qty: 1

19140591114
NUT

Part#: 14059111 Qty: 4

20823378001
RUBBER PIPE -Applicable until depletion-

Part#: 82337800 Qty: 1

20842012001
RUBBER PIPE -Applicable after depletion of 82337800- -No longer supplied- -Replaced by 85430400-

Part#: 84201200 Qty: 1

20854304001
RUBBER PIPE

Part#: 85430400 Qty: 1

211614901
COLLAR
$2.25

Part#: 161490 Qty: 1$2.25

221456948014
CLIP -No longer supplied-
$0.95

Part#: 14569480 Qty: 14$0.95

22145698805
CLIP
$0.70

Part#: 14569880 Qty: 5$0.70

232178545
CLIP
$1.00

Part#: 217854 Qty: 5$1.00

24825758001
CABLE

Part#: 82575800 Qty: 1

25831327001
ENGINE COMPARTMENT LID RELEASE BOWDEN CABLE -Applicable for GD- -Applicable up to Ass. No. 95135-

Part#: 83132700 Qty: 1

25829531001
ENGINE COMPARTMENT LID RELEASE BOWDEN CABLE -Not for GD- -Applicable up to Ass. No. 92450-

Part#: 82953100 Qty: 1

26829266001
BRACKET FOR ENGINE COMPARTMENT LID HANDLE -Not for GD-

Part#: 82926600 Qty: 1

26830289001
BRACKET FOR ENGINE COMPARTMENT LID HANDLE -Applicable for GD-

Part#: 83028900 Qty: 1

27801762001
ENGINE COMPARTMENT LID HANDLE -Supplied with compl. handle 83401000 from Ass.ly No. 92451- -Not for GD- -Applicable up to Ass. No. 92450-

Part#: 80176200 Qty: 1

27801762001
ENGINE COMPARTMENT LID HANDLE -Supplied with compl. handle 83777200 from Ass.ly No. 95136- -Applicable for GD- -Applicable up to Ass. No. 95135-

Part#: 80176200 Qty: 1

28674858001
BUSH FOR ACTUATOR

Part#: 67485800 Qty: 1

29670676001
SEAL RING FOR BASE

Part#: 67067600 Qty: 1

30818023002
RUBBER PAD
$1.85

Part#: 81802300 Qty: 2$1.85

31838962001
2-WAY CONNECTOR COVER -Applicable up to Ass. No. 98332-

Part#: 83896200 Qty: 1

31840762001
3-WAY CONNECTOR COVER -Applicable from Ass. No. 98333-

Part#: 84076200 Qty: 1

321458551
RING CLAMP -No longer supplied- -Replaced by 10815787-
$0.39

Part#: 145855 Qty: 1$0.39

32108157871
RING CLAMP
$0.25

Part#: 10815787 Qty: 1$0.25

332316183
SCREW -M6 X 20-
$0.90

Part#: 231618 Qty: 3$0.90

34840773001
COVER

Part#: 84077300 Qty: 1

35837772001
HANDLE COMPLETE WITH CABLE -Applicable for GD- -Applicable from Ass. No. 95136-

Part#: 83777200 Qty: 1

35834010001
HANDLE COMPLETE WITH CABLE -Not for GD- -Applicable from Ass. No. 92451-

Part#: 83401000 Qty: 1

362047811
CLIP

Part#: 204781 Qty: 1

37842019001
COMPL. RIGID FUEL DRAIN PIPE

Part#: 84201900 Qty: 1

38134335701
COLLAR
$1.50

Part#: 13433570 Qty: 1$1.50

39116258241
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 1$1.49
