Ferrari Philadelphia Parts

Table 129

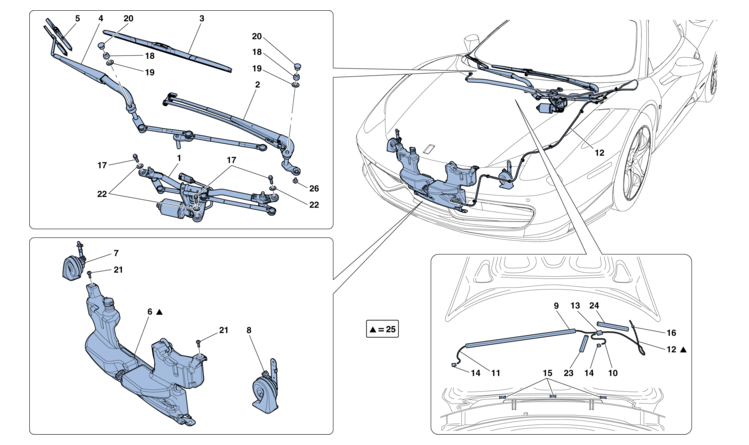

Table 129 - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

Ref.Part#Qty.DescriptionPrice
1815115001
COMPL. WINDSCREEN WIPER ASSEMBLY -Not for GD-

Part#: 81511500 Qty: 1

1829639001
COMPL. WINDSCREEN WIPER ASSEMBLY -Applicable for GD-

Part#: 82963900 Qty: 1

2815119001
DRIVER SIDE WINDSCREEN WIPER ARM -Not for GD-
$517.25

Part#: 81511900 Qty: 1$517.25

2829643001
DRIVER SIDE WINDSCREEN WIPER ARM -Applicable for GD-

Part#: 82964300 Qty: 1

3805349001
DRIVER SIDE WINDSCREEN WIPER BLADE -Not for GD-
$115.00

Part#: 80534900 Qty: 1$115.00

3805390001
DRIVER SIDE WINDSCREEN WIPER BLADE -Applicable for GD-

Part#: 80539000 Qty: 1

4815118001
PASSENGER SIDE WINDSCREEN WIPER ARM -Not for GD-
$251.17

Part#: 81511800 Qty: 1$251.17

4829642001
PASSENGER SIDE WINDSCREEN WIPER ARM -Applicable for GD-

Part#: 82964200 Qty: 1

5815116001
PASSENGER SIDE WINDSCREEN WIPER BLADE -Not for GD-
$72.00

Part#: 81511600 Qty: 1$72.00

5829640001
PASSENGER SIDE WINDSCREEN WIPER BLADE -Applicable for GD-

Part#: 82964000 Qty: 1

6817581001
WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR -Does not include pipe from valve to tank- -Applicable up to Ass. No. 120670- -Applicable until depletion-

Part#: 81758100 Qty: 1

72563561
RH HORN

Part#: 256356 Qty: 1

82563571
LH HORN

Part#: 256357 Qty: 1

9839827001
ANTI-VIBRATION RUBBER PIPE -L. 850 mm- -Applicable until depletion-

Part#: 83982700 Qty: 1

10830878001
PIPE -From valve to spray nozzle-

Part#: 83087800 Qty: 1

11830879001
PIPE -From valve to spray nozzle-

Part#: 83087900 Qty: 1

12830880001
PIPE -From valve to reservoir- -From Ass.ly No. 120671 or after depletion, supplied together with windscreen/headlight washer fluid reservoir 85267200- -Applicable up to Ass. No. 120670- -Applicable until depletion-

Part#: 83088000 Qty: 1

13829846001
CHECK VALVE
$9.88

Part#: 82984600 Qty: 1$9.88

14651910002
SPRAY NOZZLE
$7.50

Part#: 65191000 Qty: 2$7.50

15828897003
CLIP -No longer supplied-

Part#: 82889700 Qty: 3

16103962801
GROMMET

Part#: 10396280 Qty: 1

17116129343
SCREW -No longer supplied- -Replaced by 10902824-

Part#: 11612934 Qty: 3

17109028243
SCREW
$0.50

Part#: 10902824 Qty: 3$0.50

18107910212
NUT -No longer supplied- -Replaced by 10791011-

Part#: 10791021 Qty: 2

18107910112
NUT

Part#: 10791011 Qty: 2

19107305142
WASHER -No longer supplied- -Replaced by 12601474-
$0.89

Part#: 10730514 Qty: 2$0.89

19126014742
WASHER

Part#: 12601474 Qty: 2

20651909002
COVER -No longer supplied- -Replaced by 15811787-
$4.75

Part#: 65190900 Qty: 2$4.75

20158117872
PROTECTIVE CAP
$2.75

Part#: 15811787 Qty: 2$2.75

21808747002
SCREW -M6 X 22- -No longer supplied- -Replaced by 81045300-
$2.90

Part#: 80874700 Qty: 2$2.90

21810453002
SCREW
$0.75

Part#: 81045300 Qty: 2$0.75

22126012743
WASHER
$1.00

Part#: 12601274 Qty: 3$1.00

22126406043
WASHER

Part#: 12640604 Qty: 3

23839825001
ANTI-VIBRATION RUBBER PIPE -L. 100 mm-

Part#: 83982500 Qty: 1

24839826001
ANTI-VIBRATION RUBBER PIPE -L. 500 mm-

Part#: 83982600 Qty: 1

25852672001
WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR -Includes pipe from valve to tank- -Applicable from Ass. No. 120671- -Applicable after depletion of 81758100-
$707.96

Part#: 85267200 Qty: 1$707.96

26629409001
SCREW
$2.50

Part#: 62940900 Qty: 1$2.50
