Table 15

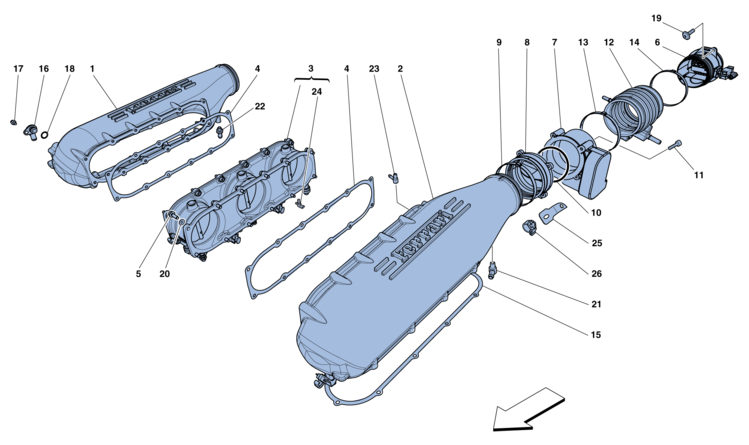

Table 15 - INTAKE MANIFOLD COVER

Ref.Part#Qty.DescriptionPrice
12545111
RH INTAKE PLENUM

Part#: 254511 Qty: 1

12725971
RH INTAKE PLENUM -Carbon-

Part#: 272597 Qty: 1

22545121
LH INTAKE PLENUM

Part#: 254512 Qty: 1

22725981
LH INTAKE PLENUM -Carbon-

Part#: 272598 Qty: 1

32593811
COMPL. CENTRAL COMPENSATOR BODY -No longer supplied- -Replaced by 263985-

Part#: 259381 Qty: 1

32639851
COMPL. CENTRAL COMPENSATOR BODY -Applicable up to engine No. 171042- -Applicable until depletion-

Part#: 263985 Qty: 1

32704921
COMPL. CENTRAL COMPENSATOR BODY -Applicable from engine No. 171043 up to engine No. 186782- -Applicable after depletion of 263985- -Applicable until depletion-

Part#: 270492 Qty: 1

32811921
COMPL. CENTRAL COMPENSATOR BODY -Applicable from engine No. 186783- -Applicable after depletion of 270492-

Part#: 281192 Qty: 1

42528922
PLENUM GASKET -Applicable up to engine No. 171042- -Applicable until depletion-

Part#: 252892 Qty: 2

42696702
PLENUM GASKET -Applicable from engine No. 171043- -Applicable after depletion of 252892-
$38.03

Part#: 269670 Qty: 2$38.03

523161824
SCREW -M6 X 20- -Not for version in carbon fibre-
$0.90

Part#: 231618 Qty: 24$0.90

522299824
SCREW -M6 X 25- -Applicable for version in carbon fibre-

Part#: 222998 Qty: 24

62450282
AIR FLOW METER
$551.31

Part#: 245028 Qty: 2$551.31

71799122
THROTTLE BODY
$1133.28

Part#: 179912 Qty: 2$1133.28

82402622
SHIM
$185.96

Part#: 240262 Qty: 2$185.96

91901512
RING CLAMP
$4.20

Part#: 190151 Qty: 2$4.20

101503022
GASKET
$3.50

Part#: 150302 Qty: 2$3.50

112316248
SCREW -M6 X 45-
$0.50

Part#: 231624 Qty: 8$0.50

122465981
LH CONNECTOR PIPE -Not for USA, CDN- -Applicable up to engine No. 177738- -Applicable until depletion-

Part#: 246598 Qty: 1

122728731
LH CONNECTOR PIPE -Not for USA, CDN- -Applicable from engine No. 177739- -Applicable after depletion of 246598-

Part#: 272873 Qty: 1

122472571
LH CONNECTOR PIPE -Applicable for USA, CDN- -Applicable up to engine No. 177738- -Applicable until depletion-

Part#: 247257 Qty: 1

122728751
LH CONNECTOR PIPE -Applicable for USA, CDN- -Applicable up to Ass. No. 118577- -Applicable from engine No. 177739- -Applicable after depletion of 247257- -Applicable until depletion-

Part#: 272875 Qty: 1

122822311
LH CONNECTOR PIPE -Applicable for USA, CDN- -Applicable from Ass. No. 118578- -Applicable after depletion of 272875-
$238.13

Part#: 282231 Qty: 1$238.13

122465961
RH CONNECTOR PIPE -Not for USA, CDN- -Applicable up to engine No. 177738- -Applicable until depletion-

Part#: 246596 Qty: 1

122728721
RH CONNECTOR PIPE -Not for USA, CDN- -Applicable from engine No. 177739- -Applicable after depletion of 246596-

Part#: 272872 Qty: 1

122472561
RH CONNECTOR PIPE -Applicable for USA, CDN- -Applicable up to engine No. 177738- -Applicable until depletion-

Part#: 247256 Qty: 1

122728741
RH CONNECTOR PIPE -Applicable for USA, CDN- -Applicable up to Ass. No. 118577- -Applicable from engine No. 177739- -Applicable after depletion of 247256- -Applicable until depletion-

Part#: 272874 Qty: 1

122822301
RH CONNECTOR PIPE -Applicable for USA, CDN- -Applicable from Ass. No. 118578- -Applicable after depletion of 272874-

Part#: 282230 Qty: 1

131800462
RING CLAMP
$2.95

Part#: 180046 Qty: 2$2.95

141779812
RING CLAMP -No longer supplied- -Replaced by 190151-
$2.25

Part#: 177981 Qty: 2$2.25

141901512
RING CLAMP
$4.20

Part#: 190151 Qty: 2$4.20

152528902
PLENUM-MANIFOLD GASKET
$31.62

Part#: 252890 Qty: 2$31.62

162432071
CONNECTOR

Part#: 243207 Qty: 1

172316161
SCREW -M6 X 14-
$1.75

Part#: 231616 Qty: 1$1.75

181234751
GASKET
$4.70

Part#: 123475 Qty: 1$4.70

192629344
SCREW -Applicable for standard filter box-

Part#: 262934 Qty: 4

191698144
SCREW -Applicable for carbon filter box-
$1.58

Part#: 169814 Qty: 4$1.58

201119777424
WASHER -Applicable for version in carbon fibre-
$0.49

Part#: 11197774 Qty: 24$0.49

212688772
CONNECTOR

Part#: 268877 Qty: 2

222688782
CONNECTOR
$14.82

Part#: 268878 Qty: 2$14.82

232688752
CONNECTOR

Part#: 268875 Qty: 2

242534842
SENSOR

Part#: 253484 Qty: 2

252498782
BRACKET

Part#: 249878 Qty: 2

261784302
CLIP
$1.00

Part#: 178430 Qty: 2$1.00
