Ferrari Philadelphia Parts

Table 7

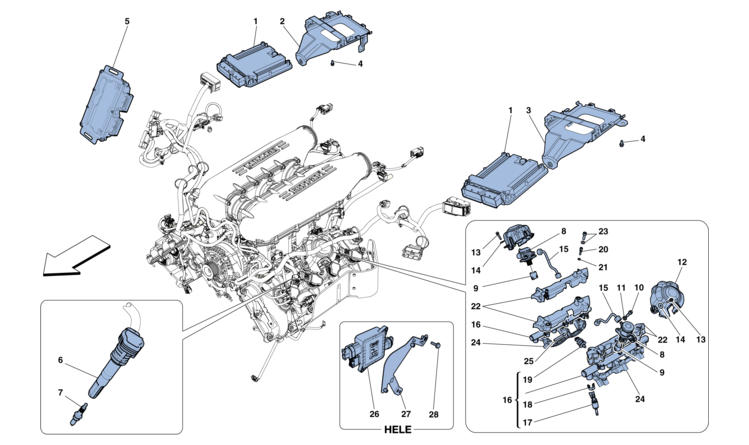

Table 7 - INJECTION - IGNITION SYSTEM

Ref.Part#Qty.DescriptionPrice
12423982
IGNITION ECU -Not for USA, CDN- -No longer supplied- -Replaced by 238263-

Part#: 242398 Qty: 2

12382632
IGNITION ECU -Unprogrammed-
$4417.10

Part#: 238263 Qty: 2$4417.10

22618381
RH BRACKET

Part#: 261838 Qty: 1

32618391
LH BRACKET

Part#: 261839 Qty: 1

42316166
SCREW -M6 X 14-
$1.75

Part#: 231616 Qty: 6$1.75

52625491
IONISING KNOCK SENSOR CONTROL UNIT -No longer supplied- -Replaced by 262550-

Part#: 262549 Qty: 1

52625501
IONISING KNOCK SENSOR CONTROL UNIT -Unprogrammed-

Part#: 262550 Qty: 1

62484068
IGNITION COIL -No longer supplied- -Replaced by 290850-

Part#: 248406 Qty: 8

62908508
IGNITION COIL
$222.89

Part#: 290850 Qty: 8$222.89

72547718
SPARK PLUG
$49.50

Part#: 254771 Qty: 8$49.50

82496552
FUEL PUMP -Applicable until depletion-

Part#: 249655 Qty: 2

82672352
FUEL PUMP -Applicable after depletion of 249655- -Applicable until depletion-

Part#: 267235 Qty: 2

82527042
FUEL PUMP -Applicable after depletion of 267235-

Part#: 252704 Qty: 2

92127972
CUP
$98.13

Part#: 212797 Qty: 2$98.13

10143053344
SCREW
$0.45

Part#: 14305334 Qty: 4$0.45

11126397244
WASHER
$0.50

Part#: 12639724 Qty: 4$0.50

122475372
SOUNDPROOFING COVER

Part#: 247537 Qty: 2

132316214
SCREW -M6 X 30-
$0.54

Part#: 231621 Qty: 4$0.54

14126477014
WASHER
$0.07

Part#: 12647701 Qty: 4$0.07

152476742
PIPE
$644.40

Part#: 247674 Qty: 2$644.40

162507772
COMPL. INJECTOR PIPE
$4897.87

Part#: 250777 Qty: 2$4897.87

172507764
ELECTRO-INJECTOR -Pressure sensor side- -Supplied together with COMPL. INJECTION PIPE pos.16- -No longer supplied-
$172.41

Part#: 250776 Qty: 4$172.41

172507754
ELECTRO-INJECTOR -Opposite pressure sensor side- -Supplied together with COMPL. INJECTION PIPE pos.16- -No longer supplied-
$172.41

Part#: 250775 Qty: 4$172.41

182319268
CLIP -Supplied together with COMPL. INJECTION PIPE pos.16- -No longer supplied-

Part#: 231926 Qty: 8

192476942
PRESSURE SENSOR -Supplied together with COMPL. INJECTION PIPE pos.16- -No longer supplied-
$0.00

Part#: 247694 Qty: 2$0.00

202144124
STUD BOLT

Part#: 214412 Qty: 4

21111943744
WASHER

Part#: 11194374 Qty: 4

222563222
INJECTOR COVER

Part#: 256322 Qty: 2

232316184
SCREW -M6 X 20-
$0.90

Part#: 231618 Qty: 4$0.90

242399462
FUEL RAIL MOUNTING

Part#: 239946 Qty: 2

2523162412
SCREW -M6 X 45-
$0.50

Part#: 231624 Qty: 12$0.50

262649351
FUEL PUMP CONTROLLER -Applicable for HELE- -Applicable from Ass. No. 98508-
$616.51

Part#: 264935 Qty: 1$616.51

272721451
ECU MOUNTING BRACKET -Applicable for HELE- -Applicable from Ass. No. 98508 up to Ass. No. 98507- -Applicable until depletion-

Part#: 272145 Qty: 1

272782681
ECU MOUNTING BRACKET -Applicable for HELE- -Applicable from Ass. No. 98508- -Applicable after depletion of 272145-

Part#: 278268 Qty: 1

28116257143
SCREW -M6 X 16-

Part#: 11625714 Qty: 3
