Table 121

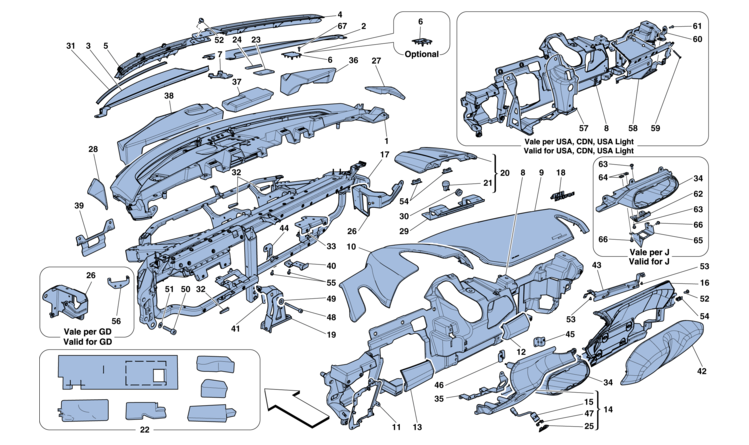

Table 121 - DASHBOARD

Ref.Part#Qty.DescriptionPrice
1825095..1
COMPL. FRONT DASHBOARD SUBFRAME -Leather- -STC1- -STC2- -Not for GD-

Part#: 825095.. Qty: 1

1829193..1
COMPL. FRONT DASHBOARD SUBFRAME -Leather- -STC1- -STC2- -Applicable for GD-

Part#: 829193.. Qty: 1

1855491..1
COMPL. FRONT DASHBOARD SUBFRAME -Alcantara- -STC1- -STC2- -Not for GD-

Part#: 855491.. Qty: 1

1859551..1
COMPL. FRONT DASHBOARD SUBFRAME -Alcantara- -STC1- -STC2- -Applicable for GD-

Part#: 859551.. Qty: 1

2825115001
COMPL. RH GRILLE -Not for J, GD-

Part#: 82511500 Qty: 1

2832505001
COMPL. RH GRILLE -Applicable for AUS, UK-

Part#: 83250500 Qty: 1

2862577001
COMPL. RH GRILLE -RHD version- -Applicable for J-

Part#: 86257700 Qty: 1

2862589001
COMPL. RH GRILLE -LHD version- -Applicable for J-

Part#: 86258900 Qty: 1

3825116001
COMPL. LH GRILLE -Not for J, GD-

Part#: 82511600 Qty: 1

3829719001
COMPL. LH GRILLE -Applicable for AUS, UK-

Part#: 82971900 Qty: 1

3862578001
COMPL. LH GRILLE -RHD version- -Applicable for J-

Part#: 86257800 Qty: 1

3862585001
COMPL. LH GRILLE -LHD version- -Applicable for J-

Part#: 86258500 Qty: 1

4824370001
COMPL. RH DEFROSTER SEMI-SURROUND

Part#: 82437000 Qty: 1

5825410001
COMPL. LH DEFROSTER SEMI-SURROUND

Part#: 82541000 Qty: 1

6863219002
TWEETER COVER -Standard-

Part#: 86321900 Qty: 2

6825390002
ADAPTOR FOR TWEETER -Version with radio and navigation-

Part#: 82539000 Qty: 2

7825123001
GPS ANTENNA BRACKET

Part#: 82512300 Qty: 1

8854129001
COMPLETE LOWER DASHBOARD SECTION -Not for GD-

Part#: 85412900 Qty: 1

8857602001
COMPLETE LOWER DASHBOARD SECTION -Applicable for GD-

Part#: 85760200 Qty: 1

9855396..1
COMPLETE UPPER DASHBOARD SECTION -Alcantara- -STC1- -STC2- -Not for GD-

Part#: 855396.. Qty: 1

9859558..1
COMPLETE UPPER DASHBOARD SECTION -Alcantara- -STC1- -STC2- -Applicable for GD-

Part#: 859558.. Qty: 1

9824930..1
COMPLETE UPPER DASHBOARD SECTION -Leather- -STC1- -STC2- -Not for GD-

Part#: 824930.. Qty: 1

9829570..1
COMPLETE UPPER DASHBOARD SECTION -Leather- -STC1- -STC2- -Applicable for GD-

Part#: 829570.. Qty: 1

10855482..1
COMPLETE BINNACLE -Alcantara- -STC1- -STC2- -Not for GD-

Part#: 855482.. Qty: 1

10859561..1
COMPLETE BINNACLE -Alcantara- -STC1- -STC2- -Applicable for GD-

Part#: 859561.. Qty: 1

10825107..1
COMPLETE BINNACLE -Leather- -STC1- -STC2- -Not for GD-

Part#: 825107.. Qty: 1

10827854..1
COMPLETE BINNACLE -Leather- -STC1- -STC2- -Applicable for GD-

Part#: 827854.. Qty: 1

11825129001
COMPL. BODY COMPUTER BRACKET -Not for GD-

Part#: 82512900 Qty: 1

11827855001
COMPL. BODY COMPUTER BRACKET -Applicable for GD-

Part#: 82785500 Qty: 1

12856076001
RH SATELLITE CONNECTOR

Part#: 85607600 Qty: 1

13856075001
LH SATELLITE CONNECTOR

Part#: 85607500 Qty: 1

14856624001
LOWER CENTRE PANEL -Formula 1 technical fabric- -STC1- -STC2- -Not for GD-

Part#: 85662400 Qty: 1

14858538001
LOWER CENTRE PANEL -Formula 1 technical fabric- -STC1- -STC2- -Applicable for GD-

Part#: 85853800 Qty: 1

14857808..1
LOWER CENTRE PANEL -Leather- -STC1- -STC2- -Not for GD-

Part#: 857808.. Qty: 1

14858550..1
LOWER CENTRE PANEL -Leather- -STC1- -STC2- -Applicable for GD-

Part#: 858550.. Qty: 1

152368471
TEMPERATURE SENSOR
$106.63

Part#: 236847 Qty: 1$106.63

16855453001
DOOR KNEE GUARD PANEL -Formula 1 technical fabric- -STC1- -STC2- -Not for GD-

Part#: 85545300 Qty: 1

16857614001
KNEE GUARD CARRIER PANEL -Formula 1 technical fabric- -STC1- -STC2- -Applicable for GD-

Part#: 85761400 Qty: 1

16857818..1
KNEE GUARD DOOR PANEL -Leather- -STC1- -STC2- -Not for GD-

Part#: 857818.. Qty: 1

16858540..1
KNEE GUARD CARRIER PANEL -Leather- -STC1- -STC2- -Applicable for GD-

Part#: 858540.. Qty: 1

17858562001
COMPL. CROSSMEMBER -Not for GD- -Applicable up to Ass. No. 120682-

Part#: 85856200 Qty: 1

17865695001
COMPL. CROSS MEMBER -Not for GD- -Applicable from Ass. No. 120683-

Part#: 86569500 Qty: 1

17827610001
COMPL. CROSS MEMBER -Applicable for GD- -Applicable up to Ass. No. 120682-

Part#: 82761000 Qty: 1

17865694001
COMPL. CROSS MEMBER -Applicable for GD- -Applicable from Ass. No. 120683-

Part#: 86569400 Qty: 1

18860576001
458 SPECIALE BADGE

Part#: 86057600 Qty: 1

19858533001
BRACKET FASTENING CROSS MEMBER TO TUNNEL -Not for GD-

Part#: 85853300 Qty: 1

19829157001
BRACKET FASTENING CROSS MEMBER TO TUNNEL -Applicable for GD-

Part#: 82915700 Qty: 1

20833758001
SUN SENSOR COVER

Part#: 83375800 Qty: 1

212368711
SUN SENSOR
$72.04

Part#: 236871 Qty: 1$72.04

22830053001
PULER UNDER STRUCTURE -720 X 210 X 40- -Standard-

Part#: 83005300 Qty: 1

22861415001
PULER UNDER STRUCTURE -720 X 210 X 40- -Version with radio and navigation-

Part#: 86141500 Qty: 1

22829126001
PULER UNDER STRUCTURE -400 X 170 X 60- -Applicable for GD-

Part#: 82912600 Qty: 1

22829671001
PULER UNDER STRUCTURE -360 X 120 X 60- -Applicable for GD-

Part#: 82967100 Qty: 1

22829130001
INNER DASH PULER -230 X 120 X 60- -Applicable for GD-

Part#: 82913000 Qty: 1

22829131001
INNER DASH PULER -160 X 120 X 60- -Applicable for GD-

Part#: 82913100 Qty: 1

23825490001
RH GRILLE RETAINER BRACKET

Part#: 82549000 Qty: 1

24825492001
RUBBER PAD

Part#: 82549200 Qty: 1

25808863..1
TEMPERATURE SENSOR COVER GRILLE -Leather-

Part#: 808863.. Qty: 1

26821048001
RH SATELLITE MOUNTING BRACKET -Not for GD-

Part#: 82104800 Qty: 1

26828101001
LH SATELLITE MOUNTING BRACKET -Applicable for GD-

Part#: 82810100 Qty: 1

27855485..1
LOWER RH PILLAR COVER -Alcantara-

Part#: 855485.. Qty: 1

27840031..1
LOWER RH PILLAR COVER -Leather-

Part#: 840031.. Qty: 1

28855488..1
LOWER LH PILLAR COVER -Alcantara-

Part#: 855488.. Qty: 1

28840032..1
LOWER LH PILLAR COVER -Leather-

Part#: 840032.. Qty: 1

29825081001
CENTRE BRACKET

Part#: 82508100 Qty: 1

30103963802
GROMMET

Part#: 10396380 Qty: 2

31691351002
GASKET

Part#: 69135100 Qty: 2

32833321005
GASKET

Part#: 83332100 Qty: 5

33853059001
NIT BRACE BRACKET -Not for GD-

Part#: 85305900 Qty: 1

33836897001
NIT BRACE BRACKET -Applicable for GD-

Part#: 83689700 Qty: 1

34855402001
HEATER CONTROL MOUNT -Not for J-

Part#: 85540200 Qty: 1

34862684001
HEATER CONTROL MOUNT -Applicable for J-

Part#: 86268400 Qty: 1

35825324001
FASTENER BRACKET FOR PANEL BODY -Not for GD-

Part#: 82532400 Qty: 1

35858571001
FASTENER BRACKET FOR PANEL BODY -Applicable for GD-

Part#: 85857100 Qty: 1

36847092001
RH PULER -Not for GD-

Part#: 84709200 Qty: 1

37847091001
CENTRAL PULER -Not for GD-

Part#: 84709100 Qty: 1

38847090001
LH PULER -Not for GD-

Part#: 84709000 Qty: 1

39845731001
MANUAL STEERING COLUMN ARRESTER BRACKET -Not for GD-

Part#: 84573100 Qty: 1

39845735001
MANUAL STEERING COLUMN ARRESTER BRACKET -Applicable for GD-

Part#: 84573500 Qty: 1

40858537001
SPLITTER MOUNTING BRACKET

Part#: 85853700 Qty: 1

41854414001
PLATE

Part#: 85441400 Qty: 1

42855443..1
KNEE GUARD -Alcantara- -STC1- -STC2- -Not for GD-

Part#: 855443.. Qty: 1

42857619..1
KNEE GUARD -Alcantara- -STC1- -STC2- -Applicable for GD-

Part#: 857619.. Qty: 1

42857816..1
KNEE GUARD -Leather- -STC1- -STC2- -Not for GD-

Part#: 857816.. Qty: 1

42858542..1
KNEE GUARD -Leather- -STC1- -STC2- -Applicable for GD-

Part#: 858542.. Qty: 1

43856243001
KNEE GUARD DOOR PANEL FASTENER BRACKET -Not for GD-

Part#: 85624300 Qty: 1

43857629001
KNEE GUARD CARRIER PANEL FASTENER BRACKET -Applicable for GD-

Part#: 85762900 Qty: 1

44815288001
BRACKET

Part#: 81528800 Qty: 1

45856701001
RH HEATER CONTROLS MOUNTING BRACKET

Part#: 85670100 Qty: 1

46856702001
LH HEATER CONTROLS MOUNTING BRACKET -Not for USA, CDN, USA LIGHT-

Part#: 85670200 Qty: 1

46863567001
LH HEATER CONTROL FASTENER BRACKET -Applicable for USA, CDN, USA LIGHT-

Part#: 86356700 Qty: 1

47809643001
TEMPERATURE SENSOR BRACKET

Part#: 80964300 Qty: 1

48143048212
SCREW

Part#: 14304821 Qty: 2

49126444012
WASHER

Part#: 12644401 Qty: 2

50840308004
SCREW

Part#: 84030800 Qty: 4

51126262244
WASHER -No longer supplied- -Replaced by 12626221-
$0.17

Part#: 12626224 Qty: 4$0.17

51126262214
WASHER

Part#: 12626221 Qty: 4

52819171007
SCREW

Part#: 81917100 Qty: 7

53132738112
SCREW

Part#: 13273811 Qty: 2

54687002003
CLIP
$5.67

Part#: 68700200 Qty: 3$5.67

55162860243
SCREW

Part#: 16286024 Qty: 3

56860914001
RH SATELLITE CONTROL FASTENER BRACKET -Applicable for GD-

Part#: 86091400 Qty: 1

57863572001
KNEE IMPACT BRACKET -Applicable for USA, CDN, USA LIGHT-

Part#: 86357200 Qty: 1

58862367001
REAR DASHBOARD BRACKET -Applicable for USA, CDN, USA LIGHT-

Part#: 86236700 Qty: 1

592164311
SCREW -Applicable for USA, CDN, USA LIGHT-
$6.50

Part#: 216431 Qty: 1$6.50

60863462001
RH LATERAL BRACKET -Applicable for USA, CDN, USA LIGHT-

Part#: 86346200 Qty: 1

61856922001
SCREW -Applicable for USA, CDN, USA LIGHT-
$1.75

Part#: 85692200 Qty: 1$1.75

62863196001
UPPER DSRC MOUNTING BRACKET -Applicable for J-

Part#: 86319600 Qty: 1

63696971004
SCREW -Applicable for J-

Part#: 69697100 Qty: 4

64141889714
BRACKET -Applicable for J-

Part#: 14188971 Qty: 4

65862686001
LOWER DSRC MOUNTING BRACKET -Applicable for J-

Part#: 86268600 Qty: 1

66696971004
SCREW -Applicable for J-

Part#: 69697100 Qty: 4

67160834016
SCREW
$0.51

Part#: 16083401 Qty: 6$0.51
