Ferrari Philadelphia Parts

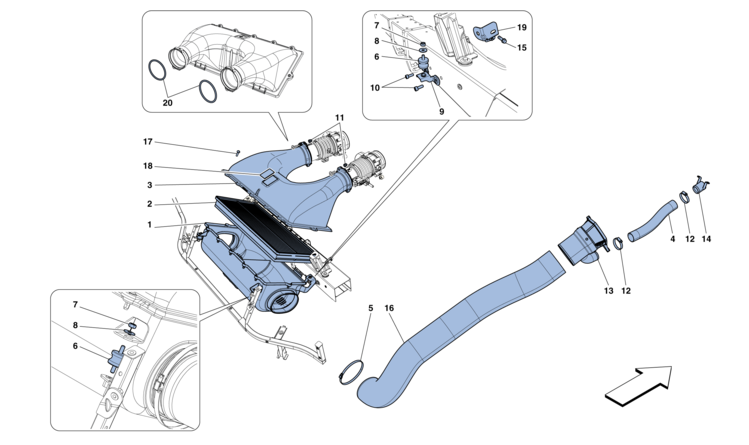

Table 14
Ref.Part#Qty.DescriptionPrice
13010331
FILTER BOX -Not for USA, CDN, USA LIGHT-

Part#: 301033 Qty: 1

12991261
FILTER BOX -Applicable for USA, CDN, USA LIGHT-

Part#: 299126 Qty: 1

22360401
AIR FILTER -Not for USA, CDN, USA LIGHT-
$162.88

Part#: 236040 Qty: 1$162.88

22521541
AIR FILTER -Applicable for USA, CDN, USA LIGHT-
$255.00

Part#: 252154 Qty: 1$255.00

32994041
FILTER BOX COVER -No longer supplied- -Replaced by 306063-

Part#: 299404 Qty: 1

33060631
FILTER BOX COVER

Part#: 306063 Qty: 1

43019012
COILED PIPE

Part#: 301901 Qty: 2

52605822
COLLAR -No longer supplied- -Replaced by 268661-

Part#: 260582 Qty: 2

52686612
COLLAR

Part#: 268661 Qty: 2

62855534
VIBRATION DAMPER
$28.46

Part#: 285553 Qty: 4$28.46

7158962144
NUT
$0.75

Part#: 15896214 Qty: 4$0.75

8126489784
WASHER -For upper fastener-
$0.42

Part#: 12648978 Qty: 4$0.42

81274944
WASHER
$0.65

Part#: 127494 Qty: 4$0.65

92507552
BRACKET

Part#: 250755 Qty: 2

102316174
SCREW -M6 X 18-
$0.65

Part#: 231617 Qty: 4$0.65

111686984
NUT
$1.31

Part#: 168698 Qty: 4$1.31

122967824
SCREW COLLAR
$16.26

Part#: 296782 Qty: 4$16.26

133037071
COMPL. RH AIR DUCT

Part#: 303707 Qty: 1

133037081
COMPL. LH AIR DUCT

Part#: 303708 Qty: 1

143027622
AIR DUCT

Part#: 302762 Qty: 2

15116255242
SCREW

Part#: 11625524 Qty: 2

163037232
RUBBER PIPE

Part#: 303723 Qty: 2

172807587
SCREW
$8.09

Part#: 280758 Qty: 7$8.09

182994071
PLATE

Part#: 299407 Qty: 1

19830519001
RH BRACKET

Part#: 83051900 Qty: 1

19830518001
LH BRACKET

Part#: 83051800 Qty: 1

202700532
GASKET
$118.16

Part#: 270053 Qty: 2$118.16
