Ferrari Philadelphia Parts

Table 16

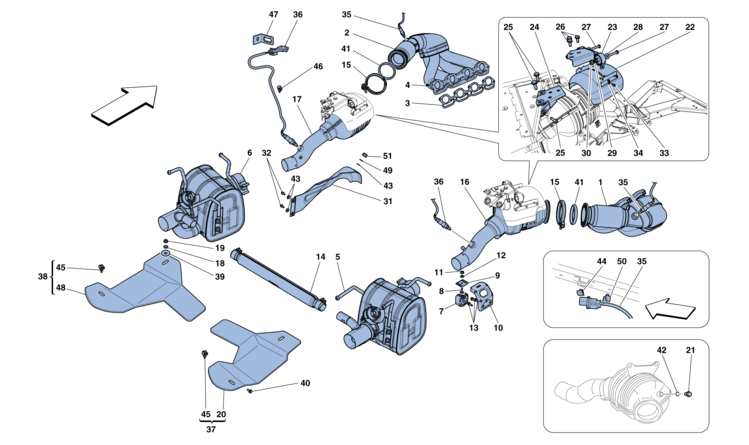

Table 16 - EXHAUST SYSTEM

Ref.Part#Qty.DescriptionPrice
12793221
COMPL. RH EXHAUST MANIFOLD

Part#: 279322 Qty: 1

22793231
COMPL. LH EXHAUST MANIFOLD

Part#: 279323 Qty: 1

32682562
GASKET
$35.56

Part#: 268256 Qty: 2$35.56

421097116
NUT
$2.50

Part#: 210971 Qty: 16$2.50

53011271
REAR RH SILENCER -Not for Korea and Taiwan- -Not for J-

Part#: 301127 Qty: 1

53099161
REAR RH SILENCER -Applicable for Korea and Taiwan- -Applicable for J-

Part#: 309916 Qty: 1

63011281
REAR LH SILENCER -Not for Korea and Taiwan- -Not for J-

Part#: 301128 Qty: 1

63099171
REAR LH SILENCER -Applicable for Korea and Taiwan- -Applicable for J-

Part#: 309917 Qty: 1

72397986
FLEXIBLE SILENCER MOUNTING BUSH
$97.63

Part#: 239798 Qty: 6$97.63

82834256
SQUARE HEADED SCREW
$2.37

Part#: 283425 Qty: 6$2.37

92405986
PLATE
$24.35

Part#: 240598 Qty: 6$24.35

103030524
SILENCER MOUNTING BRACKET

Part#: 303052 Qty: 4

103030532
OUTER REAR SILENCER BRACKET

Part#: 303053 Qty: 2

11140592146
NUT
$0.50

Part#: 14059214 Qty: 6$0.50

12126204746
WASHER
$0.15

Part#: 12620474 Qty: 6$0.15

12135784054
WASHER
$0.88

Part#: 13578405 Qty: 4$0.88

131158502418
SCREW -M5 X 14-
$0.31

Part#: 11585024 Qty: 18$0.31

143011291
SILENCER CONNECTOR PIPE

Part#: 301129 Qty: 1

152568842
RING CLAMP

Part#: 256884 Qty: 2

162616861
RH CATALYTIC CONVERTER

Part#: 261686 Qty: 1

172616871
LH CATALYTIC CONVERTER

Part#: 261687 Qty: 1

18126204744
WASHER
$0.15

Part#: 12620474 Qty: 4$0.15

19140592141
NUT
$0.50

Part#: 14059214 Qty: 1$0.50

202817621
RH SHIELD

Part#: 281762 Qty: 1

211108602
THREADED PLUG
$16.50

Part#: 110860 Qty: 2$16.50

222635881
RH CATALYTIC CONVERTER SHIELD

Part#: 263588 Qty: 1

222635891
LH CATALYTIC CONVERTER SHIELD

Part#: 263589 Qty: 1

233005911
RH BRACKET COMPL. WITH BUSHES

Part#: 300591 Qty: 1

233005921
LH BRACKET COMPL. WITH BUSHES

Part#: 300592 Qty: 1

243005951
RH CATALYTIC CONVERTER BRACKET

Part#: 300595 Qty: 1

243005961
LH CATALYTIC CONVERTER BRACKET

Part#: 300596 Qty: 1

25116281268
SCREW
$2.89

Part#: 11628126 Qty: 8$2.89

26116278266
SCREW

Part#: 11627826 Qty: 6

27160443214
SCREW
$3.00

Part#: 16044321 Qty: 4$3.00

28126013748
WASHER
$0.49

Part#: 12601374 Qty: 8$0.49

29126013744
WASHER
$0.49

Part#: 12601374 Qty: 4$0.49

30140593114
NUT
$1.49

Part#: 14059311 Qty: 4$1.49

312673321
SHIELD -No longer supplied- -Replaced by 306034-

Part#: 267332 Qty: 1

313060341
SHIELD

Part#: 306034 Qty: 1

322316202
SCREW -M6 X 25- -No longer supplied- -Replaced by 16286224-
$1.25

Part#: 231620 Qty: 2$1.25

32162862242
SCREW

Part#: 16286224 Qty: 2

33143040214
SCREW

Part#: 14304021 Qty: 4

34144466244
WASHER

Part#: 14446624 Qty: 4

352174472
FRONT OXYGEN SENSOR
$276.37

Part#: 217447 Qty: 2$276.37

361809152
REAR OXYGEN SENSOR
$213.53

Part#: 180915 Qty: 2$213.53

372839201
COMPL. RH SHIELD

Part#: 283920 Qty: 1

382839191
COMPL. LH SHIELD

Part#: 283919 Qty: 1

39135784054
WASHER
$0.88

Part#: 13578405 Qty: 4$0.88

40116258242
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 2$1.49

412573602
GASKET
$40.87

Part#: 257360 Qty: 2$40.87

42102984602
GASKET
$1.00

Part#: 10298460 Qty: 2$1.00

43126477043
WASHER

Part#: 12647704 Qty: 3

442912832
CLIP

Part#: 291283 Qty: 2

451919042
CLIP

Part#: 191904 Qty: 2

46104412902
BRACKET WITH SHEATH
$1.96

Part#: 10441290 Qty: 2$1.96

471854082
CONNECTOR FASTENER BRACKET

Part#: 185408 Qty: 2

482817611
LH SHIELD

Part#: 281761 Qty: 1

49126012741
WASHER -No longer supplied-
$1.00

Part#: 12601274 Qty: 1$1.00

501995892
CLIP

Part#: 199589 Qty: 2

51158962141
NUT -No longer supplied- -Replaced by 14039614-
$0.75

Part#: 15896214 Qty: 1$0.75

51140396141
NUT
$1.90

Part#: 14039614 Qty: 1$1.90
