Ferrari Philadelphia Parts

Table 125

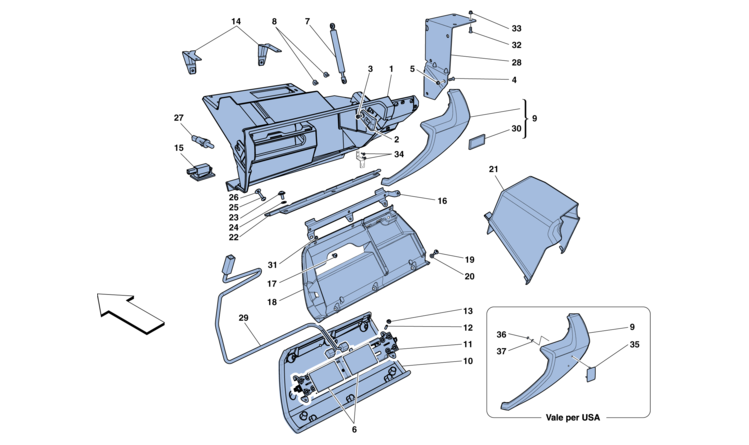

Table 125 - GLOVE COMPARTMENT

Ref.Part#Qty.DescriptionPrice
1820428001
GLOVE COMPARTMENT HOUSING -Not for GD-

Part#: 82042800 Qty: 1

1828750001
GLOVE COMPARTMENT HOUSING -Applicable for GD-

Part#: 82875000 Qty: 1

2673325001
RH LOCK STRIKER PLATE

Part#: 67332500 Qty: 1

2673326001
LH LOCK STRIKER PLATE

Part#: 67332600 Qty: 1

3143041872
SCREW -M5 X 12-
$0.21

Part#: 14304187 Qty: 2$0.21

4644605004
SCREW
$1.76

Part#: 64460500 Qty: 4$1.76

5140591114
NUT

Part#: 14059111 Qty: 4

61793092
ADHESIVE FOAM RUBBER
$14.37

Part#: 179309 Qty: 2$14.37

7839830001
GAS STRUT

Part#: 83983000 Qty: 1

8622399002
PIN

Part#: 62239900 Qty: 2

9814987..1
LOWER RH PANEL -Leather- -STC1- -STC2- -From Ass.ly No. 109070, supplied without plate part No. 83125600- -Not for GD-

Part#: 814987.. Qty: 1

9827604..1
LOWER LH PANEL -Leather- -STC1- -STC2- -From Ass.ly No. 109070, supplied without plate part No. 83125600- -Applicable for GD-

Part#: 827604.. Qty: 1

9846253..1
LOWER RH PANEL -Alcantara- -STC1- -STC2- -From Ass.ly No. 109070, supplied without plate part No. 83125600- -Not for GD-

Part#: 846253.. Qty: 1

9846256..1
LOWER LH PANEL -Alcantara- -STC1- -STC2- -From Ass.ly No. 109070, supplied without plate part No. 83125600- -Applicable for GD-

Part#: 846256.. Qty: 1

10814982..1
TRIMMED DOOR -Leather- -STC1- -STC2- -Not for GD-

Part#: 814982.. Qty: 1

10828756..1
TRIMMED DOOR -Leather- -STC1- -STC2- -Applicable for GD-

Part#: 828756.. Qty: 1

10846259..1
TRIMMED DOOR -Alcantara- -STC1- -STC2- -Not for GD-

Part#: 846259.. Qty: 1

10846263..1
TRIMMED DOOR -Alcantara- -STC1- -STC2- -Applicable for GD-

Part#: 846263.. Qty: 1

11826078001
COMPL. LOCK -Not for GD-

Part#: 82607800 Qty: 1

11829510001
COMPL. LOCK -Applicable for GD-

Part#: 82951000 Qty: 1

12138048214
SCREW

Part#: 13804821 Qty: 4

13140591114
NUT

Part#: 14059111 Qty: 4

14824282001
RH BRACKET

Part#: 82428200 Qty: 1

14824283001
LH BRACKET

Part#: 82428300 Qty: 1

151882501
LIGHT UNIT
$7.75

Part#: 188250 Qty: 1$7.75

16830089001
LOWER DAMPER MOUNTING BRACKET

Part#: 83008900 Qty: 1

17681762002
SCREW

Part#: 68176200 Qty: 2

18824797001
GLOVE COMPARTMENT DOOR BACKING -Not for GD-

Part#: 82479700 Qty: 1

18829080001
GLOVE COMPARTMENT DOOR BACKING -Applicable for GD-

Part#: 82908000 Qty: 1

191698144
SCREW
$1.58

Part#: 169814 Qty: 4$1.58

20126378014
WASHER

Part#: 12637801 Qty: 4

21826578001
COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING -Not for GD-

Part#: 82657800 Qty: 1

21829081001
COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING -Applicable for GD-

Part#: 82908100 Qty: 1

22824369001
COMPL. DOOR HINGE

Part#: 82436900 Qty: 1

23819171007
SCREW

Part#: 81917100 Qty: 7

24135777017
WASHER
$0.15

Part#: 13577701 Qty: 7$0.15

25132748723
SCREW
$0.77

Part#: 13274872 Qty: 3$0.77

25132739772
SCREW

Part#: 13273977 Qty: 2

26611487005
WASHER

Part#: 61148700 Qty: 5

271882661
GLOVE COMPARTMENT LIGHT BUTTON
$42.80

Part#: 188266 Qty: 1$42.80

28830086001
DAMPER MOUNTING BRACKET

Part#: 83008600 Qty: 1

292649771
GLOVE COMPARTMENT WIRING HARNESS -Applicable until depletion-

Part#: 264977 Qty: 1

292837251
GLOVE COMPARTMENT WIRING HARNESS -Applicable after depletion of 264977-

Part#: 283725 Qty: 1

30831256001
''CAMPIONI DEL MONDO 2010'' LABEL -Applicable up to Ass. No. 109069-

Part#: 83125600 Qty: 1

31140939103
NUT

Part#: 14093910 Qty: 3

32144407273
SCREW -M5 X 16-

Part#: 14440727 Qty: 3

33140591113
NUT

Part#: 14059111 Qty: 3

34132739772
SCREW

Part#: 13273977 Qty: 2

35864580001
''60 YEARS'' BADGE -Applicable for USA-

Part#: 86458000 Qty: 1

36161017112
NUT -Applicable for USA-
$0.75

Part#: 16101711 Qty: 2$0.75

37126394012
WASHER -Applicable for USA-

Part#: 12639401 Qty: 2
