Ferrari Philadelphia Parts

Table 32

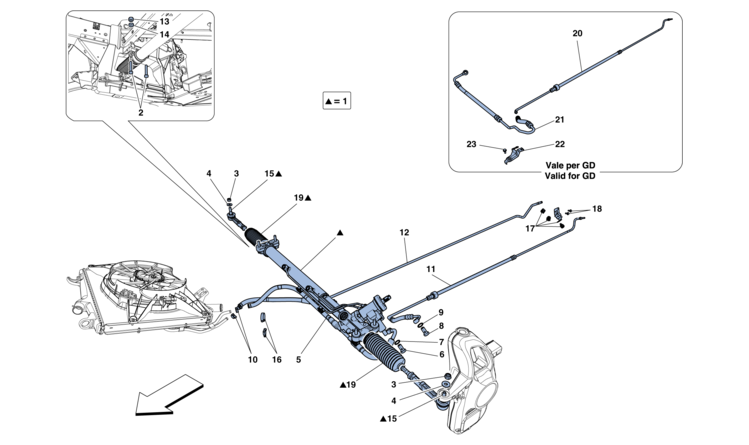

Table 32 - HYDRAULIC POWER STEERING BOX

Ref.Part#Qty.DescriptionPrice
12645391
STEERING BOX -Not for GD-

Part#: 264539 Qty: 1

12645401
STEERING BOX -Applicable for GD-

Part#: 264540 Qty: 1

2162373744
SCREW

Part#: 16237374 Qty: 4

31027422
NUT
$3.25

Part#: 102742 Qty: 2$3.25

4126262242
WASHER
$0.17

Part#: 12626224 Qty: 2$0.17

52628251
PIPE FROM STEERING BOX TO RADIATOR -Not for GD- -Applicable until depletion-

Part#: 262825 Qty: 1

53050411
PIPE FROM STEERING BOX TO RADIATOR -Not for GD- -Applicable after depletion of 262825-

Part#: 305041 Qty: 1

52624291
PIPE FROM STEERING BOX TO RADIATOR -Applicable for GD-

Part#: 262429 Qty: 1

62774071
CONNECTOR

Part#: 277407 Qty: 1

7102800602
COPPER GASKET
$1.00

Part#: 10280060 Qty: 2$1.00

81847271
CONNECTOR
$7.48

Part#: 184727 Qty: 1$7.48

9112703602
GASKET
$0.52

Part#: 11270360 Qty: 2$0.52

10131270702
COLLAR

Part#: 13127070 Qty: 2

112659031
DELIVERY PIPE -Applicable until depletion-

Part#: 265903 Qty: 1

113051581
DELIVERY PIPE -Applicable after depletion of 265903-

Part#: 305158 Qty: 1

122624271
RETURN PIPE

Part#: 262427 Qty: 1

13140586214
NUT

Part#: 14058621 Qty: 4

14144966244
WASHER

Part#: 14496624 Qty: 4

152501962
ROD END FOR STEERING BOX
$657.45

Part#: 250196 Qty: 2$657.45

162671774
CLIP -Not for GD-

Part#: 267177 Qty: 4

162671773
CLIP -Applicable for GD-

Part#: 267177 Qty: 3

162662481
CLIP -Applicable for GD-

Part#: 266248 Qty: 1

172632381
PIPE MOUNTING BRACKET

Part#: 263238 Qty: 1

18116258241
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 1$1.49

192295211
STEERING BOX GAITER REPLACEMENT KIT
$447.18

Part#: 229521 Qty: 1$447.18

202648301
DELIVERY PIPE -Applicable for GD- -Applicable until depletion-

Part#: 264830 Qty: 1

203057801
DELIVERY PIPE -Applicable for GD- -Applicable after depletion of 264830-

Part#: 305780 Qty: 1

212688231
OIL DELIVERY PIPE -Applicable for GD-

Part#: 268823 Qty: 1

222658381
POWER STEERING PIPE MOUNTING BRACKET -Applicable for GD-

Part#: 265838 Qty: 1

23116258241
SCREW -M6 X 18- -Applicable for GD-
$1.49

Part#: 11625824 Qty: 1$1.49
