Ferrari Philadelphia Parts

Table 108

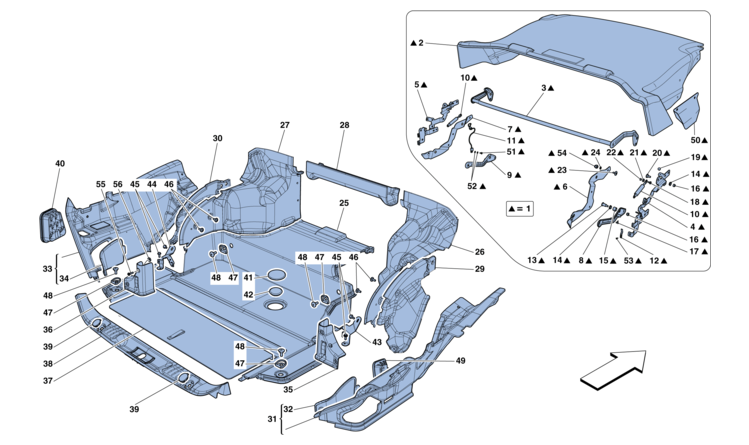

Table 108 - LUGGAGE COMPARTMENT MATS

Ref.Part#Qty.DescriptionPrice
1860644001
COMPL. SEPARATOR PANEL

Part#: 86064400 Qty: 1

2860645001
SEPARATOR PANEL

Part#: 86064500 Qty: 1

3828859001
REINFORCEMENT TUBE

Part#: 82885900 Qty: 1

4828847001
LOWER RH BRACKET

Part#: 82884700 Qty: 1

5828851001
LOWER LH BRACKET

Part#: 82885100 Qty: 1

6828853001
UPPER RH BRACKET

Part#: 82885300 Qty: 1

7828854001
UPPER LH BRACKET

Part#: 82885400 Qty: 1

8828843001
RH REAR ARM

Part#: 82884300 Qty: 1

9828844001
LH REAR ARM

Part#: 82884400 Qty: 1

10828845002
STABILUS

Part#: 82884500 Qty: 2

11808478001
PROXIMITY SENSOR

Part#: 80847800 Qty: 1

12815019001
CLIP

Part#: 81501900 Qty: 1

13828835002
PIN

Part#: 82883500 Qty: 2

14828825008
BUSHING

Part#: 82882500 Qty: 8

15828828002
SPACER

Part#: 82882800 Qty: 2

168288340016
NUT

Part#: 82883400 Qty: 16

17828983001
METAL BUTTON

Part#: 82898300 Qty: 1

18828833004
PIN

Part#: 82883300 Qty: 4

19819779004
UPPER RETAINER

Part#: 81977900 Qty: 4

20828836006
PIN

Part#: 82883600 Qty: 6

21828829004
SPACER

Part#: 82882900 Qty: 4

22828857004
SELF FASTENING STUD

Part#: 82885700 Qty: 4

23828895008
SCREW

Part#: 82889500 Qty: 8

24126378788
WASHER

Part#: 12637878 Qty: 8

25860607001
TANK TRIM PANEL

Part#: 86060700 Qty: 1

25860605001
TANK TRIM PANEL -Version with spare wheel-

Part#: 86060500 Qty: 1

25860832001
TANK TRIM PANEL -Version with spare wheel- -High power Hi-Fi version-

Part#: 86083200 Qty: 1

25860836001
TANK TRIM PANEL -High power Hi-Fi version-

Part#: 86083600 Qty: 1

26860623001
RH LATERAL LUGGAGE COMPARTMENT

Part#: 86062300 Qty: 1

27860622001
LH LATERAL LUGGAGE COMPARTMENT

Part#: 86062200 Qty: 1

28860604001
FRONT TRIM PANEL

Part#: 86060400 Qty: 1

29860625001
RH GUIDE TRIM

Part#: 86062500 Qty: 1

30860624001
LH GUIDE TRIM

Part#: 86062400 Qty: 1

31860616001
RH LATERAL LUGGAGE COMPARTMENT

Part#: 86061600 Qty: 1

31860838001
RH LATERAL LUGGAGE COMPARTMENT -High power Hi-Fi version-

Part#: 86083800 Qty: 1

32860618001
RH COVER

Part#: 86061800 Qty: 1

32860840001
RH COVER -High power Hi-Fi version-

Part#: 86084000 Qty: 1

33860613001
LH LATERAL LUGGAGE COMPARTMENT

Part#: 86061300 Qty: 1

34860615001
LH DOOR

Part#: 86061500 Qty: 1

35858253001
RH SEPARATOR HOOK COVER

Part#: 85825300 Qty: 1

35863423001
RH SEPARATOR HOOK COVER -Version with folding rear seats-

Part#: 86342300 Qty: 1

36858252001
LH SEPARATOR HOOK COVER

Part#: 85825200 Qty: 1

36863424001
LH SEPARATOR HOOK COVER -Version with folding rear seats-

Part#: 86342400 Qty: 1

37866117001
LUGGAGE COMPARTMENT FLOOR TRIM

Part#: 86611700 Qty: 1

38853791001
LUGGAGE COMPARTMENT INNER SILL TRIM

Part#: 85379100 Qty: 1

39858951002
SURROUND
$4.75

Part#: 85895100 Qty: 2$4.75

40697631001
LUGGAGE COMPARTMENT AIR VENT GRILLE

Part#: 69763100 Qty: 1

41860621001
CAP

Part#: 86062100 Qty: 1

42145072871
COVER CAP

Part#: 14507287 Qty: 1

43817894001
RH OUTER BRACKET

Part#: 81789400 Qty: 1

44817893001
LH OUTER BRACKET

Part#: 81789300 Qty: 1

45116258242
SCREW
$1.49

Part#: 11625824 Qty: 2$1.49

46659335004
SCREW
$2.98

Part#: 65933500 Qty: 4$2.98

47819167005
PLATE

Part#: 81916700 Qty: 5

48819168005
SCREW

Part#: 81916800 Qty: 5

492394551
LUGGAGE COMPARTMENT COURTESY LIGHT
$27.94

Part#: 239455 Qty: 1$27.94

50862696001
RH LATERAL SURROUND

Part#: 86269600 Qty: 1

50862697001
LH LATERAL SURROUND

Part#: 86269700 Qty: 1

51156872701
SCREW
$0.55

Part#: 15687270 Qty: 1$0.55

52144977042
WASHER

Part#: 14497704 Qty: 2

53146412972
RIVET

Part#: 14641297 Qty: 2

54140540778
NUT

Part#: 14054077 Qty: 8

55856923004
SCREW
$1.75

Part#: 85692300 Qty: 4$1.75

56627698004
WASHER
$0.50

Part#: 62769800 Qty: 4$0.50
