Table 16

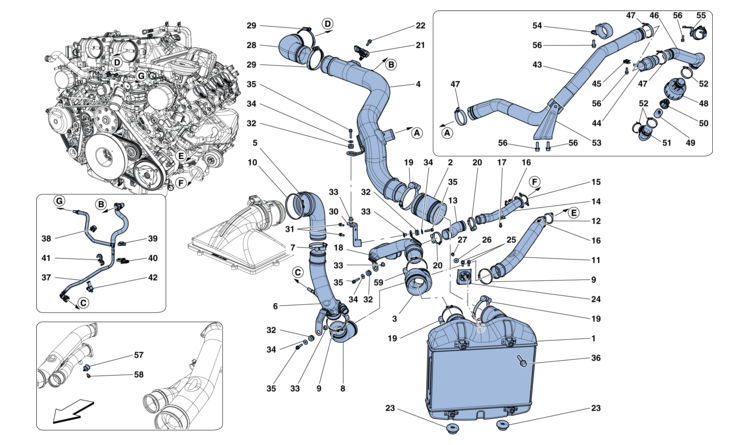

Table 16 - INTERCOOLER

Ref.Part#Qty.DescriptionPrice
13074691
LH INTERCOOLER

Part#: 307469 Qty: 1

13074681
RH INTERCOOLER

Part#: 307468 Qty: 1

23001882
HOSE UNION

Part#: 300188 Qty: 2

33001891
LH HOSE CONNECTION FROM TURBO TO INTERCOOLER

Part#: 300189 Qty: 1

33001901
RH HOSE CONNECTION FROM TURBO TO INTERCOOLER

Part#: 300190 Qty: 1

43101251
LH INTERMEDIATE PIPE BETWEEN INTERCOOLER AND HOSE UNION

Part#: 310125 Qty: 1

43101261
RH INTERMEDIATE PIPE BETWEEN INTERCOOLER AND HOSE UNION

Part#: 310126 Qty: 1

52964971
LH HOSE CONNECTION FOR AIR FLOW METER

Part#: 296497 Qty: 1

53086781
RH HOSE CONNECTION FOR AIR FLOW METER

Part#: 308678 Qty: 1

63082991
LH PIPE FROM FILTER TO TURBO

Part#: 308299 Qty: 1

63082981
RH PIPE FROM FILTER TO TURBO

Part#: 308298 Qty: 1

73050562
COLLAR

Part#: 305056 Qty: 2

82960542
HOSE CONNECTION FROM FILTER TO TURBO

Part#: 296054 Qty: 2

93087594
COLLAR

Part#: 308759 Qty: 4

101901512
RING CLAMP
$4.20

Part#: 190151 Qty: 2$4.20

113045841
LH COMPRESSOR FLANGED INTAKE PIPE

Part#: 304584 Qty: 1

113082971
RH COMPRESSOR FLANGED INTAKE PIPE

Part#: 308297 Qty: 1

122723002
COMPRESSOR INTAKE GASKET

Part#: 272300 Qty: 2

133088861
LH HOSE CONNECTION FROM TURBO TO INTERCOOLER

Part#: 308886 Qty: 1

133088851
RH HOSE CONNECTION FROM TURBO TO INTERCOOLER

Part#: 308885 Qty: 1

143078671
LH COMPRESSOR FLANGED OUTLET PIPE

Part#: 307867 Qty: 1

143078661
RH COMPRESSOR FLANGED OUTLET PIPE

Part#: 307866 Qty: 1

153088622
COMPRESSOR OUTLET GASKET

Part#: 308862 Qty: 2

162316198
SCREW
$0.43

Part#: 231619 Qty: 8$0.43

172316162
SCREW
$1.75

Part#: 231616 Qty: 2$1.75

183063161
LH PIPE FROM ENGINE TO INTERCOOLER

Part#: 306316 Qty: 1

183063151
RH PIPE FROM ENGINE TO INTERCOOLER

Part#: 306315 Qty: 1

192974846
COLLAR

Part#: 297484 Qty: 6

202974824
COLLAR

Part#: 297482 Qty: 4

212728802
PRESSURE AND TEMPERATURE SENSOR
$46.06

Part#: 272880 Qty: 2$46.06

222316172
SCREW
$0.65

Part#: 231617 Qty: 2$0.65

232909354
RADIATOR MOUNTING BUSH

Part#: 290935 Qty: 4

242960662
COMPL. UPPER INTERCOOLER BRACKET

Part#: 296066 Qty: 2

252316164
SCREW
$1.75

Part#: 231616 Qty: 4$1.75

26661214002
WASHER
$16.06

Part#: 66121400 Qty: 2$16.06

26126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

27109020242
SCREW
$0.90

Part#: 10902024 Qty: 2$0.90

283070022
THROTTLE BODY CONNECTOR HOSE UNION

Part#: 307002 Qty: 2

293032324
COLLAR

Part#: 303232 Qty: 4

303002801
LH AIR INTAKE PIPE MOUNTING BRACKET

Part#: 300280 Qty: 1

303002791
RH AIR INTAKE PIPE MOUNTING BRACKET

Part#: 300279 Qty: 1

312483344
SCREW -M6 X 16-

Part#: 248334 Qty: 4

321035498
GROMMET
$1.80

Part#: 103549 Qty: 8$1.80

331497078
SHIM
$1.97

Part#: 149707 Qty: 8$1.97

34126437248
WASHER
$0.29

Part#: 12643724 Qty: 8$0.29

352316218
SCREW
$0.54

Part#: 231621 Qty: 8$0.54

36821159008
SCREW
$0.59

Part#: 82115900 Qty: 8$0.59

373078511
LH CYLINDER BANK FLUSH VALVE PIPE -Not for USA, CDN, USA LIGHT-

Part#: 307851 Qty: 1

373105311
LH CYLINDER BANK FLUSH VALVE PIPE -Applicable for USA, CDN, USA LIGHT-

Part#: 310531 Qty: 1

373032631
RH CYLINDER BANK FLUSH VALVE PIPE -Not for USA, CDN, USA LIGHT-

Part#: 303263 Qty: 1

373105301
RH CYLINDER BANK FLUSH VALVE PIPE -Applicable for USA, CDN, USA LIGHT-

Part#: 310530 Qty: 1

383033653
CLIP -Q.ty 2 for RH pipe and q.ty 1 for LH pipe-

Part#: 303365 Qty: 3

392220721
CLIP -Fastening LH pipe-
$3.18

Part#: 222072 Qty: 1$3.18

403079731
CLIP -Fastening LH pipe- -Not for USA, CDN, USA LIGHT-

Part#: 307973 Qty: 1

413035601
SWIVEL CLIP -Fastening LH pipe-

Part#: 303560 Qty: 1

422572732
CLIP -Fastening RH and LH pipes-

Part#: 257273 Qty: 2

433103231
LH PIPE FROM INTAKE TO DISCONNECTOR

Part#: 310323 Qty: 1

433103241
RH PIPE FROM INTAKE TO DISCONNECTOR

Part#: 310324 Qty: 1

443104452
MALE-MALE CONNECTION

Part#: 310445 Qty: 2

45627663002
CLIP FOR SCREW
$0.70

Part#: 62766300 Qty: 2$0.70

463103251
LH PIPE FROM DISCONNECTOR TO RESONATOR

Part#: 310325 Qty: 1

463103261
RH PIPE FROM DISCONNECTOR TO RESONATOR

Part#: 310326 Qty: 1

472621146
COLLAR
$1.13

Part#: 262114 Qty: 6$1.13

483100962
SOUND GENERATOR

Part#: 310096 Qty: 2

493105972
FOAM

Part#: 310597 Qty: 2

503106022
FOAM MOUNT

Part#: 310602 Qty: 2

513103271
LH PIPE FROM RESONATOR TO FIREWALL

Part#: 310327 Qty: 1

513103281
RH PIPE FROM RESONATOR TO FIREWALL

Part#: 310328 Qty: 1

522621166
COLLAR

Part#: 262116 Qty: 6

533116211
LH FRONT BRACKET COMPL. WITH CLIP

Part#: 311621 Qty: 1

533116221
RH FRONT BRACKET COMPL. WITH CLIP

Part#: 311622 Qty: 1

543116202
INTERMEDIATE BRACKET COMPL. WITH CLIP

Part#: 311620 Qty: 2

553116192
REAR BRACKET COMPL. WITH CLIP

Part#: 311619 Qty: 2

5623161710
SCREW -No longer supplied- -Replaced by 269959-
$0.65

Part#: 231617 Qty: 10$0.65

5626995910
SCREW

Part#: 269959 Qty: 10

57104189011
BRACKET -On RH flanged pipe-

Part#: 10418901 Qty: 1

582336001
SCREW -On RH flanged pipe-

Part#: 233600 Qty: 1

592974842
COLLAR -No longer supplied- -Replaced by 305056-

Part#: 297484 Qty: 2

593050562
COLLAR

Part#: 305056 Qty: 2
