Ferrari Philadelphia Parts

Table 24

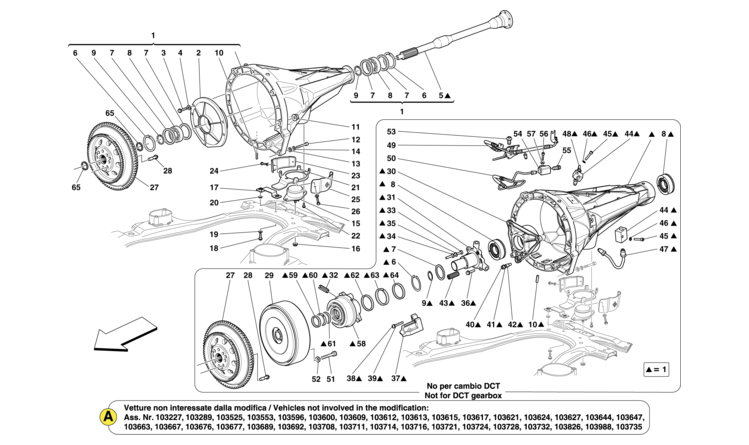

Table 24 - TRANSMISSION HOUSING

Ref.Part#Qty.DescriptionPrice
12519201
COMPL. TRANSMISSION HOUSING -Applicable for DCT gearbox- -No longer supplied- -Replaced by 254085-

Part#: 251920 Qty: 1

12540851
COMPL. TRANSMISSION HOUSING -Applicable for DCT gearbox- -No longer supplied- -Replaced by 259097-

Part#: 254085 Qty: 1

12590971
COMPL. TRANSMISSION HOUSING -Applicable for DCT gearbox- -No longer supplied- -Replaced by 269701-

Part#: 259097 Qty: 1

12697011
COMPL. TRANSMISSION HOUSING -Also order bracket ref. 21 part No. 269406- -Applicable for DCT gearbox-

Part#: 269701 Qty: 1

12604161
COMPL. TRANSMISSION HOUSING -Not for DCT gearbox-

Part#: 260416 Qty: 1

22519211
TRANSMISSION HOUSING FLANGE -Applicable for DCT gearbox-

Part#: 251921 Qty: 1

3143064243
SCREW -Applicable for DCT gearbox-
$0.69

Part#: 14306424 Qty: 3$0.69

4126385243
WASHER -Applicable for DCT gearbox-

Part#: 12638524 Qty: 3

52484171
TRANSMISSION HOUSING SHAFT -Applicable for DCT gearbox- -No longer supplied- -Replaced by 254081-

Part#: 248417 Qty: 1

52540811
TRANSMISSION HOUSING SHAFT -Applicable for DCT gearbox- -Applicable until depletion-

Part#: 254081 Qty: 1

52590961
TRANSMISSION HOUSING SHAFT -Applicable for DCT gearbox- -Applicable after depletion of 254081-

Part#: 259096 Qty: 1

52543091
TRANSMISSION HOUSING SHAFT -Not for DCT gearbox-

Part#: 254309 Qty: 1

6110624742
SNAP RING

Part#: 11062474 Qty: 2

72536274
CONTAINMENT RING -Not for Mechanical gearbox-

Part#: 253627 Qty: 4

72536272
CONTAINMENT RING -Applicable for Mechanical gearbox-

Part#: 253627 Qty: 2

82536292
COMPLETE BEARING

Part#: 253629 Qty: 2

9110688742
SEEGER RING

Part#: 11068874 Qty: 2

10135431242
STUD BOLT

Part#: 13543124 Qty: 2

11140594218
NUT

Part#: 14059421 Qty: 8

12143090243
SCREW

Part#: 14309024 Qty: 3

13126013743
WASHER
$0.49

Part#: 12601374 Qty: 3$0.49

14126385243
WASHER

Part#: 12638524 Qty: 3

152333681
FLEXIBLE PAD -Applicable until depletion-

Part#: 233368 Qty: 1

152708121
ELASTIC BUSHING -Applicable after depletion of 233368-
$279.15

Part#: 270812 Qty: 1$279.15

161770181
NUT
$3.50

Part#: 177018 Qty: 1$3.50

172420801
BRACKET -Applicable up to engine No. 103178-

Part#: 242080 Qty: 1

172775241
BRACKET -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from engine No. 103179-

Part#: 277524 Qty: 1

18159707242
SCREW

Part#: 15970724 Qty: 2

191274972
WASHER
$0.25

Part#: 127497 Qty: 2$0.25

20144966242
WASHER

Part#: 14496624 Qty: 2

212490481
BRACKET -Applicable up to engine No. 167394-

Part#: 249048 Qty: 1

212694061
BRACKET -Applicable up to Ass. No. 103178- -Applicable from engine No. 167395-

Part#: 269406 Qty: 1

212776821
BRACKET -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 277682 Qty: 1

22187543242
SCREW
$1.51

Part#: 18754324 Qty: 2$1.51

232469301
R.H. SHIELD FOR PAD -Applicable up to Ass. No. 103178-

Part#: 246930 Qty: 1

232539101
RH BUSHING SHIELD -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 253910 Qty: 1

24138332242
SCREW

Part#: 13833224 Qty: 2

252469311
L.H. SHIELD FOR PAD -Applicable up to Ass. No. 103178-

Part#: 246931 Qty: 1

252539111
LH BUSHING SHIELD -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 253911 Qty: 1

26138332242
SCREW

Part#: 13833224 Qty: 2

272481311
ENGINE DAMPER FLYWHEEL -Applicable for DCT gearbox- -Applicable up to engine No. 155930- -Applicable until depletion-

Part#: 248131 Qty: 1

272595791
ENGINE DAMPER FLYWHEEL -Applicable for DCT gearbox- -Applicable from engine No. 155931 up to engine No. 181222- -Applicable after depletion of 248131- -Applicable until depletion-

Part#: 259579 Qty: 1

272852621
ENGINE DAMPER FLYWHEEL -Applicable for DCT gearbox- -Applicable from engine No. 181223- -Applicable after depletion of 259579-

Part#: 285262 Qty: 1

272595771
ENGINE DAMPER FLYWHEEL -Not for DCT gearbox-

Part#: 259577 Qty: 1

282299078
FASTENER SCREW -Applicable for DCT gearbox-

Part#: 229907 Qty: 8

282015028
SCREW -Not for DCT gearbox-

Part#: 201502 Qty: 8

292287381
CLUTCH -Not for DCT gearbox-

Part#: 228738 Qty: 1

302530401
MOUNTING FOR THRUST BEARING FLANGE -Not for DCT gearbox-

Part#: 253040 Qty: 1

311829521
BEARING MOUNTING FLANGE -Not for DCT gearbox-
$1441.57

Part#: 182952 Qty: 1$1441.57

32146041701
SPRING PIN
$0.88

Part#: 14604170 Qty: 1$0.88

331829552
END STOP STUD BOLT -Not for DCT gearbox-
$45.25

Part#: 182955 Qty: 2$45.25

34105194242
WASHER -Not for DCT gearbox-
$0.39

Part#: 10519424 Qty: 2$0.39

35126012742
WASHER -Not for DCT gearbox-
$1.00

Part#: 12601274 Qty: 2$1.00

36162862242
SCREW -Not for DCT gearbox-

Part#: 16286224 Qty: 2

372074471
SENSOR SUPPORT -Not for DCT gearbox-

Part#: 207447 Qty: 1

38143044242
SCREW -Not for DCT gearbox-

Part#: 14304424 Qty: 2

39105193782
WASHER -Not for DCT gearbox-
$0.10

Part#: 10519378 Qty: 2$0.10

40143066243
SCREW -Not for DCT gearbox-

Part#: 14306624 Qty: 3

41126385243
WASHER -Not for DCT gearbox-

Part#: 12638524 Qty: 3

421027042
CENTERING DOWEL -Not for DCT gearbox-
$3.29

Part#: 102704 Qty: 2$3.29

431552072
CLUTCH THRUST PLATE PRELOAD SPRING -Not for DCT gearbox-
$8.42

Part#: 155207 Qty: 2$8.42

442346152
CLUTCH OIL DELIVERY BLOCK -Not for DCT gearbox-

Part#: 234615 Qty: 2

45143055212
SCREW -Not for DCT gearbox-

Part#: 14305521 Qty: 2

46126012742
WASHER -Not for DCT gearbox-
$1.00

Part#: 12601274 Qty: 2$1.00

472502341
DELIVERY PIPE FOR CLUTCH CONTROL -Not for DCT gearbox-

Part#: 250234 Qty: 1

482566811
BLEED PIPE -Not for DCT gearbox-

Part#: 256681 Qty: 1

492630441
CLUTCH CONTROL PIPE -Not for GD- -Not for DCT gearbox- -No longer supplied- -Replaced by 263469-

Part#: 263044 Qty: 1

492634691
CLUTCH CONTROL PIPE -Not for GD- -Not for DCT gearbox-

Part#: 263469 Qty: 1

492634491
CLUTCH CONTROL PIPE -Applicable for GD- -Not for DCT gearbox-

Part#: 263449 Qty: 1

502565971
BLEED PIPE -Not for DCT gearbox-

Part#: 256597 Qty: 1

512167719
SCREW -Not for DCT gearbox-
$1.85

Part#: 216771 Qty: 9$1.85

52111943799
WASHER -Not for DCT gearbox-
$2.25

Part#: 11194379 Qty: 9$2.25

532499221
UNION -Applicable for GD-

Part#: 249922 Qty: 1

542635191
2-WAY CONNECTOR -Not for DCT gearbox-

Part#: 263519 Qty: 1

551216991
BLEEDER SCREW -Not for DCT gearbox-
$44.35

Part#: 121699 Qty: 1$44.35

56143055211
SCREW

Part#: 14305521 Qty: 1

57126012741
WASHER
$1.00

Part#: 12601274 Qty: 1$1.00

582349431
THRUST BEARING

Part#: 234943 Qty: 1

591729701
SCRAPER RING
$26.94

Part#: 172970 Qty: 1$26.94

602080141
RING
$8.00

Part#: 208014 Qty: 1$8.00

611729721
SEAL RING
$27.02

Part#: 172972 Qty: 1$27.02

621545081
SEAL RING
$58.07

Part#: 154508 Qty: 1$58.07

631545071
RING
$5.50

Part#: 154507 Qty: 1$5.50

641545511
SCRAPER RING
$31.97

Part#: 154551 Qty: 1$31.97

652829662
GASKET -Applicable for flywheel 285262 pos. 27- -Applicable for DCT gearbox- -Applicable from engine No. 181223-

Part#: 282966 Qty: 2
