Ferrari Philadelphia Parts

Table 40

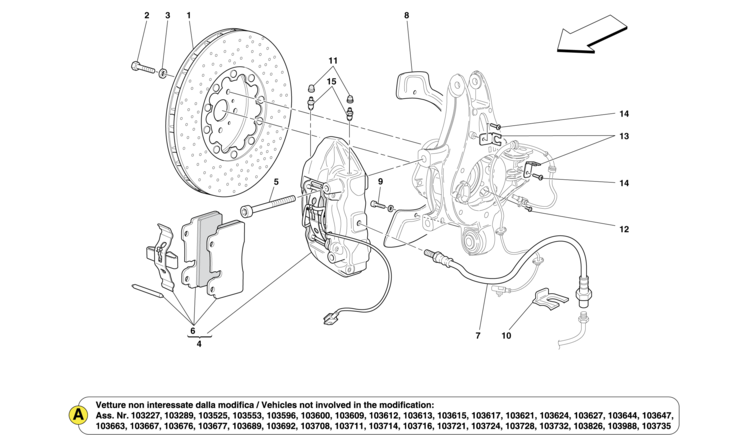

Table 40 - REAR WHEEL BRAKE SYSTEM COMPONENTS

Ref.Part#Qty.DescriptionPrice
12409671
REAR BRAKE DISC -Applicable until depletion-

Part#: 240967 Qty: 1

12409671
BRAKE DISC -Applicable up to Ass. No. 95333- -Applicable after depletion of 240967- -Applicable until depletion-

Part#: 240967 Qty: 1

12717141
BRAKE DISC -Applicable from Ass. No. 95334 up to Ass. No. 96951- -Applicable after depletion of 257102- -Applicable until depletion-

Part#: 271714 Qty: 1

12742321
BRAKE DISC -Applicable from Ass. No. 96952 up to Ass. No. 107306- -Applicable after depletion of 271714- -Applicable until depletion-

Part#: 274232 Qty: 1

12821211
REAR BRAKE DISC -Applicable from Ass. No. 107307- -Applicable after depletion of 274232-

Part#: 282121 Qty: 1

22281312
SCREW

Part#: 228131 Qty: 2

21043702
SCREW
$1.50

Part#: 104370 Qty: 2$1.50

32281324
WASHER

Part#: 228132 Qty: 4

42452121
COMPLETE R.H. REAR CALIPER -Gloss Black brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 245212 Qty: 1

42947951
COMPL. RH REAR CALLIPER -Gloss Black brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 245212-

Part#: 294795 Qty: 1

42469081
COMPLETE R.H. REAR CALIPER -Corsa Red brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 246908 Qty: 1

42947971
COMPL. RH REAR CALLIPER -Corsa Red brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 246908-

Part#: 294797 Qty: 1

42469101
COMPLETE R.H. REAR CALIPER -Aluminium Grey brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 246910 Qty: 1

42948011
COMPL. RH REAR CALLIPER -Aluminium Grey brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 246910-

Part#: 294801 Qty: 1

42469121
COMPLETE R.H. REAR CALIPER -Modena Yellow brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 246912 Qty: 1

42948031
COMPL. RH REAR CALLIPER -Modena Yellow brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 246912-

Part#: 294803 Qty: 1

42469141
COMPLETE R.H. REAR CALIPER -Scuderia Red brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 246914 Qty: 1

42948051
COMPL. RH REAR CALLIPER -Scuderia Red brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 246914-

Part#: 294805 Qty: 1

42846941
COMPL. RH REAR CALLIPER -Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 110523- -Applicable until depletion-

Part#: 284694 Qty: 1

42947991
COMPL. RH REAR CALLIPER -Gold brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 284694-

Part#: 294799 Qty: 1

42846981
COMPL. RH REAR CALLIPER -Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 110523- -Applicable until depletion-

Part#: 284698 Qty: 1

42948071
COMPL. RH REAR CALLIPER -Blue brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 284698-

Part#: 294807 Qty: 1

42485301
COMPL. RH REAR CALLIPER -Anodised Black brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 248530 Qty: 1

42947911
COMPL. RH REAR CALLIPER -Anodised Black brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 248530-

Part#: 294791 Qty: 1

42768801
COMPL. RH REAR CALLIPER -Dark grey brake callipers- -Applicable up to Ass. No. 103178-

Part#: 276880 Qty: 1

42791491
COMPL. RH REAR CALLIPER -Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 110523- -Applicable until depletion-

Part#: 279149 Qty: 1

42947931
COMPL. RH REAR CALLIPER -Dark grey brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 279149-

Part#: 294793 Qty: 1

42452131
COMPLETE L.H. REAR CALIPER -Gloss Black brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 245213 Qty: 1

42947941
COMPL. LH REAR CALLIPER -Gloss Black brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 245213-

Part#: 294794 Qty: 1

42469071
COMPLETE L.H. REAR CALIPER -Corsa Red brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 246907 Qty: 1

42947961
COMPL. LH REAR CALLIPER -Corsa Red brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 246907-

Part#: 294796 Qty: 1

42469091
COMPLETE L.H. REAR CALIPER -Aluminium Grey brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 246909 Qty: 1

42948001
COMPL. LH REAR CALLIPER -Aluminium Grey brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 246909-

Part#: 294800 Qty: 1

42469111
COMPLETE L.H. REAR CALIPER -Modena Yellow brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 246911 Qty: 1

42948021
COMPL. LH REAR CALLIPER -Modena Yellow brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 246911-

Part#: 294802 Qty: 1

42469131
COMPLETE L.H. REAR CALIPER -Scuderia Red brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 246913 Qty: 1

42948041
COMPL. LH REAR CALLIPER -Scuderia Red brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 246913-

Part#: 294804 Qty: 1

42846931
COMPL. LH REAR CALLIPER -Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 110523- -Applicable until depletion-

Part#: 284693 Qty: 1

42947981
COMPL. LH REAR CALLIPER -Gold brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 284693-

Part#: 294798 Qty: 1

42846971
COMPL. LH REAR CALLIPER -Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 110523- -Applicable until depletion-

Part#: 284697 Qty: 1

42948061
COMPL. LH REAR CALLIPER -Blue brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 284697-

Part#: 294806 Qty: 1

42485311
COMPL. LH REAR CALLIPER -Anodised Black brake callipers- -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 248531 Qty: 1

42947901
COMPL. LH REAR CALLIPER -Anodised Black brake callipers- -Applicable from Ass. No. 110524- -Applicable after depletion of 248531-

Part#: 294790 Qty: 1

42768791
COMPL. LH REAR CALLIPER -Dark grey brake callipers- -Applicable up to Ass. No. 103178-

Part#: 276879 Qty: 1

42791481
COMPL. LH REAR CALLIPER -Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 110523- -Applicable until depletion-

Part#: 279148 Qty: 1

42947921
COMPL. LH REAR CALLIPER -Dark grey brake callipers- -Applicable up to Ass. No. 110524- -Applicable after depletion of 279148-

Part#: 294792 Qty: 1

51968374
SCREW
$19.70

Part#: 196837 Qty: 4$19.70

6700013651
KIT OF REAR PADS -No longer supplied- -Replaced by 70001669-
$1750.00

Part#: 70001365 Qty: 1$1750.00

6700021291
REAR BRAKE PAD KIT -Applicable up to Ass. No. 110523- -Applicable until depletion-

Part#: 70002129 Qty: 1

6700028111
REAR BRAKE PAD KIT -Applicable from Ass. No. 110524- -Applicable after depletion of 70001669-
$1818.94

Part#: 70002811 Qty: 1$1818.94

71181002
RUBBER PIPE -Applicable up to Ass. No. 95333- -Applicable until depletion-

Part#: 118100 Qty: 2

72717122
RUBBER PIPE -Applicable from Ass. No. 95334 up to Ass. No. 103178- -Applicable after depletion of 118100-
$58.32

Part#: 271712 Qty: 2$58.32

72542412
HOSE -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 254241 Qty: 2

82409691
RH DISC SHIELD -Applicable up to Ass. No. 92004- -Applicable until depletion-

Part#: 240969 Qty: 1

82574241
RH DISC SHIELD -Applicable from Ass. No. 92005- -Applicable after depletion of 240969-

Part#: 257424 Qty: 1

82409681
LH DISC SHIELD -Applicable up to Ass. No. 92004- -Applicable until depletion-

Part#: 240968 Qty: 1

82574231
LH DISC SHIELD -Applicable from Ass. No. 92005- -Applicable after depletion of 240968-
$82.42

Part#: 257423 Qty: 1$82.42

91908706
SCREW -No longer supplied- -Replaced by 250657-
$3.53

Part#: 190870 Qty: 6$3.53

92506576
SCREW

Part#: 250657 Qty: 6

101163742
CLIP
$3.92

Part#: 116374 Qty: 2$3.92

112156664
CAP
$44.54

Part#: 215666 Qty: 4$44.54

122293242
SCREW

Part#: 229324 Qty: 2

131789384
MOUNTING

Part#: 178938 Qty: 4

141908704
SCREW -No longer supplied- -Replaced by 250657-
$3.53

Part#: 190870 Qty: 4$3.53

142506574
SCREW

Part#: 250657 Qty: 4

152156654
BLEED SCREW
$66.21

Part#: 215665 Qty: 4$66.21
