Ferrari Philadelphia Parts

Table 46

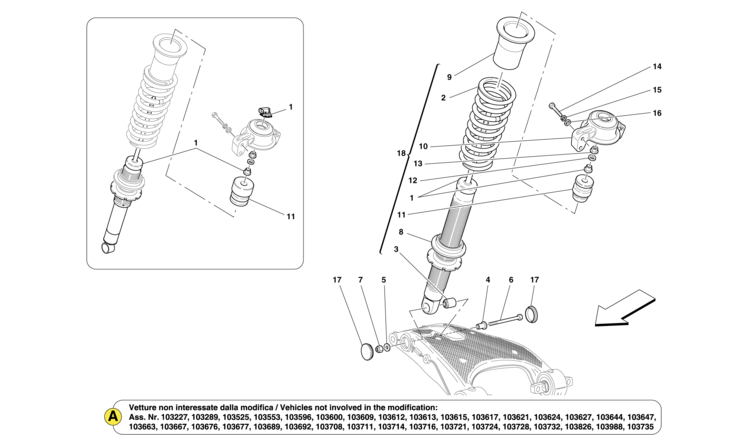

Table 46 - REAR SHOCK ABSORBER COMPONENTS

Ref.Part#Qty.DescriptionPrice
12472092
REAR SHOCK ABSORBER -Applicable up to Ass. No. 103178-
$4415.14

Part#: 247209 Qty: 2$4415.14

12759202
REAR SHOCK ABSORBER -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 275920 Qty: 2

12472102
REAR SHOCK ABSORBER -Dual Mode Magneride- -Applicable up to Ass. No. 103178-
$3051.48

Part#: 247210 Qty: 2$3051.48

12814712
REAR SHOCK ABSORBER -Dual Mode Magneride- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$1853.13

Part#: 281471 Qty: 2$1853.13

22412362
SPRING

Part#: 241236 Qty: 2

22534762
SPRING -Dual Mode Magneride-

Part#: 253476 Qty: 2

22853102
REAR SUSPENSION SPRING -Special Handling Pack-

Part#: 285310 Qty: 2

31576302
BALL JOINT
$163.04

Part#: 157630 Qty: 2$163.04

42378212
BUSHING
$5.10

Part#: 237821 Qty: 2$5.10

5126469212
WASHER
$0.95

Part#: 12646921 Qty: 2$0.95

62469622
SPECIAL SCREW
$29.39

Part#: 246962 Qty: 2$29.39

7140587212
NUT -No longer supplied- -Replaced by 255271-
$1.39

Part#: 14058721 Qty: 2$1.39

72552712
NUT
$1.30

Part#: 255271 Qty: 2$1.30

81889962
LOWER SPACER
$21.80

Part#: 188996 Qty: 2$21.80

92125172
UPPER SPACER
$22.10

Part#: 212517 Qty: 2$22.10

102400252
CUP -Applicable until depletion-

Part#: 240025 Qty: 2

102563922
CUP -Applicable up to Ass. No. 103178- -Applicable after depletion of 240025-
$574.95

Part#: 256392 Qty: 2$574.95

102503942
STOP CAP -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$381.96

Part#: 250394 Qty: 2$381.96

112464902
ENDSTOP BUSH -Applicable until depletion-

Part#: 246490 Qty: 2

112679362
ENDSTOP BUSH -Applicable after depletion of 246490-
$55.93

Part#: 267936 Qty: 2$55.93

122203772
WASHER

Part#: 220377 Qty: 2

132203782
NUT
$4.90

Part#: 220378 Qty: 2$4.90

14160441348
SCREW -M8 X 45- -Applicable up to Ass. No. 103178-

Part#: 16044134 Qty: 8

142487904
SCREW -M12 X 1.25 X 50- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$5.50

Part#: 248790 Qty: 4$5.50

15144965248
WASHER
$0.17

Part#: 14496524 Qty: 8$0.17

16126024798
WASHER

Part#: 12602479 Qty: 8

17145079876
CAP
$2.90

Part#: 14507987 Qty: 6$2.90

182538482
COMPL. REAR SHOCK ABSORBER -Adjustable setting- -Applicable up to Ass. No. 103178- -Applicable until depletion-

Part#: 253848 Qty: 2

182814732
COMPL. REAR SHOCK ABSORBER -Adjustable setting- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179- -No longer supplied- -Replaced by 288491-

Part#: 281473 Qty: 2

182884912
COMPL. REAR SHOCK ABSORBER -Adjustable setting- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179- -Applicable until depletion-

Part#: 288491 Qty: 2

182472052
COMPL. REAR SHOCK ABSORBER -Fixed setting- -Applicable up to Ass. No. 103178- -Applicable until depletion-

Part#: 247205 Qty: 2

182738102
COMPL. REAR SHOCK ABSORBER -Fixed setting- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179- -No longer supplied- -Replaced by 288486-

Part#: 273810 Qty: 2

182884862
COMPL. REAR SHOCK ABSORBER -Fixed setting- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179- -Applicable until depletion-

Part#: 288486 Qty: 2

182853092
COMPL. REAR SHOCK ABSORBER -Adjustable setting- -Special Handling Pack- -Applicable until depletion-

Part#: 285309 Qty: 2
