Ferrari Philadelphia Parts

Table 114

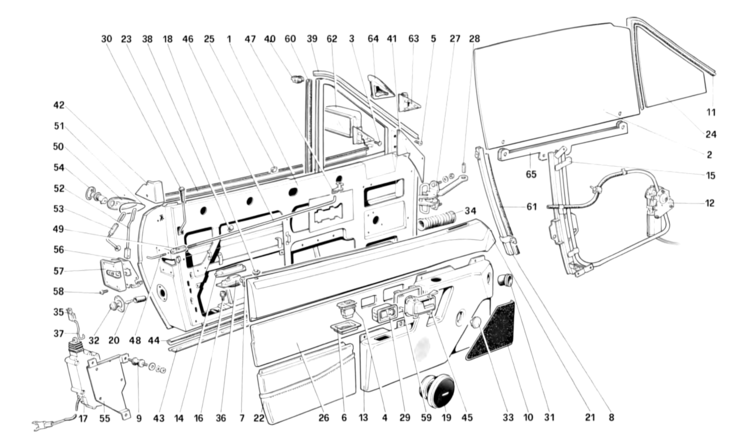

Table 114 - Doors - Cabriolet

Ref.Part#Qty.DescriptionPrice
618671001
R.H. lifting assembly and motor

Part#: 61867100 Qty: 1

618672001
L.H. lifting assembly and motor
$408.63

Part#: 61867200 Qty: 1$408.63

1618415001
R.H. door -Not for US - SA

Part#: 61841500 Qty: 1

618416001
LH. door-Not for US-SA

Part#: 61841600 Qty: 1

617826001
R.H. door-US -SA

Part#: 61782600 Qty: 1

617827001
L.H. -door - US - SA

Part#: 61782700 Qty: 1

2617579001
R.H. glass

Part#: 61757900 Qty: 1

617580001
L.H. glass
$645.87

Part#: 61758000 Qty: 1$645.87

3611827006
Screw

Part#: 61182700 Qty: 6

4618752002
Door lock switch
$29.75

Part#: 61875200 Qty: 2$29.75

5159085074
Screw

Part#: 15908507 Qty: 4

6618167002
Moulding-Until car no. 60047

Part#: 61816700 Qty: 2

619133002
Moulding - From car no. 60061

Part#: 61913300 Qty: 2

7618111002
Gasket
$65.00

Part#: 61811100 Qty: 2$65.00

8612175001
R.H. guide

Part#: 61217500 Qty: 1

612176001
L.H. guide

Part#: 61217600 Qty: 1

91130216
Pad
$14.35

Part#: 113021 Qty: 6$14.35

10608966001
R.H. moquette

Part#: 60896600 Qty: 1

608967001
L.H. moquette

Part#: 60896700 Qty: 1

11613512002
Gasket
$117.66

Part#: 61351200 Qty: 2$117.66

12623021001
R.H. motor
$655.00

Part#: 62302100 Qty: 1$655.00

623022001
L.H. motor
$626.20

Part#: 62302200 Qty: 1$626.20

13617808001
R.H. panel with covering - Until car No. 60047

Part#: 61780800 Qty: 1

617809001
L.H. panel with covering - Until car no. 60047

Part#: 61780900 Qty: 1

619134001
R.H. panel with covering - From car no. 60061

Part#: 61913400 Qty: 1

619135001
L.H. panel with covering - From car no. 60061

Part#: 61913500 Qty: 1

14608420002
Housing for underdoor lamp
$18.82

Part#: 60842000 Qty: 2$18.82

15623759001
R.H. lifting assembly

Part#: 62375900 Qty: 1

623760001
L H. lifting assembly
$375.68

Part#: 62376000 Qty: 1$375.68

16623027004
Adjusting screw
$19.77

Part#: 62302700 Qty: 4$19.77

17624377002
Locking device for door After exhaustion use no 62437700
$270.17

Part#: 62437700 Qty: 2$270.17

18618135002
Bush
$0.53

Part#: 61813500 Qty: 2$0.53

19618352002
Loudspeaker
$197.61

Part#: 61835200 Qty: 2$197.61

201015252
Bulb
$3.95

Part#: 101525 Qty: 2$3.95

21617804001
R.H. panel with covering + gasket 7

Part#: 61780400 Qty: 1

619965001
Covering

Part#: 61996500 Qty: 1

617805001
L.H. panel with covering + gasket 7

Part#: 61780500 Qty: 1

616966001
Covering

Part#: 61696600 Qty: 1

22613643001
R.H. pocket

Part#: 61364300 Qty: 1

613644001
L.H. pocket

Part#: 61364400 Qty: 1

23612199001
R.H. moulding with gasket 60637100

Part#: 61219900 Qty: 1

612200001
L.H. moulding with gasket 60637100

Part#: 61220000 Qty: 1

24612897001
R H. fixed glass
$760.78

Part#: 61289700 Qty: 1$760.78

612898001
L.H. fixed glass
$466.94

Part#: 61289800 Qty: 1$466.94

25421121014
Clip

Part#: 4211210 Qty: 14

26617823001
R.H. panel with covering - LHD

Part#: 61782300 Qty: 1

619147001
R.H. panel with covering - RHD

Part#: 61914700 Qty: 1

617812001
L.H. panel with covering - LHD

Part#: 61781200 Qty: 1

619148001
L.H. panel with covering - RHD

Part#: 61914800 Qty: 1

619676001
L.H. covering

Part#: 61967600 Qty: 1

613953001
R.H. covering

Part#: 61395300 Qty: 1

27609211002
Stop tie rod for door
$461.33

Part#: 60921100 Qty: 2$461.33

28607302002
Pin for tie-rod

Part#: 60730200 Qty: 2

29610632001
Switch for mirror
$308.32

Part#: 61063200 Qty: 1$308.32

30618136002
Knob with rod
$17.49

Part#: 61813600 Qty: 2$17.49

31613390002
Air duct

Part#: 61339000 Qty: 2

32607881002
Door light
$12.00

Part#: 60788100 Qty: 2$12.00

33606285002
Plug

Part#: 60628500 Qty: 2

34606379002
Bellows for electric cables

Part#: 60637900 Qty: 2

35400632086
Clip
$5.90

Part#: 40063208 Qty: 6$5.90

36608421002
Underdoor lamp

Part#: 60842100 Qty: 2

37618116001
R.H. rod

Part#: 61811600 Qty: 1

618117001
L.H. rod

Part#: 61811700 Qty: 1

38145778808
Clip

Part#: 14577880 Qty: 8

39612205002
Gasket
$36.59

Part#: 61220500 Qty: 2$36.59

40617577001
Upper R.H. terminal
$101.36

Part#: 61757700 Qty: 1$101.36

617578001
Upper L.H. terminal
$38.70

Part#: 61757800 Qty: 1$38.70

41612206001
Front R.H. moulding

Part#: 61220600 Qty: 1

612207001
Front L.H. moulding

Part#: 61220700 Qty: 1

42614256001
Rear R.H. moulding

Part#: 61425600 Qty: 1

614257001
Rear L.H. moulding

Part#: 61425700 Qty: 1

43607250002
Framework

Part#: 60725000 Qty: 2

44607251002
Underdoor gasket
$29.04

Part#: 60725100 Qty: 2$29.04

45618054001
R.H. interior handle
$267.62

Part#: 61805400 Qty: 1$267.62

618055001
L.H. interior handle
$205.00

Part#: 61805500 Qty: 1$205.00

46617895002
Front rod

Part#: 61789500 Qty: 2

47616115002
Clip

Part#: 61611500 Qty: 2

48613098002
Rear rod

Part#: 61309800 Qty: 2

49600886062
Sleeve

Part#: 60088606 Qty: 2

50606333001
R H. outer handle
$358.45

Part#: 60633300 Qty: 1$358.45

606334001
L.H. outer handle
$578.64

Part#: 60633400 Qty: 1$578.64

51610844002
Gasket
$22.55

Part#: 61084400 Qty: 2$22.55

52606336002
Rod for safety lock

Part#: 60633600 Qty: 2

53606338002
Rod handle - lock

Part#: 60633800 Qty: 2

54607191002
Lock with key

Part#: 60719100 Qty: 2

55618114001
RH. support

Part#: 61811400 Qty: 1

618115001
L.H. support

Part#: 61811500 Qty: 1

56617754001
R.H. lock

Part#: 61775400 Qty: 1

617755001
L.H. lock

Part#: 61775500 Qty: 1

57606347001
Moulding for R.H. lock

Part#: 60634700 Qty: 1

606348001
Moulding for L.H. lock
$7.98

Part#: 60634800 Qty: 1$7.98

58609095002
Screw
$2.99

Part#: 60909500 Qty: 2$2.99

609096006
Screw
$0.83

Part#: 60909600 Qty: 6$0.83

59618056002
Moulding
$1.50

Part#: 61805600 Qty: 2$1.50

60606351002
Front gasket

Part#: 60635100 Qty: 2

61612198002
Rear gasket

Part#: 61219800 Qty: 2

62610900001
L.H. mirror - LHD
$1379.35

Part#: 61090000 Qty: 1$1379.35

614611001
LH mirror-RHD

Part#: 61461100 Qty: 1

614609001
R.H. mirror - LHD -Not for US - SA

Part#: 61460900 Qty: 1

613677001
R H. mirror-US - SA

Part#: 61367700 Qty: 1

611825001
R.H. mirror - RHD

Part#: 61182500 Qty: 1

63610899001
L.H. support

Part#: 61089900 Qty: 1

611810001
R.H. support

Part#: 61181000 Qty: 1

64611812001
R.H. gasket-LHD

Part#: 61181200 Qty: 1

611826001
R H. gasket - RHD

Part#: 61182600 Qty: 1

610805001
L.H. gasket - LHD

Part#: 61080500 Qty: 1

611824001
L.H. gasket-RHD

Part#: 61182400 Qty: 1

65618673001
Base, R.H. glass

Part#: 61867300 Qty: 1

618674001
Base, L.H. glass

Part#: 61867400 Qty: 1
