Table 12

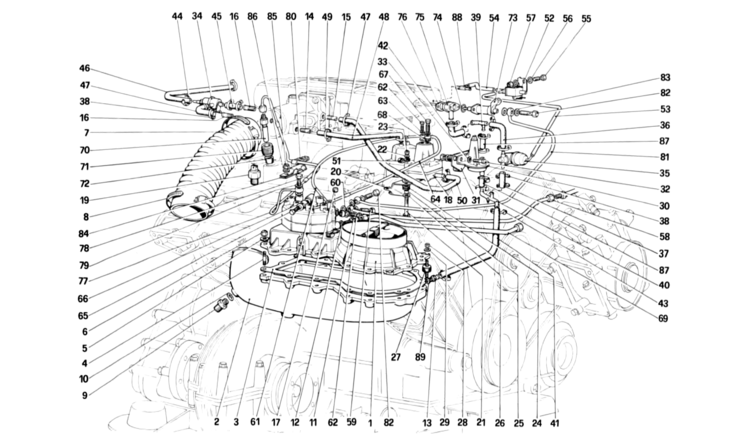

Table 12 - Fuel injection system Fuel distributors, lines

Ref.Part#Qty.DescriptionPrice
1700006501
Metering device

Part#: 70000650 Qty: 1

115833
Support for metering device, complete

Part#: 115833

21158241
Support for metering device With unit n 115833

Part#: 115824 Qty: 1

31350961
Gasket

Part#: 135096 Qty: 1

41354112115
Stud

Part#: 13541121 Qty: 15

51260127115
Washer

Part#: 12601271 Qty: 15

61257422115
Nut
$2.02

Part#: 12574221 Qty: 15$2.02

71183091
Pipe from support to throttle valve body

Part#: 118309 Qty: 1

8121749902
Clamp
$7.50

Part#: 12174990 Qty: 2$7.50

91149931
Union for gas recycle

Part#: 114993 Qty: 1

10112705601
Gasket

Part#: 11270560 Qty: 1

111154981
Union with filter

Part#: 115498 Qty: 1

12112701601
Washer
$1.80

Part#: 11270160 Qty: 1$1.80

131157511
Threaded union

Part#: 115751 Qty: 1

141136371
Threaded union

Part#: 113637 Qty: 1

151136521
Threaded union

Part#: 113652 Qty: 1

161120302
Union for by pass

Part#: 112030 Qty: 2

171215711
Inviolability cap
$27.65

Part#: 121571 Qty: 1$27.65

181154731
Warm up regulator

Part#: 115473 Qty: 1

191139801
Time thermal switch

Part#: 113980 Qty: 1

201157311
Support

Part#: 115731 Qty: 1

21109038212
Screw
$1.25

Part#: 10903821 Qty: 2$1.25

22126042712
Washer

Part#: 12604271 Qty: 2

23125742214
Nut
$2.02

Part#: 12574221 Qty: 4$2.02

241035494
Rubber small block
$1.80

Part#: 103549 Qty: 4$1.80

251035504
Spacer
$3.25

Part#: 103550 Qty: 4$3.25

26126437016
Washer

Part#: 12643701 Qty: 6

271029473
Vibration damping support
$20.91

Part#: 102947 Qty: 3$20.91

28125754113
Nut

Part#: 12575411 Qty: 3

29126012713
Washer

Part#: 12601271 Qty: 3

301152231
Additional air valve

Part#: 115223 Qty: 1

311152241
Support

Part#: 115224 Qty: 1

32109026212
Screw
$0.21

Part#: 10902621 Qty: 2$0.21

33126012712
Washer

Part#: 12601271 Qty: 2

34115741
Valve for by pass

Part#: 115741

351154131
Valve for cold starting

Part#: 115413 Qty: 1

361154051
Pipe

Part#: 115405 Qty: 1

371154061
Pipe

Part#: 115406 Qty: 1

381217959012
Clamp

Part#: 12179590 Qty: 12

391154091
Upper three-way union

Part#: 115409 Qty: 1

401154101
Lower three way union

Part#: 115410 Qty: 1

41115403
Pipe
$41.61

Part#: 115403$41.61

421154041
Pipe

Part#: 115404 Qty: 1

43121799904
Clamp

Part#: 12179990 Qty: 4

441152301
Pipe

Part#: 115230 Qty: 1

45115227
Pipe

Part#: 115227

46115412
Pipe

Part#: 115412

47121795904
Clamp

Part#: 12179590 Qty: 4

481157501
Pipe

Part#: 115750 Qty: 1

49121791902
Clamp

Part#: 12179190 Qty: 2

501156761
Pipe
$15.50

Part#: 115676 Qty: 1$15.50

51104183001
Clamp for pipe

Part#: 10418300 Qty: 1

521117041
Solenoid valve
$294.73

Part#: 111704 Qty: 1$294.73

531154111
Pipe
$18.91

Part#: 115411 Qty: 1$18.91

541154121
Pipe

Part#: 115412 Qty: 1

55160438211
Screw

Part#: 16043821 Qty: 1

56107303012
Washer

Part#: 10730301 Qty: 2

57161044111
Nut
$0.50

Part#: 16104411 Qty: 1$0.50

581177871
Return pipe

Part#: 117787 Qty: 1

591116441
Union

Part#: 111644 Qty: 1

601139102
Gasket
$1.45

Part#: 113910 Qty: 2$1.45

611155051
Return pipe from regulator

Part#: 115505 Qty: 1

621136642
Union

Part#: 113664 Qty: 2

63143302604
Gasket
$0.89

Part#: 14330260 Qty: 4$0.89

641155071
Delivery pipe to regulator

Part#: 115507 Qty: 1

651136641
Union

Part#: 113664 Qty: 1

66143302602
Gasket
$0.89

Part#: 14330260 Qty: 2$0.89

671136701
Union

Part#: 113670 Qty: 1

68102601602
Gasket
$0.90

Part#: 10260160 Qty: 2$0.90

691178851
Pipe from fuel tank

Part#: 117885 Qty: 1

701139758
Injector
$89.85

Part#: 113975 Qty: 8$89.85

711146608
Bush
$98.75

Part#: 114660 Qty: 8$98.75

721146618
Grommet
$18.65

Part#: 114661 Qty: 8$18.65

731154741
Auxiliary starting assembly

Part#: 115474 Qty: 1

741030391
Sealing ring
$1.45

Part#: 103039 Qty: 1$1.45

751150041
Union

Part#: 115004 Qty: 1

761477201
Gasket
$5.76

Part#: 147720 Qty: 1$5.76

771153221
Pipe from metering device to cylinder 3

Part#: 115322 Qty: 1

1153201
Pipe from metering device to cylinder 1

Part#: 115320 Qty: 1

1153211
Pipe from metering device to cylinder 2

Part#: 115321 Qty: 1

1153231
Pipe from metering device to cylinder 4

Part#: 115323 Qty: 1

1153241
Pipe from metering device to cylinder 5

Part#: 115324 Qty: 1

1153251
Pipe from metering device to cylinder 6

Part#: 115325 Qty: 1

1153261
Pipe from metering device to cylinder 7

Part#: 115326 Qty: 1

1153271
Pipe from metering device to cylinder 8

Part#: 115327 Qty: 1

781136708
Pipe union

Part#: 113670 Qty: 8

791026016016
Gasket
$0.90

Part#: 10260160 Qty: 16$0.90

801155951
Support clamp (4 pipes)

Part#: 115595 Qty: 1

1138961
Support clamp (3 pipes)
$9.25

Part#: 113896 Qty: 1$9.25

1154181
Support clamp (4 pipes)

Part#: 115418 Qty: 1

1172792
Support clamp (2 pipes)

Part#: 117279 Qty: 2

811157351
Metering pipe for auxiliary starting assembly

Part#: 115735 Qty: 1

821136642
Pipe union

Part#: 113664 Qty: 2

83143302604
Copper washer
$0.89

Part#: 14330260 Qty: 4$0.89

841154171
Bracket for clamp

Part#: 115417 Qty: 1

85125745111
Nut

Part#: 12574511 Qty: 1

86111977711
Washer

Part#: 11197771 Qty: 1

871154072
Pipe
$12.95

Part#: 115407 Qty: 2$12.95

881156561
Union
$22.82

Part#: 115656 Qty: 1$22.82

89102599601
Gasket
$1.00

Part#: 10259960 Qty: 1$1.00
