Ferrari Philadelphia Parts

Table 151

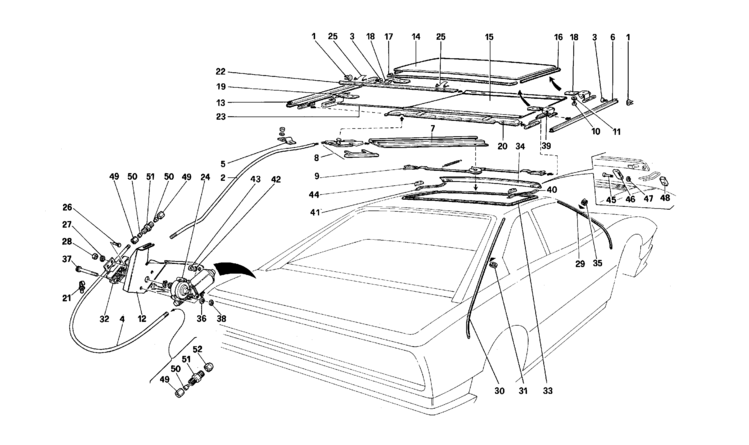

Table 151 - Sunroof - Coupe

Ref.Part#Qty.DescriptionPrice
1609118002
Nut screw

Part#: 60911800 Qty: 2

2624471001
Tube
$242.47

Part#: 62447100 Qty: 1$242.47

3609119002
Screw

Part#: 60911900 Qty: 2

4624470001
Tube

Part#: 62447000 Qty: 1

5609161003
Bracket

Part#: 60916100 Qty: 3

6609647001
R.H. front guide

Part#: 60964700 Qty: 1

7613105001
Guide

Part#: 61310500 Qty: 1

8609702001
Cable

Part#: 60970200 Qty: 1

9609766001
Leverage

Part#: 60976600 Qty: 1

106096510012
Screw to front and rear plate

Part#: 60965100 Qty: 12

116096520012
Spring washer

Part#: 60965200 Qty: 12

12624466001
Plate to fix. motor

Part#: 62446600 Qty: 1

13609646001
L.H. front guide

Part#: 60964600 Qty: 1

14609133001
Sliding roof, complete

Part#: 60913300 Qty: 1

15610300001
Inner covering

Part#: 61030000 Qty: 1

16609631001
Front, side gasket

Part#: 60963100 Qty: 1

17609632001
Rear gasket

Part#: 60963200 Qty: 1

18609635002
Front guide plate

Part#: 60963500 Qty: 2

19609636001
Rear left guide plate

Part#: 60963600 Qty: 1

20609136001
Mobile traverse

Part#: 60913600 Qty: 1

21145734801
Cable terminal

Part#: 14573480 Qty: 1

22609639001
Guide

Part#: 60963900 Qty: 1

23609640001
Rod

Part#: 60964000 Qty: 1

24624468001
Motor

Part#: 62446800 Qty: 1

25609638002
Spring

Part#: 60963800 Qty: 2

26104446212
Screw

Part#: 10444621 Qty: 2

27106152792
Washer

Part#: 10615279 Qty: 2

28107940112
Nut
$0.03

Part#: 10794011 Qty: 2$0.03

29609156002
Front drain tube

Part#: 60915600 Qty: 2

30609157002
Rear drain tube

Part#: 60915700 Qty: 2

31103966802
Insulating ring for rear tubes

Part#: 10396680 Qty: 2

32624589001
Block
$205.94

Part#: 62458900 Qty: 1$205.94

33609629001
Gasket

Part#: 60962900 Qty: 1

34610772001
Spoiler

Part#: 61077200 Qty: 1

35103962802
Insulating ring for front tubes

Part#: 10396280 Qty: 2

361274943
Washer
$0.65

Part#: 127494 Qty: 3$0.65

37624590002
Screw

Part#: 62459000 Qty: 2

38158962113
Nut

Part#: 15896211 Qty: 3

39609637001
R.H. plate

Part#: 60963700 Qty: 1

40611054001
R.H. spring

Part#: 61105400 Qty: 1

41611053001
L.H. spring

Part#: 61105300 Qty: 1

42126444012
Washer

Part#: 12644401 Qty: 2

43125742112
Nut

Part#: 12574211 Qty: 2

44611056002
Block

Part#: 61105600 Qty: 2

45611059002
Pin

Part#: 61105900 Qty: 2

46611044002
Block

Part#: 61104400 Qty: 2

47110874762
Seeger

Part#: 11087476 Qty: 2

48611055002
Block

Part#: 61105500 Qty: 2

49624935003
Nut

Part#: 62493500 Qty: 3

50624936003
Ogiva

Part#: 62493600 Qty: 3

51624937002
Union

Part#: 62493700 Qty: 2

52624938001
Cup nut

Part#: 62493800 Qty: 1
