Table 29

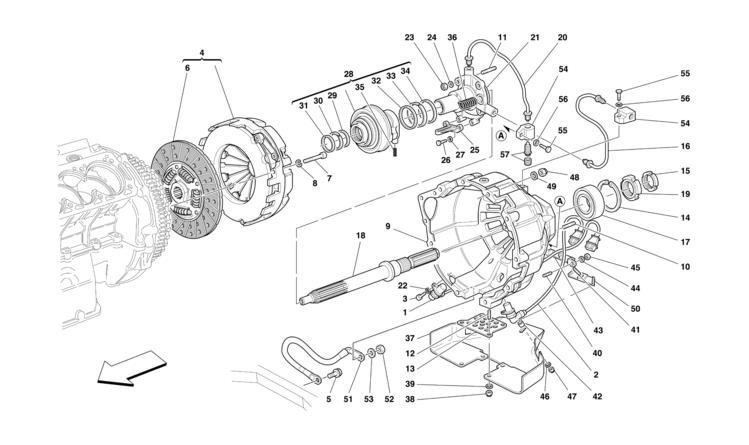

Table 29 - CLUTCH - CONTROLS

Ref.Part#Qty.DescriptionPrice
11640821
R.H. SIDE ANGOLAR SPEED SENSOR
$215.45

Part#: 164082 Qty: 1$215.45

21640831
L.H. SIDE ANGOLAR SPEED SENSOR
$215.35

Part#: 164083 Qty: 1$215.35

3143051242
SCREW

Part#: 14305124 Qty: 2

41715921
COMPLETE CLUTCH

Part#: 171592 Qty: 1

5162964211
SCREW

Part#: 16296421 Qty: 1

61537211
CLUTCH DISC

Part#: 153721 Qty: 1

7143059749
SCREW
$0.50

Part#: 14305974 Qty: 9$0.50

81274949
WASHER
$0.65

Part#: 127494 Qty: 9$0.65

91516011
COMPLETE CLUTCH HOUSING

Part#: 151601 Qty: 1

91689151
CLUTCH HOUSING -With complete clutch housing-

Part#: 168915 Qty: 1

10135463348
STUD

Part#: 13546334 Qty: 8

11135431244
STUD

Part#: 13543124 Qty: 4

12110010244
STUD
$2.37

Part#: 11001024 Qty: 4$2.37

131444411
CLUTCH HOUSING SMALL COVER
$12.50

Part#: 144441 Qty: 1$12.50

141445111
STOP RING

Part#: 144511 Qty: 1

151655761
RING NUT
$24.49

Part#: 165576 Qty: 1$24.49

161657591
OIL DELIVERY TUBE

Part#: 165759 Qty: 1

171744701
BEARING -Not as spare part replaced by 145805-
$100.00

Part#: 174470 Qty: 1$100.00

171458051
BEARING
$144.20

Part#: 145805 Qty: 1$144.20

181655731
CLUTCH SHAFT

Part#: 165573 Qty: 1

191655751
RING NUT
$24.79

Part#: 165575 Qty: 1$24.79

201657331
VENT PIPE

Part#: 165733 Qty: 1

211691371
FLANGE WITH SLEEVE

Part#: 169137 Qty: 1

22126012742
WASHER
$1.00

Part#: 12601274 Qty: 2$1.00

231339894
NUT
$0.50

Part#: 133989 Qty: 4$0.50

241274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50

251516931
PLATE
$95.38

Part#: 151693 Qty: 1$95.38

26109775242
SCREW

Part#: 10977524 Qty: 2

271274932
WASHER
$0.10

Part#: 127493 Qty: 2$0.10

281772011
COMPLETE THRUST BEARING -Not as spare part- -Replaced by 177202-
$2130.35

Part#: 177201 Qty: 1$2130.35

281772021
COMPLETE THRUST BEARING

Part#: 177202 Qty: 1

291545051
SEAL RING
$18.10

Part#: 154505 Qty: 1$18.10

301545041
RING
$5.97

Part#: 154504 Qty: 1$5.97

311545501
SCRAPER RING
$21.30

Part#: 154550 Qty: 1$21.30

321545081
SEAL RING
$58.07

Part#: 154508 Qty: 1$58.07

331545071
RING
$5.50

Part#: 154507 Qty: 1$5.50

341545511
SCRAPER RING
$31.97

Part#: 154551 Qty: 1$31.97

35141639701
FLEXIBLE PIN
$1.90

Part#: 14163970 Qty: 1$1.90

361552072
PRELOAD SPRING
$8.42

Part#: 155207 Qty: 2$8.42

371701151
SHIELD FOR FASE SENSOR PROTECTION
$381.92

Part#: 170115 Qty: 1$381.92

38158964704
NUT
$2.27

Part#: 15896470 Qty: 4$2.27

39126011744
WASHER
$0.26

Part#: 12601174 Qty: 4$0.26

40135408242
STUD

Part#: 13540824 Qty: 2

411551771
STUD
$15.00

Part#: 155177 Qty: 1$15.00

421551751
SPACER
$1.58

Part#: 155175 Qty: 1$1.58

431544641
SUPPORT

Part#: 154464 Qty: 1

44126397242
WASHER
$0.50

Part#: 12639724 Qty: 2$0.50

451027412
NUT
$0.75

Part#: 102741 Qty: 2$0.75

46111992741
WASHER

Part#: 11199274 Qty: 1

47158964701
NUT
$2.27

Part#: 15896470 Qty: 1$2.27

48161008145
NUT
$0.45

Part#: 16100814 Qty: 5$0.45

49126013745
WASHER
$0.49

Part#: 12601374 Qty: 5$0.49

501466541
SUPPORT

Part#: 146654 Qty: 1

511559181
GROUND CABLE

Part#: 155918 Qty: 1

52158964701
NUT
$2.27

Part#: 15896470 Qty: 1$2.27

53111992741
WASHER

Part#: 11199274 Qty: 1

541394712
UNION
$39.90

Part#: 139471 Qty: 2$39.90

55109026242
SCREW

Part#: 10902624 Qty: 2

56111818742
WASHER

Part#: 11181874 Qty: 2

571216991
BLEEDER SCREW
$44.35

Part#: 121699 Qty: 1$44.35
