Table 56

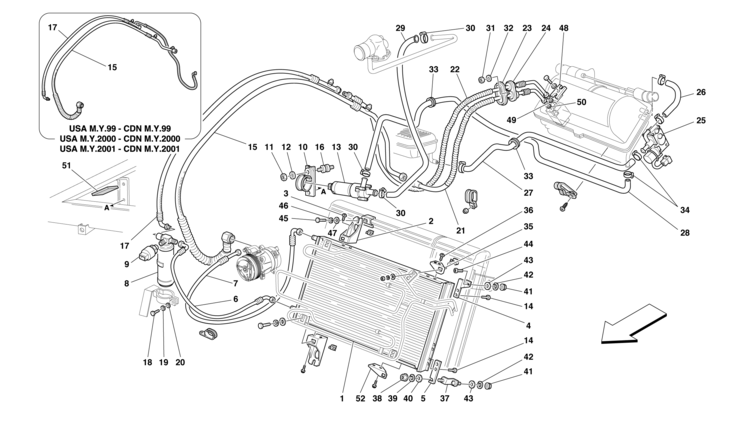

Table 56 - AIR CONDITIONING SYSTEM

Ref.Part#Qty.DescriptionPrice
11653951
A.C. CONDENSER
$813.67

Part#: 165395 Qty: 1$813.67

21684812
R.H. BRACKET A.C. CONDENSER SUPPORT

Part#: 168481 Qty: 2

31651364
SCREW

Part#: 165136 Qty: 4

41655611
L.H. UPPER BRACKET

Part#: 165561 Qty: 1

51680681
L.H. LOWER BRACKET

Part#: 168068 Qty: 1

6649186001
PIPE FROM CONDENSER TO DEHYDRATOR FILTER
$394.15

Part#: 64918600 Qty: 1$394.15

7649187001
PIPE FROM COMPRESSOR TO CONDENSER
$570.81

Part#: 64918700 Qty: 1$570.81

8648942001
DEHYDRATOR FILTER
$135.65

Part#: 64894200 Qty: 1$135.65

9647997001
A.C. PRESSOSTAT -Not as spare part now- -Replaced by 66374400-

Part#: 64799700 Qty: 1

9663744001
A.C. PRESSOSTAT
$326.79

Part#: 66374400 Qty: 1$326.79

10639949001
COMPLETE BRACKET

Part#: 63994900 Qty: 1

11158962142
NUT
$0.75

Part#: 15896214 Qty: 2$0.75

12105715702
WASHER

Part#: 10571570 Qty: 2

13617879001
WATER PUMP -Valid till car Ass. Nr. 27497-

Part#: 61787900 Qty: 1

13654886001
WATER PUMP -Valid from car Ass. Nr. 27498 and valid till car Ass. Nr. 32956- -Valid till car Ass. Nr. 33072 USA M.Y. 99-

Part#: 65488600 Qty: 1

13654603001
WATER PUMP -Valid from car Ass. Nr. 32957- -Valid from car Ass. Nr. 33073 USA M.Y. 99-
$603.01

Part#: 65460300 Qty: 1$603.01

141651374
SCREW

Part#: 165137 Qty: 4

15651903001
PIPE FROM HOSE TO COMPRESSOR -Not for GD- -Not for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 65190300 Qty: 1

15658576001
PIPE FROM HOSE TO COMPRESSOR -Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 65857600 Qty: 1

15652380001
PIPE FROM HOSE TO COMPRESSOR -Valid for GD-

Part#: 65238000 Qty: 1

161422022
ANTI-VIBRATION SUPPORT
$44.91

Part#: 142202 Qty: 2$44.91

17648276001
PIPE FROM DEHYDRATOR FILTER TO HOSE -Not for GD- -Not for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 64827600 Qty: 1

17658569001
PIPE FROM DEHYDRATOR FILTER TO HOSE -Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 and CDN M.Y. 2001-

Part#: 65856900 Qty: 1

17652379001
PIPE FROM DEHYDRATOR FILTER TO HOSE -Valid for GD-

Part#: 65237900 Qty: 1

18109023241
SCREW
$0.50

Part#: 10902324 Qty: 1$0.50

191274941
WASHER
$0.65

Part#: 127494 Qty: 1$0.65

20126437241
WASHER
$0.29

Part#: 12643724 Qty: 1$0.29

21647912001
HOSE FROM EVAPORATOR TO PIPE -Not for GD-
$362.93

Part#: 64791200 Qty: 1$362.93

21652377001
HOSE FROM EVAPORATOR TO PIPE -Valid for GD-

Part#: 65237700 Qty: 1

22647913001
HOSE FROM PIPE TO EVAPORATOR -Not for GD-
$342.20

Part#: 64791300 Qty: 1$342.20

22652378001
HOSE FROM PIPE TO EVAPORATOR -Valid for GD-

Part#: 65237800 Qty: 1

23639619001
PIPE-HOLDER FRAME

Part#: 63961900 Qty: 1

24639618001
RUBBER PIPE-HOLDER

Part#: 63961800 Qty: 1

25649990001
VALVE
$352.59

Part#: 64999000 Qty: 1$352.59

26652010001
RETURN PIPE FROM EVAPORATOR TO VALVE
$35.46

Part#: 65201000 Qty: 1$35.46

27652011001
RETURN PIPE FROM VALVE TO NOURICE -Not for GD-

Part#: 65201100 Qty: 1

27652376001
RETURN PIPE FROM VALVE TO NOURICE -Valid for GD-
$104.29

Part#: 65237600 Qty: 1$104.29

28651282001
DELIVERY PIPE FROM PUMP TO EVAPORATOR -Not for GD-

Part#: 65128200 Qty: 1

28652375001
DELIVERY PIPE FROM PUMP TO EVAPORATOR -Valid for GD-

Part#: 65237500 Qty: 1

29651223001
DELIVERY PIPE FROM ENGINE TO PUMP -Not for GD-
$952.22

Part#: 65122300 Qty: 1$952.22

29652381001
DELIVERY PIPE FROM ENGINE TO PUMP -Valid for GD-

Part#: 65238100 Qty: 1

301903452
SCREW COLLAR

Part#: 190345 Qty: 2

311691802
NUT
$0.25

Part#: 169180 Qty: 2$0.25

32126381242
WASHER
$0.29

Part#: 12638124 Qty: 2$0.29

33103969802
CABLE GROMMET

Part#: 10396980 Qty: 2

34130004902
SCREW COLLAR
$1.90

Part#: 13000490 Qty: 2$1.90

351694631
BRACKET

Part#: 169463 Qty: 1

361651366
SCREW

Part#: 165136 Qty: 6

371569891
SMALL PLATE

Part#: 156989 Qty: 1

38158962141
NUT
$0.75

Part#: 15896214 Qty: 1$0.75

391274941
WASHER
$0.65

Part#: 127494 Qty: 1$0.65

40126476241
WASHER
$0.96

Part#: 12647624 Qty: 1$0.96

41158962142
NUT
$0.75

Part#: 15896214 Qty: 2$0.75

421274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

43126482242
WASHER

Part#: 12648224 Qty: 2

44147788141
SCREW

Part#: 14778814 Qty: 1

45109021242
SCREW
$0.65

Part#: 10902124 Qty: 2$0.65

461274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65

47144964242
WASHER

Part#: 14496424 Qty: 2

481758361
BRACKET

Part#: 175836 Qty: 1

491758351
O.R. GASKET

Part#: 175835 Qty: 1

501776551
O.R. GASKET

Part#: 177655 Qty: 1

51653576001
ANTI-VIBRATION GASKET -Valid for GD- -Valid from car Ass. Nr. 33515-

Part#: 65357600 Qty: 1

521775071
BRACKET -Valid from car Ass. Nr. 29471-

Part#: 177507 Qty: 1
