Table 132

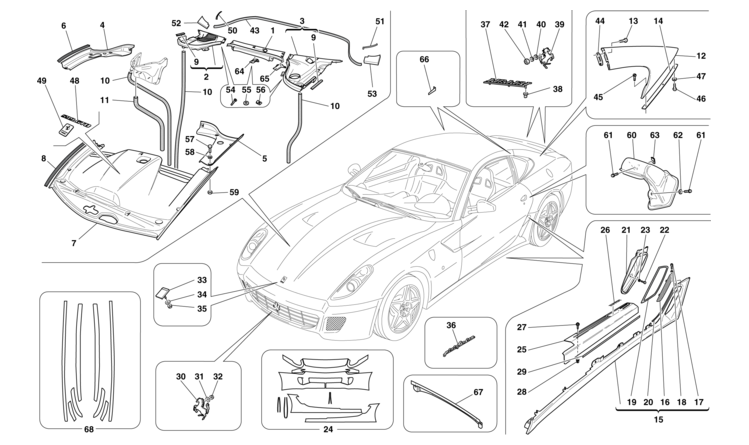

Table 132 - EXTERIOR TRIM

Ref.Part#Qty.DescriptionPrice
1685629001
CENTRAL UNDERWINDSCREEN TRAY -Not for GD-

Part#: 68562900 Qty: 1

1691316001
CENTRAL UNDERWINDSCREEN TRAY -Applicable for GD-

Part#: 69131600 Qty: 1

2690177001
RH UNDERWINDSCREEN TRAY -Not for GD-

Part#: 69017700 Qty: 1

2691314001
RH UNDERWINDSCREEN TRAY -Applicable for GD-

Part#: 69131400 Qty: 1

3685628001
LH UNDERWINDSCREEN TRAY -Not for GD-

Part#: 68562800 Qty: 1

3691315001
LH UNDERWINDSCREEN TRAY -Applicable for GD-

Part#: 69131500 Qty: 1

4685636001
RH COVER -Standard-

Part#: 68563600 Qty: 1

4802074001
RH COVER -Carbon-

Part#: 80207400 Qty: 1

5685637001
LH COVER -Standard-

Part#: 68563700 Qty: 1

5802075001
LH COVER -Carbon-

Part#: 80207500 Qty: 1

6691352002
GASKET

Part#: 69135200 Qty: 2

7685638001
CENTRAL COVER -Standard- -Not for J-
$1474.95

Part#: 68563800 Qty: 1$1474.95

7697171001
CENTRAL COVER -Standard- -Applicable for J-

Part#: 69717100 Qty: 1

7802072001
CENTRAL COVER -Carbon- -Not for J-

Part#: 80207200 Qty: 1

7802073001
CENTRAL COVER -Carbon- -Applicable for J-

Part#: 80207300 Qty: 1

8691351002
ENGINE COVER GASKET

Part#: 69135100 Qty: 2

9693574001
UNDERWINDSCREEN TRAY SEAL

Part#: 69357400 Qty: 1

9699543001
LH UNDERWINDSCREEN TRAY SEAL -No longer supplied- -Replaced by 69357400-

Part#: 69954300 Qty: 1

9693574001
UNDERWINDSCREEN TRAY SEAL -Replaces 69954300-

Part#: 69357400 Qty: 1

9693575002
LATERAL SEAL

Part#: 69357500 Qty: 2

10676205003
WATER DRAIN PIPE

Part#: 67620500 Qty: 3

11676206001
WATER DRAIN PIPE

Part#: 67620600 Qty: 1

12693520111
RH RECESS

Part#: 69352011 Qty: 1

12693521111
LH RECESS

Part#: 69352111 Qty: 1

13653774004
SCREW -For dark colours-
$2.55

Part#: 65377400 Qty: 4$2.55

13697173004
SCREW -For light colours-

Part#: 69717300 Qty: 4

14693553002
GASKET
$10.80

Part#: 69355300 Qty: 2$10.80

15692573101
LH SILL TRIM -Applicable up to Ass. No. 87312-

Part#: 69257310 Qty: 1

15826433101
LH SILL TRIM -Applicable from Ass. No. 87313-
$2902.30

Part#: 82643310 Qty: 1$2902.30

15692572101
RH SILL TRIM -Applicable up to Ass. No. 87312-

Part#: 69257210 Qty: 1

15826432101
RH SILL TRIM -Applicable from Ass. No. 87313-

Part#: 82643210 Qty: 1

16692576001
RH GRILLE

Part#: 69257600 Qty: 1

16692577001
LH GRILLE

Part#: 69257700 Qty: 1

17156880758
SCREW
$1.92

Part#: 15688075 Qty: 8$1.92

18105192788
WASHER
$0.33

Part#: 10519278 Qty: 8$0.33

19693507002
GASKET

Part#: 69350700 Qty: 2

20693509001
RH GASKET

Part#: 69350900 Qty: 1

20693510001
LH GASKET

Part#: 69351000 Qty: 1

21687853001
LH AIR DUCT

Part#: 68785300 Qty: 1

21687852001
RH AIR DUCT

Part#: 68785200 Qty: 1

22162860274
SCREW

Part#: 16286027 Qty: 4

23126437784
WASHER
$0.30

Part#: 12643778 Qty: 4$0.30

24698571001
ADHESIVE PROTECTION FILM FOR RH FRONT WHEELHOUSE -Applicable until depletion-

Part#: 69857100 Qty: 1

24698572001
ADHESIVE PROTECTION FILM FOR LH FRONT WHEELHOUSE -Applicable until depletion-

Part#: 69857200 Qty: 1

24698574001
ADHESIVE PROTECTION FILM FOR LH FRONT SILL TRIM PANEL -No longer supplied- -Replaced by 69857300-

Part#: 69857400 Qty: 1

24698573002
ADHESIVE PROTECTION FILM FOR FRONT SILL TRIM PANEL -Applicable until depletion-

Part#: 69857300 Qty: 2

24698575001
ADHESIVE PROTECTION FILM FOR UPPER RH REAR BUMPER. -Applicable until depletion-

Part#: 69857500 Qty: 1

24698576001
ADHESIVE PROTECTION FILM FOR LH UPPER REAR BUMPER. -Applicable until depletion-

Part#: 69857600 Qty: 1

24698577001
ADHESIVE PROTECTION FILM FOR LOWER RH REAR BUMPER. -Applicable until depletion-

Part#: 69857700 Qty: 1

24698578001
ADHESIVE PROTECTION FILM FOR LH LOWER REAR BUMPER. -Applicable until depletion-

Part#: 69857800 Qty: 1

24698583001
ADHESIVE PROTECTION FILM FOR RH AIR INTAKE -Applicable until depletion-

Part#: 69858300 Qty: 1

24698584001
ADHESIVE PROTECTION FILM FOR LH AIR INTAKE -Applicable until depletion-

Part#: 69858400 Qty: 1

24699532001
INTERNAL ADHESIVE PROTECTION FILM FOR RH AIR INTAKE -Applicable until depletion-

Part#: 69953200 Qty: 1

24699533001
INTERNAL ADHESIVE PROTECTION FILM FOR LH AIR INTAKE -Applicable until depletion-

Part#: 69953300 Qty: 1

24700012011
FILM KIT -Not for USA, CDN-

Part#: 70001201 Qty: 1

24700014161
FILM KIT -Applicable for USA, CDN-

Part#: 70001416 Qty: 1

24700012021
LH SIDE FILM KIT -Mirror, front wheelhouse interior, miniskirt, air intake and rear wheelhouse interior-

Part#: 70001202 Qty: 1

24700012031
RH SIDE FILM KIT -Mirror, front wheelhouse interior, miniskirt, air intake and rear wheelhouse interior-

Part#: 70001203 Qty: 1

24700012041
FRONT KIT -Lid, LH front fender, RH front fender and bumper- -Not for USA, CDN-

Part#: 70001204 Qty: 1

24700014171
FRONT KIT -Lid, LH front fender, RH front fender and bumper- -Applicable for USA, CDN-

Part#: 70001417 Qty: 1

25685633001
LH SILL TRIM PANEL -Standard-

Part#: 68563300 Qty: 1

25693649001
LH SILL TRIM PANEL -Carbon version-
$3451.10

Part#: 69364900 Qty: 1$3451.10

25832871001
LH SILL TRIM PANEL -HGTE 60 F1 version-

Part#: 83287100 Qty: 1

25685632001
RH SILL TRIM PANEL -Standard-

Part#: 68563200 Qty: 1

25693648001
RH SILL TRIM PANEL -Carbon version-
$3451.10

Part#: 69364800 Qty: 1$3451.10

25832868001
RH SILL TRIM PANEL -HGTE 60 F1 version-
$1761.00

Part#: 83286800 Qty: 1$1761.00

26693739002
''FERRARI'' BADGE -Carbon version-
$255.91

Part#: 69373900 Qty: 2$255.91

27156888756
SCREW
$0.14

Part#: 15688875 Qty: 6$0.14

28141154806
BLOCK
$0.69

Part#: 14115480 Qty: 6$0.69

29693563002
GASKET -No longer supplied- -Replaced by 65858500-

Part#: 69356300 Qty: 2

29658585002
RUBBER MOULDING
$52.79

Part#: 65858500 Qty: 2$52.79

30671652001
CAVALLINO RAMPANTE BADGE -Standard-
$130.16

Part#: 67165200 Qty: 1$130.16

30824693001
CAVALLINO RAMPANTE BADGE -Applicable for HGTE and HGTE 60 F1 versions-

Part#: 82469300 Qty: 1

31126004742
WASHER

Part#: 12600474 Qty: 2

32161017112
NUT
$0.75

Part#: 16101711 Qty: 2$0.75

33626731001
FRONT BADGE -No longer supplied- -Replaced by 65394800-
$287.77

Part#: 62673100 Qty: 1$287.77

33653948001
FRONT BADGE
$344.76

Part#: 65394800 Qty: 1$344.76

34126381241
WASHER
$0.29

Part#: 12638124 Qty: 1$0.29

351136471
NUT
$0.21

Part#: 113647 Qty: 1$0.21

36682926002
PININFARINA BADGE -Applicable until depletion-

Part#: 68292600 Qty: 2

36816045002
PININFARINA BADGE -Applicable after depletion of 68292600-
$118.74

Part#: 81604500 Qty: 2$118.74

37634822001
''FERRARI'' BADGE
$129.55

Part#: 63482200 Qty: 1$129.55

38603245063
CLIP
$2.32

Part#: 60324506 Qty: 3$2.32

39632339001
REAR CAVALLINO BADGE -Standard- -No longer supplied- -Replaced by 80214400-
$164.00

Part#: 63233900 Qty: 1$164.00

39802144001
REAR CAVALLINO BADGE -Standard-
$123.50

Part#: 80214400 Qty: 1$123.50

39824702001
REAR CAVALLINO BADGE -Applicable for HGTE and HGTE 60 F1 versions-
$135.42

Part#: 82470200 Qty: 1$135.42

40105192242
WASHER
$0.12

Part#: 10519224 Qty: 2$0.12

41609951002
RUBBER RING
$3.63

Part#: 60995100 Qty: 2$3.63

42627903002
NUT
$0.24

Part#: 62790300 Qty: 2$0.24

43691252001
UNDERWINDSCREEN SEAL

Part#: 69125200 Qty: 1

44693552002
BRACKET

Part#: 69355200 Qty: 2

45693550004
PIN

Part#: 69355000 Qty: 4

46162860242
SCREW
$0.36

Part#: 16286024 Qty: 2$0.36

47126204742
WASHER
$0.15

Part#: 12620474 Qty: 2$0.15

48697143001
''599GTB'' BADGE -Not for J-
$202.14

Part#: 69714300 Qty: 1$202.14

48699698001
''599GTB'' BADGE -Applicable for J-

Part#: 69969800 Qty: 1

49697144001
SERIAL NUMBER PLATE

Part#: 69714400 Qty: 1

50699549001
RH GASKET -No longer supplied-

Part#: 69954900 Qty: 1

51699550001
LH GASKET -No longer supplied-

Part#: 69955000 Qty: 1

52699547001
RH INSULATION -No longer supplied-

Part#: 69954700 Qty: 1

53699548001
LH INSULATION -No longer supplied-

Part#: 69954800 Qty: 1

54156727772
SCREW

Part#: 15672777 Qty: 2

5416813310
SCREW -No longer supplied- -Replaced by 169815-
$1.95

Part#: 168133 Qty: 10$1.95

5416981510
SCREW -M5 X 20-
$2.50

Part#: 169815 Qty: 10$2.50

551263817810
WASHER -No longer supplied- -Replaced by 12638177-
$1.00

Part#: 12638178 Qty: 10$1.00

551263817710
WASHER -No longer supplied- -Replaced by 12638178-

Part#: 12638177 Qty: 10

551263817810
WASHER
$1.00

Part#: 12638178 Qty: 10$1.00

56681198004
PLATE FOR SCREW
$2.97

Part#: 68119800 Qty: 4$2.97

57698547004
SCREW
$6.50

Part#: 69854700 Qty: 4$6.50

58135794784
WASHER
$0.65

Part#: 13579478 Qty: 4$0.65

591778092
CAGE NUT -Th. 2.6 mm-

Part#: 177809 Qty: 2

59629239002
CAGE NUT -Th. 1.2 mm- -No longer supplied- -Replaced by 80984500-
$0.79

Part#: 62923900 Qty: 2$0.79

59809845002
CAGE NUT -Th. 1.2-1.6 mm-

Part#: 80984500 Qty: 2

60687854001
AIR DUCT

Part#: 68785400 Qty: 1

61162969242
SCREW
$0.50

Part#: 16296924 Qty: 2$0.50

62126476241
WASHER
$0.96

Part#: 12647624 Qty: 1$0.96

63141890711
SCREW CLIP
$1.49

Part#: 14189071 Qty: 1$1.49

64671357001
SURROUND FASTENER BRACKET

Part#: 67135700 Qty: 1

65690184001
LH SURROUND FASTENER BRACKET -Not for GD-

Part#: 69018400 Qty: 1

65691346001
RH SURROUND FASTENER BRACKET -Applicable for GD-

Part#: 69134600 Qty: 1

66693692001
RH ADHESIVE FILM

Part#: 69369200 Qty: 1

66693693001
LH ADHESIVE FILM

Part#: 69369300 Qty: 1

67811593001
CENTRAL REAR COVER -Carbon-

Part#: 81159300 Qty: 1

68700019451
HIGH WEAR FILM KIT

Part#: 70001945 Qty: 1
