Table 54

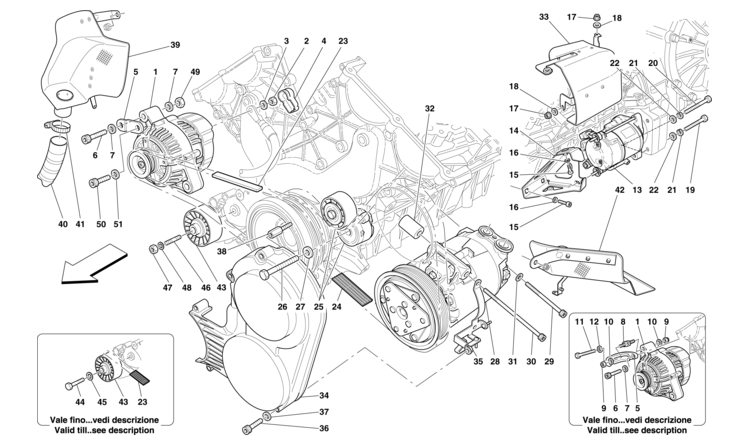

Table 54 - ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR

Ref.Part#Qty.DescriptionPrice
12119401
150 A ALTERNATOR -Applicable until depletion-

Part#: 211940 Qty: 1

12503681
150 A ALTERNATOR -Applicable for air duct 229323 ref. 39- -Applicable up to engine No. 169647- -Applicable after depletion of 211940- -Applicable until depletion-

Part#: 250368 Qty: 1

12638321
150 A ALTERNATOR -Applicable for air duct 266427 ref. 39- -Applicable from engine No. 169648- -Applicable after depletion of 250368-

Part#: 263832 Qty: 1

2161023141
NUT
$1.29

Part#: 16102314 Qty: 1$1.29

3126013741
WASHER
$0.49

Part#: 12601374 Qty: 1$0.49

41548031
PROTECTIVE CAP
$16.75

Part#: 154803 Qty: 1$16.75

52124301
UPPER BRACKET -Not for GD-

Part#: 212430 Qty: 1

52124301
UPPER BRACKET -Not for USA, CDN, GD- -Applicable up to engine No. 122778-

Part#: 212430 Qty: 1

52124301
UPPER BRACKET -Applicable for USA, CDN- -Applicable up to engine No. 124965-

Part#: 212430 Qty: 1

52242371
UPPER BRACKET -Reduced consumption- -Applicable for GD-

Part#: 224237 Qty: 1

52242371
UPPER BRACKET -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-

Part#: 224237 Qty: 1

52242371
UPPER BRACKET -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966-

Part#: 224237 Qty: 1

6143078241
SCREW

Part#: 14307824 Qty: 1

7111905741
WASHER -Not for GD- -Applicable up to engine No. 122778-

Part#: 11190574 Qty: 1

7111905741
WASHER -Applicable for GD-

Part#: 11190574 Qty: 1

7111905741
WASHER -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-

Part#: 11190574 Qty: 1

7111905741
WASHER -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966-

Part#: 11190574 Qty: 1

82125801
THREADED PIN -Not for USA, CDN- -Applicable up to engine No. 122778-

Part#: 212580 Qty: 1

82125801
THREADED PIN -Applicable for USA, CDN- -Applicable up to engine No. 124965-

Part#: 212580 Qty: 1

91011392
NUT -Not for USA, CDN- -Applicable up to engine No. 122778-
$1.90

Part#: 101139 Qty: 2$1.90

91011392
NUT -Applicable for USA, CDN- -Applicable up to engine No. 124965-
$1.90

Part#: 101139 Qty: 2$1.90

10135783112
WASHER -Not for USA, CDN- -Applicable up to engine No. 122778-

Part#: 13578311 Qty: 2

10126467242
WASHER -Applicable for USA, CDN- -Applicable up to engine No. 124965-
$0.25

Part#: 12646724 Qty: 2$0.25

111494231
SCREW -Not for USA, CDN- -Applicable up to engine No. 122778-

Part#: 149423 Qty: 1

111494231
SCREW -Applicable for USA, CDN- -Applicable up to engine No. 124965-

Part#: 149423 Qty: 1

12111938741
WASHER -Not for USA, CDN- -Applicable up to engine No. 122778-
$0.10

Part#: 11193874 Qty: 1$0.10

12111938741
WASHER -Applicable for USA, CDN- -Applicable up to engine No. 124965-
$0.10

Part#: 11193874 Qty: 1$0.10

131801691
STARTER MOTOR
$559.83

Part#: 180169 Qty: 1$559.83

142220031
STARTER MOTOR MOUNTING BRACKET

Part#: 222003 Qty: 1

15143028243
SCREW
$0.50

Part#: 14302824 Qty: 3$0.50

16111938743
WASHER
$0.10

Part#: 11193874 Qty: 3$0.10

171604723
NUT

Part#: 160472 Qty: 3

18611487003
WASHER

Part#: 61148700 Qty: 3

19160446242
SCREW

Part#: 16044624 Qty: 2

20160454241
SCREW

Part#: 16045424 Qty: 1

211274963
WASHER
$0.50

Part#: 127496 Qty: 3$0.50

22105196243
WASHER
$0.20

Part#: 10519624 Qty: 3$0.20

232195951
ALTERNATOR BELT -Not for GD-
$37.58

Part#: 219595 Qty: 1$37.58

232195951
ALTERNATOR BELT -Not for USA, CDN, GD- -Applicable up to engine No. 122778-
$37.58

Part#: 219595 Qty: 1$37.58

232195951
ALTERNATOR BELT -Applicable for USA, CDN- -Applicable up to engine No. 124965-
$37.58

Part#: 219595 Qty: 1$37.58

231827201
ALTERNATOR BELT -Applicable for GD- -Applicable until depletion-
$82.98

Part#: 182720 Qty: 1$82.98

231827201
ALTERNATOR BELT -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779- -Applicable until depletion-
$82.98

Part#: 182720 Qty: 1$82.98

231827201
ALTERNATOR BELT -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966- -Applicable until depletion-
$82.98

Part#: 182720 Qty: 1$82.98

232444691
ALTERNATOR BELT -Applicable for GD- -Applicable after depletion of 182720-
$60.28

Part#: 244469 Qty: 1$60.28

232444691
ALTERNATOR BELT -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779- -Applicable after depletion of 182720-
$60.28

Part#: 244469 Qty: 1$60.28

232444691
ALTERNATOR BELT -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966- -Applicable after depletion of 182720-
$60.28

Part#: 244469 Qty: 1$60.28

241959921
COMPRESSOR DRIVE BELT
$54.25

Part#: 195992 Qty: 1$54.25

251754361
BELT TENSIONER -Applicable until depletion-

Part#: 175436 Qty: 1

252336441
BELT TENSIONER -Applicable after depletion of 175436-
$165.61

Part#: 233644 Qty: 1$165.61

26160444311
SCREW
$1.50

Part#: 16044431 Qty: 1$1.50

27111938741
WASHER
$0.10

Part#: 11193874 Qty: 1$0.10

282275311
AC SYSTEM COMPRESSOR -No longer supplied- -Replaced by 241559-

Part#: 227531 Qty: 1

282415591
AC SYSTEM COMPRESSOR -Applicable until depletion-

Part#: 241559 Qty: 1

282631761
AC SYSTEM COMPRESSOR -Applicable after depletion of 241559-

Part#: 263176 Qty: 1

29143071241
SCREW -M8 X 90-
$1.75

Part#: 14307124 Qty: 1$1.75

29143020241
SCREW -M8 X 95-
$1.65

Part#: 14302024 Qty: 1$1.65

301754281
SCREW
$2.35

Part#: 175428 Qty: 1$2.35

31111938743
WASHER
$0.10

Part#: 11193874 Qty: 3$0.10

321414961
SHIM

Part#: 141496 Qty: 1

332222441
PROTECTIVE SHIELD

Part#: 222244 Qty: 1

342123451
BELT COVER -Applicable until depletion-

Part#: 212345 Qty: 1

342436381
BELT COVER -Applicable after depletion of 212345-
$96.74

Part#: 243638 Qty: 1$96.74

352250461
BRACKET -No longer supplied- -Replaced by 233796-

Part#: 225046 Qty: 1

352337961
BRACKET

Part#: 233796 Qty: 1

36143056242
SCREW -M6 X 35- -L. 35 mm-
$0.50

Part#: 14305624 Qty: 2$0.50

36143058341
SCREW -M6 X 40-

Part#: 14305834 Qty: 1

36144322242
SCREW -M6 X 22- -L. 22 mm-
$0.25

Part#: 14432224 Qty: 2$0.25

37111977745
WASHER
$0.49

Part#: 11197774 Qty: 5$0.49

382234652
STUD BOLT

Part#: 223465 Qty: 2

392243181
AIR DUCT -Not for USA, CDN- -No longer supplied- -Replaced by 266427-

Part#: 224318 Qty: 1

392243181
AIR DUCT -Applicable for USA, CDN- -No longer supplied- -Replaced by 266427-

Part#: 224318 Qty: 1

392293231
AIR DUCT -Reduced consumption- -Not for USA, CDN- -Applicable from engine No. 122779- -Applicable until depletion-

Part#: 229323 Qty: 1

392293231
AIR DUCT -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966- -Applicable until depletion-

Part#: 229323 Qty: 1

392664271
AIR DUCT -Reduced consumption- -Applicable for alternator 263832 ref. 1- -Applicable after depletion of 229323-

Part#: 266427 Qty: 1

402196431
AIR DELIVERY PIPE

Part#: 219643 Qty: 1

41130008902
SCREW COLLAR -No longer supplied- -Replaced by 13000790-
$1.25

Part#: 13000890 Qty: 2$1.25

41130007902
SCREW COLLAR
$1.75

Part#: 13000790 Qty: 2$1.75

422241321
LH SHIELD -No longer supplied- -Replaced by 229851-

Part#: 224132 Qty: 1

422298511
LH SHIELD

Part#: 229851 Qty: 1

431725371
BELT TENSIONER PULLEY -Not for GD-
$151.12

Part#: 172537 Qty: 1$151.12

431725371
BELT TENSIONER PULLEY -Not for USA, CDN, GD- -Applicable up to engine No. 122778-
$151.12

Part#: 172537 Qty: 1$151.12

431725371
BELT TENSIONER PULLEY -Applicable for USA, CDN- -Applicable up to engine No. 124965-
$151.12

Part#: 172537 Qty: 1$151.12

432275091
BELT TENSIONER PULLEY -Applicable for GD-

Part#: 227509 Qty: 1

432275091
BELT TENSIONER PULLEY -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-

Part#: 227509 Qty: 1

432275091
BELT TENSIONER PULLEY -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124965-

Part#: 227509 Qty: 1

44113438211
SCREW -Not for GD-
$1.46

Part#: 11343821 Qty: 1$1.46

44113438211
SCREW -Not for USA, CDN, GD- -Applicable up to engine No. 122778-
$1.46

Part#: 11343821 Qty: 1$1.46

44113438211
SCREW -Applicable for USA, CDN- -Applicable up to engine No. 124965-
$1.46

Part#: 11343821 Qty: 1$1.46

45111883741
WASHER -Not for GD-

Part#: 11188374 Qty: 1

45111883741
WASHER -Not for USA, CDN, GD- -Applicable up to engine No. 122778-

Part#: 11188374 Qty: 1

45111883741
WASHER -Applicable for USA, CDN- -Applicable up to engine No. 124965-

Part#: 11188374 Qty: 1

46134499341
STUD BOLT -Applicable for GD-

Part#: 13449934 Qty: 1

46134499341
STUD BOLT -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-

Part#: 13449934 Qty: 1

46134499341
STUD BOLT -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966-

Part#: 13449934 Qty: 1

471332161
NUT -Applicable for GD-
$10.42

Part#: 133216 Qty: 1$10.42

471332161
NUT -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-
$10.42

Part#: 133216 Qty: 1$10.42

471332161
NUT -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966-
$10.42

Part#: 133216 Qty: 1$10.42

48126014741
WASHER -Applicable for GD-
$0.25

Part#: 12601474 Qty: 1$0.25

48126014741
WASHER -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-
$0.25

Part#: 12601474 Qty: 1$0.25

48126014741
WASHER -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966-
$0.25

Part#: 12601474 Qty: 1$0.25

491027421
NUT -Applicable for GD-
$3.25

Part#: 102742 Qty: 1$3.25

491027421
NUT -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-
$3.25

Part#: 102742 Qty: 1$3.25

491027421
NUT -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966-
$3.25

Part#: 102742 Qty: 1$3.25

50143601241
SCREW -Applicable for GD-

Part#: 14360124 Qty: 1

50143601241
SCREW -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-

Part#: 14360124 Qty: 1

50143601241
SCREW -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966-

Part#: 14360124 Qty: 1

51111905741
WASHER -Applicable for GD-

Part#: 11190574 Qty: 1

51111905741
WASHER -Reduced consumption- -Not for USA, CDN, GD- -Applicable from engine No. 122779-

Part#: 11190574 Qty: 1

51111905741
WASHER -Reduced consumption- -Applicable for USA, CDN- -Applicable from engine No. 124966-

Part#: 11190574 Qty: 1
