Ferrari Philadelphia Parts

Table 131

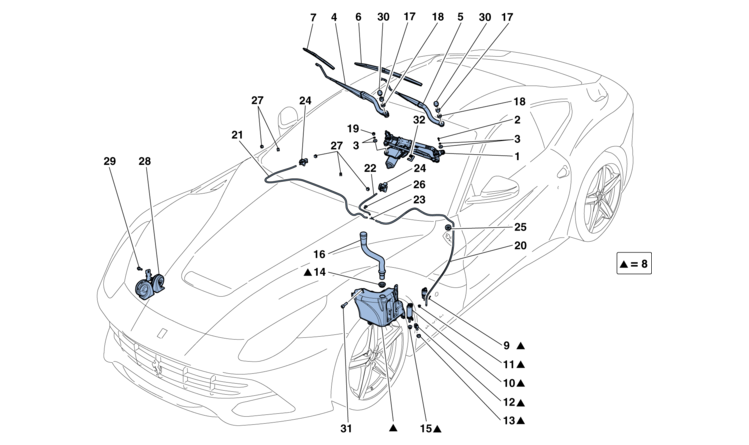

Table 131 - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

Ref.Part#Qty.DescriptionPrice
1837366001
WINDSCREEN WIPER WITH MOTOR AND LINKAGES -Not for GD-

Part#: 83736600 Qty: 1

1850339001
WINDSCREEN WIPER WITH MOTOR AND LINKAGES -Applicable for GD-

Part#: 85033900 Qty: 1

2109028242
SCREW -M6 X 30-
$0.50

Part#: 10902824 Qty: 2$0.50

3126012743
WASHER -D. 6.40-12 X 0.5-
$1.00

Part#: 12601274 Qty: 3$1.00

3126406243
WASHER
$0.39

Part#: 12640624 Qty: 3$0.39

4837367001
PASSENGER SIDE WINDSCREEN WIPER ARM -Not for GD-

Part#: 83736700 Qty: 1

4850338001
PASSENGER SIDE WINDSCREEN WIPER ARM -Applicable for GD-

Part#: 85033800 Qty: 1

5837368001
DRIVER SIDE WINDSCREEN WIPER ARM -Not for GD-

Part#: 83736800 Qty: 1

5850337001
DRIVER SIDE WINDSCREEN WIPER ARM -Applicable for GD-

Part#: 85033700 Qty: 1

6821967001
DRIVER SIDE WINDSCREEN WIPER BLADE -Not for GD-
$112.50

Part#: 82196700 Qty: 1$112.50

6839946001
DRIVER SIDE WINDSCREEN WIPER BLADE -Applicable for GD-

Part#: 83994600 Qty: 1

7821965001
PASSENGER SIDE WINDSCREEN WIPER BLADE -Not for GD-
$76.50

Part#: 82196500 Qty: 1$76.50

7839947001
PASSENGER SIDE WINDSCREEN WIPER BLADE -Applicable for GD-

Part#: 83994700 Qty: 1

8821971001
COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
$557.91

Part#: 82197100 Qty: 1$557.91

9816329001
WINDSCREEN WASHER PUMP
$195.43

Part#: 81632900 Qty: 1$195.43

10816330001
HEADLIGHT WASHER PUMP

Part#: 81633000 Qty: 1

11655117001
GASKET
$8.74

Part#: 65511700 Qty: 1$8.74

12816331001
FLUID LEVEL SENSOR
$166.14

Part#: 81633100 Qty: 1$166.14

13816332001
GASKET
$22.66

Part#: 81633200 Qty: 1$22.66

14821986001
FILLER PIPE SEAL

Part#: 82198600 Qty: 1

15657751001
GASKET
$5.11

Part#: 65775100 Qty: 1$5.11

16842332001
FILLER PIPE

Part#: 84233200 Qty: 1

17107910212
NUT

Part#: 10791021 Qty: 2

18107305142
WASHER
$0.89

Part#: 10730514 Qty: 2$0.89

19140592141
NUT -No longer supplied- -Replaced by 85554200-
$0.50

Part#: 14059214 Qty: 1$0.50

19855542001
NUT

Part#: 85554200 Qty: 1

20844916001
PIPE FROM ELECTRIC PUMP TO CHECK VALVE

Part#: 84491600 Qty: 1

21844917001
PIPE FROM VALVE TO RH NOZZLE

Part#: 84491700 Qty: 1

22844918001
PIPE FROM VALVE TO LH NOZZLE

Part#: 84491800 Qty: 1

23829846001
CHECK VALVE
$9.88

Part#: 82984600 Qty: 1$9.88

24840194002
SPRAY NOZZLE
$7.31

Part#: 84019400 Qty: 2$7.31

25103967801
GROMMET

Part#: 10396780 Qty: 1

26810973001
CLIP

Part#: 81097300 Qty: 1

27145010875
CLIP

Part#: 14501087 Qty: 5

282513471
HORN COMPLETE WITH BRACKET

Part#: 251347 Qty: 1

29159038012
SCREW

Part#: 15903801 Qty: 2

30158117872
PROTECTIVE CAP
$2.75

Part#: 15811787 Qty: 2$2.75

31812909003
SCREW
$1.65

Part#: 81290900 Qty: 3$1.65

322896441
CLIP

Part#: 289644 Qty: 1
