Table 127

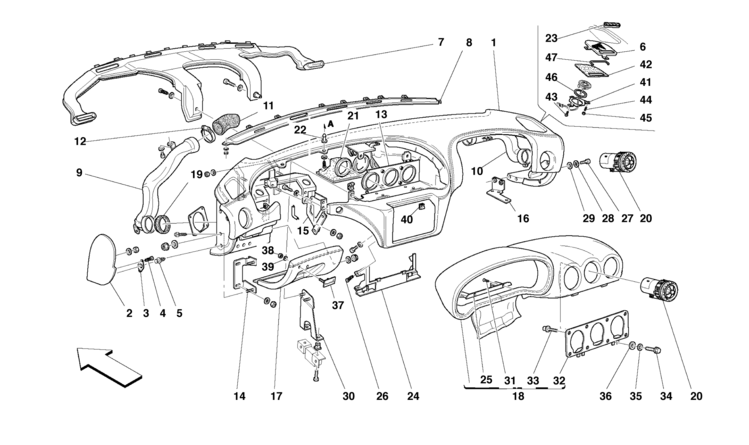

Table 127 - INSTRUMENTS PANEL

Ref.Part#Qty.DescriptionPrice
1690985..1
COVERED DASHBOARD WITH INSTRUMENTS -Not for GD-

Part#: 690985.. Qty: 1

1690986..1
COVERED DASHBOARD WITH INSTRUMENTS -Valid for GD-

Part#: 690986.. Qty: 1

2647665..1
L.H. LATERAL COVER

Part#: 647665.. Qty: 1

2668052..1
L.H. LATERAL COVER -Valid for cars with passenger air-bag exclusion- -Optional- -Valid for GD-

Part#: 668052.. Qty: 1

2647668..1
R.H. LATERAL COVER

Part#: 647668.. Qty: 1

2660807..1
R.H. LATERAL COVER -Valid for cars with passenger air-bag exclusion- -Optional- -Not for GD-

Part#: 660807.. Qty: 1

3647128004
PLATE

Part#: 64712800 Qty: 4

4159148778
SCREW

Part#: 15914877 Qty: 8

5141881814
RETAINER
$1.25

Part#: 14188181 Qty: 4$1.25

6632042001
R.H. TWEETER PLATE
$201.25

Part#: 63204200 Qty: 1$201.25

6632043001
L.H. TWEETER PLATE
$201.25

Part#: 63204300 Qty: 1$201.25

7647074001
AIR DUCTING -Not for GD-

Part#: 64707400 Qty: 1

7650241001
AIR DUCTING -Valid for GD-

Part#: 65024100 Qty: 1

8632021001
WINDSCREEN LOWER ENCLOSURE

Part#: 63202100 Qty: 1

9647062001
L.H. AIR DUCTING -Not for GD-

Part#: 64706200 Qty: 1

9652122001
L.H. AIR DUCTING -Valid for GD-

Part#: 65212200 Qty: 1

10647063001
R.H. AIR DUCTING -Not for GD-

Part#: 64706300 Qty: 1

10652121001
R.H. AIR DUCTING -Valid for GD-

Part#: 65212100 Qty: 1

11647582001
L.H. SLEEVE -Not for GD-

Part#: 64758200 Qty: 1

11652173001
L.H. SLEEVE -Valid for GD-

Part#: 65217300 Qty: 1

11647581001
R.H. SLEEVE -Not for GD-

Part#: 64758100 Qty: 1

11652166001
R.H. SLEEVE -Valid for GD-

Part#: 65216600 Qty: 1

12130008902
SCREW COLLAR
$1.25

Part#: 13000890 Qty: 2$1.25

13647195001
AIR DUCT CONNECTION

Part#: 64719500 Qty: 1

14647015001
DASHBOARD R.H. LATERAL FIXING BRACKET

Part#: 64701500 Qty: 1

14647017001
DASHBOARD L.H. LATERAL FIXING BRACKET

Part#: 64701700 Qty: 1

15662806001
BRACKET -Not for GD-

Part#: 66280600 Qty: 1

15666384001
BRACKET -Valid for GD-

Part#: 66638400 Qty: 1

16668392001
R.H. BRACKET -Not for GD-

Part#: 66839200 Qty: 1

16650247001
L.H. BRACKET -Valid for GD-

Part#: 65024700 Qty: 1

17647591..1
L.H. LOWER COVER -Not for GD-

Part#: 647591.. Qty: 1

17650250..1
R.H. LOWER COVER -Valid for GD-

Part#: 650250.. Qty: 1

18690797..1
COVERED DASH BOARD -Not for GD- -Not as spare part- -Replaced by 666808..-

Part#: 690797.. Qty: 1

18660808..1
COVERED DASH BOARD -Not for GD-

Part#: 660808.. Qty: 1

18692006..1
COVERED DASH BOARD -Valid for GD- -Not as spare part- -Replaced by 666326..-

Part#: 692006.. Qty: 1

18666326..1
COVERED DASH BOARD -Valid for GD-

Part#: 666326.. Qty: 1

19621883002
GASKET

Part#: 62188300 Qty: 2

20668538005
AIR OPENING

Part#: 66853800 Qty: 5

21645874001
UNION FROM EVAPORATOR UNIT TO AIR OPENING -Not for GD-

Part#: 64587400 Qty: 1

21650243001
UNION FROM EVAPORATOR UNIT TO AIR OPENING -Valid for GD-

Part#: 65024300 Qty: 1

22658799003
PIN
$29.10

Part#: 65879900 Qty: 3$29.10

23632040001
R.H. AIR DIFFUSER
$8.15

Part#: 63204000 Qty: 1$8.15

23632041001
L.H. AIR DIFFUSER
$9.75

Part#: 63204100 Qty: 1$9.75

24662801001
CONSOLLE LOWER BRACKET

Part#: 66280100 Qty: 1

25662859001
FRONT CENTRAL BRACKET -Not for GD-

Part#: 66285900 Qty: 1

25667850001
FRONT CENTRAL BRACKET -Valid for GD-

Part#: 66785000 Qty: 1

26156888754
SCREW
$0.14

Part#: 15688875 Qty: 4$0.14

27109021242
SCREW
$0.65

Part#: 10902124 Qty: 2$0.65

28126444242
WASHER
$0.50

Part#: 12644424 Qty: 2$0.50

29126053742
WASHER
$0.22

Part#: 12605374 Qty: 2$0.22

301689611
OBDII CONNECTOR FIXING BRACKET -Not for GD-

Part#: 168961 Qty: 1

301936331
OBDII CONNECTOR FIXING BRACKET -Valid for GD-

Part#: 193633 Qty: 1

31132989172
SCREW

Part#: 13298917 Qty: 2

32666758001
BRACKET FOR AIR OPENINGS FIXING -Not for GD-

Part#: 66675800 Qty: 1

32666380001
BRACKET FOR AIR OPENINGS FIXING -Valid for GD-

Part#: 66638000 Qty: 1

33156888758
SCREW
$0.14

Part#: 15688875 Qty: 8$0.14

34162861244
SCREW

Part#: 16286124 Qty: 4

35126012748
WASHER
$1.00

Part#: 12601274 Qty: 8$1.00

36126437248
WASHER
$0.29

Part#: 12643724 Qty: 8$0.29

37690650101
CAMPIONI DEL MONDO 2004 MARK

Part#: 69065010 Qty: 1

38161017112
NUT
$0.75

Part#: 16101711 Qty: 2$0.75

39125440792
WASHER

Part#: 12544079 Qty: 2

40627663002
CLIP
$0.70

Part#: 62766300 Qty: 2$0.70

41664021001
R.H. BRACKET FOR TWEETER FIXING

Part#: 66402100 Qty: 1

41664022001
L.H. BRACKET FOR TWEETER FIXING

Part#: 66402200 Qty: 1

42666168002
TWEETER COVER

Part#: 66616800 Qty: 2

43157831774
SCREW

Part#: 15783177 Qty: 4

44635281002
THREADED PIN

Part#: 63528100 Qty: 2

45140583112
NUT
$0.21

Part#: 14058311 Qty: 2$0.21

46666169002
ANTI-VIBRATION GASKET

Part#: 66616900 Qty: 2

47654043002
FORK

Part#: 65404300 Qty: 2
