Ferrari Philadelphia Parts

Table 105

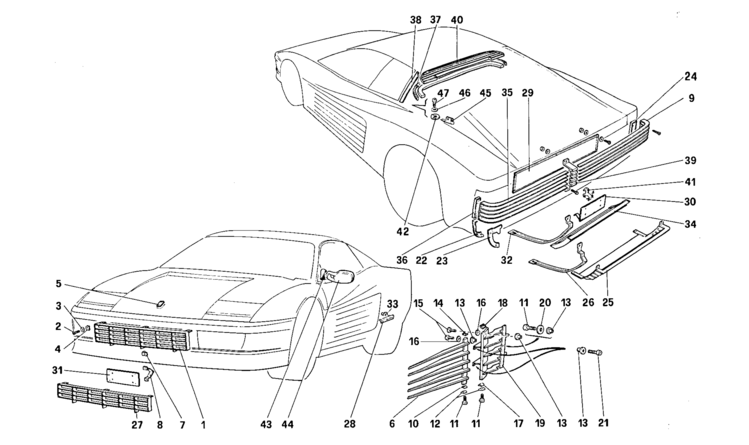

Table 105 - External finishing

Ref.Part#Qty.DescriptionPrice
1614882001
Front grill -Not for CDN
$1475.25

Part#: 61488200 Qty: 1$1475.25

2156441013
Screw
$0.29

Part#: 15644101 Qty: 3$0.29

3105193013
Washer
$0.35

Part#: 10519301 Qty: 3$0.35

4141894763
Fixing spring

Part#: 14189476 Qty: 3

5607954001
Front ornament
$299.25

Part#: 60795400 Qty: 1$299.25

6614884001
Left door grill (Until car no. 80973)

Part#: 61488400 Qty: 1

615754001
Left door grill (From car no. 80974)

Part#: 61575400 Qty: 1

614883001
Right door grill (Until car no. 80973)

Part#: 61488300 Qty: 1

615753001
Right door grill (From car no. 80974)
$1275.00

Part#: 61575300 Qty: 1$1275.00

7614885002
License plate support bracket (For US)
$17.45

Part#: 61488500 Qty: 2$17.45

8614886002
License plate support bracket (For F-l)

Part#: 61488600 Qty: 2

9614906001
Rear R H. grill
$1337.40

Part#: 61490600 Qty: 1$1337.40

10614888001
Lower pad fixing left door grill (Until car No)
$1.70

Part#: 61488800 Qty: 1$1.70

615797001
Lower pad fixing left door grill (From car No)
$10.00

Part#: 61579700 Qty: 1$10.00

614887001
Lower pad fixing right door grill (Until car No)
$1.70

Part#: 61488700 Qty: 1$1.70

615796001
Lower pad fixing right door grill (From car No)
$10.00

Part#: 61579600 Qty: 1$10.00

11133108116
Screw

Part#: 13310811 Qty: 6

12614889004
Special washer
$0.90

Part#: 61488900 Qty: 4$0.90

131562761110
Rivet

Part#: 15627611 Qty: 10

14614890001
Upper pad fixing left door grill (Until car No)
$2.20

Part#: 61489000 Qty: 1$2.20

615795001
Upper pad fixing left door grill (From car No)

Part#: 61579500 Qty: 1

614891001
Upper pad fixing right door grill (Until car No)

Part#: 61489100 Qty: 1

615794001
Upper pad fixing right door grill (From car No)

Part#: 61579400 Qty: 1

15132744724
Screw
$1.25

Part#: 13274472 Qty: 4$1.25

16126241014
Washer
$0.07

Part#: 12624101 Qty: 4$0.07

17614893001
Lower pad fixing left side grill
$9.00

Part#: 61489300 Qty: 1$9.00

614892001
Lower pad fixing right side grill
$1.70

Part#: 61489200 Qty: 1$1.70

18614895001
Upper pad fixing left side grill
$6.73

Part#: 61489500 Qty: 1$6.73

614894001
Upper pad fixing right side grill

Part#: 61489400 Qty: 1

19614897001
Left side grill

Part#: 61489700 Qty: 1

614896001
Right side grill

Part#: 61489600 Qty: 1

20126468012
Washer
$1.30

Part#: 12646801 Qty: 2$1.30

21133110114
Screw

Part#: 13311011 Qty: 4

22614899001
Left pad -Not for CDN
$65.00

Part#: 61489900 Qty: 1$65.00

615480001
Left pad - For CDN
$33.48

Part#: 61548000 Qty: 1$33.48

614898001
Right pad -Not for CDN
$65.00

Part#: 61489800 Qty: 1$65.00

615479001
Right pad - For CDN

Part#: 61547900 Qty: 1

23614901001
Left plate for pad

Part#: 61490100 Qty: 1

614900001
Right plate for pad

Part#: 61490000 Qty: 1

24614908001
Right gasket

Part#: 61490800 Qty: 1

25615318001
Rear underbody grill (For US-SA-CH-CAT)
$799.44

Part#: 61531800 Qty: 1$799.44

26615319001
L.H. grill bracket (For US-SA-CH-CAT)
$147.22

Part#: 61531900 Qty: 1$147.22

815320001
R.H. grill bracket (For US-SA-CH-CAT)

Part#: 81532000 Qty: 1

27615478001
Front grill - For CDN

Part#: 61547800 Qty: 1

28614902002
Pininfarina ornament
$192.00

Part#: 61490200 Qty: 2$192.00

29614903001
Net for engine air exhaust

Part#: 61490300 Qty: 1

38615371001
Rear plate holder (Not for US - SA)

Part#: 61537100 Qty: 1

615372001
Rear plate holder (For US - SA)

Part#: 61537200 Qty: 1

31615369001
Front plate holder - Italia - F - US
$80.00

Part#: 61536900 Qty: 1$80.00

615370001
Front plate holder - CEE - CH

Part#: 61537000 Qty: 1

615559001
Front plate holder - CDN

Part#: 61555900 Qty: 1

32615297001
LH grill bracket (Until car no. 82982) Not for US-SA-CH-CAT

Part#: 61529700 Qty: 1

615296001
RH grill bracket (Until car no. 82982) Not for US - SA - CH - CAT

Part#: 61529600 Qty: 1

615320001
LH grill bracket (From car no. 82983 and for US - SA - CH - CAT
$147.22

Part#: 61532000 Qty: 1$147.22

615319001
RH grill bracket (From car no. 82983 and for US - SA - CH - CAT
$147.22

Part#: 61531900 Qty: 1$147.22

33243800604
Pininfarina name
$0.60

Part#: 24380060 Qty: 4$0.60

34615318001
Rear underbody grill Not for US - SA - CH - CAT
$799.44

Part#: 61531800 Qty: 1$799.44

35614905001
Rear L.H. grill

Part#: 61490500 Qty: 1

36614907001
Pad for rear left grill
$6.75

Part#: 61490700 Qty: 1$6.75

37614999001
Undergrill gasket

Part#: 61499900 Qty: 1

38614911002
Gasket

Part#: 61491100 Qty: 2

39614909001
Grill union

Part#: 61490900 Qty: 1

40614910001
Under rear window grill

Part#: 61491000 Qty: 1

41629843001
Horse (Until exhaustion use PN 62984300)

Part#: 62984300 Qty: 1

42615769001
L.H. bracket
$27.25

Part#: 61576900 Qty: 1$27.25

615770001
R.H. bracket
$18.20

Part#: 61577000 Qty: 1$18.20

43615499001
R.H. cover -LHD (Until car 78847)
$35.00

Part#: 61549900 Qty: 1$35.00

515500001
L.H. cover - LHD (Until car 78847)

Part#: 51550000 Qty: 1

615745001
R.H. cover - LHD (From car 78848)
$37.39

Part#: 61574500 Qty: 1$37.39

615746001
L.H. cover - LHD (From car 78848)
$37.39

Part#: 61574600 Qty: 1$37.39

615687001
R H. cover - RHD (Until car 78847)

Part#: 61568700 Qty: 1

615688001
L.H. cover - RHD (Until car 78847)

Part#: 61568800 Qty: 1

615751001
R.H. cover - RHD (From car 78848)

Part#: 61575100 Qty: 1

615752001
L.H. cover - RHD (From car 78848)

Part#: 61575200 Qty: 1

44615502001
LH outside mirror - LHD (Until car 78847) (Not for US)
$1476.61

Part#: 61550200 Qty: 1$1476.61

615744001
LH outside mirror - LHD (From car 78848) (Not for US)

Part#: 61574400 Qty: 1

615501001
RH outside mirror - LHD (Until car 78847) (Not for US)

Part#: 61550100 Qty: 1

615743001
RH outside mirror - LHD (From car 78848) (Not for US)

Part#: 61574300 Qty: 1

615498001
LH outside mirror - US (Until car 78847)
$1777.50

Part#: 61549800 Qty: 1$1777.50

615742001
LH outside mirror - US (From car 78848)

Part#: 61574200 Qty: 1

615497001
RH outside mirror - US (Until car 78847)
$1885.82

Part#: 61549700 Qty: 1$1885.82

615741001
RH outside mirror - US (From car 78848)

Part#: 61574100 Qty: 1

615556001
LH outside mirror GB-ZA (Until car 78847)

Part#: 61555600 Qty: 1

615750001
LH outside mirror GB-ZA (From car 78848)

Part#: 61575000 Qty: 1

615555001
RH outside mirror GB-ZA (Until car 78847)

Part#: 61555500 Qty: 1

615749001
RH outside mirror GB-ZA (From car 78848)

Part#: 61574900 Qty: 1

615554001
LH outside mirror - AUS (Until car 78847)

Part#: 61555400 Qty: 1

615748001
LH outside mirror - AUS (From car 78848)

Part#: 61574800 Qty: 1

615553001
RH outside mirror - AUS (Until car 78847)

Part#: 61555300 Qty: 1

615747001
RH outside mirror - AUS (From car 78848)

Part#: 61574700 Qty: 1

615675001
RH curved glass assy. (Nat for US)

Part#: 61567500 Qty: 1

615676001
LH curved glass assy. (Not for US)

Part#: 61567600 Qty: 1

615677001
RH flat glass assy. (For US)
$266.67

Part#: 61567700 Qty: 1$266.67

615678001
LH flat glass assy. (For US)

Part#: 61567800 Qty: 1

615679002
Motor assy, for ext. mirror

Part#: 61567900 Qty: 2

45615767001
RH pin
$15.69

Part#: 61576700 Qty: 1$15.69

615768001
LH pin
$15.69

Part#: 61576800 Qty: 1$15.69

46615772002
Washer

Part#: 61577200 Qty: 2

47615771002
Screw

Part#: 61577100 Qty: 2
