Table 23

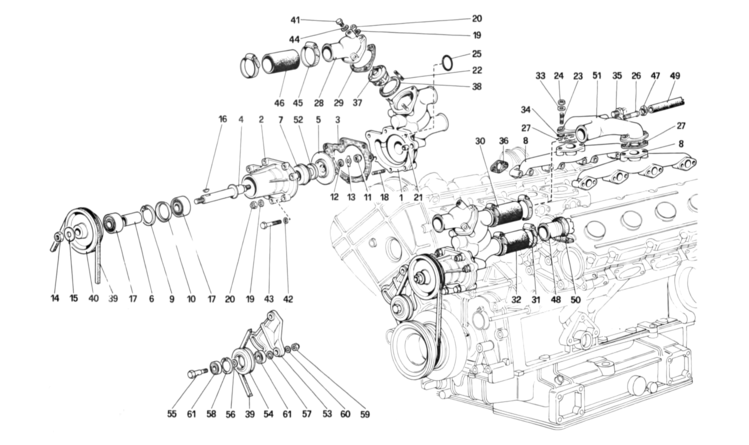

Table 23 - Water pump and pipings

Ref.Part#Qty.DescriptionPrice
121290
Water pump complete

Part#: 121290

121255
Water pump complete (Front)
$550.00

Part#: 121255$550.00

115471
Water pump body, complete
$525.00

Part#: 115471$525.00

11154701
Water pump body With assembly no 115471

Part#: 115470 Qty: 1

21212521
Pump cover With assembly no, 121255

Part#: 121252 Qty: 1

31039521
Gasket -Not for C8

Part#: 103952 Qty: 1

31351211
Gasket - For C8
$10.41

Part#: 135121 Qty: 1$10.41

41212531
Spindle for pulley
$241.70

Part#: 121253 Qty: 1$241.70

51212541
Impeller
$300.84

Part#: 121254 Qty: 1$300.84

61161571
Spacer
$149.04

Part#: 116157 Qty: 1$149.04

71209481
Sealing ring
$70.00

Part#: 120948 Qty: 1$70.00

81169672
Manifold of output water to the heads

Part#: 116967 Qty: 2

9110600761
Seeger ring
$4.80

Part#: 11060076 Qty: 1$4.80

101161581
Washer
$34.25

Part#: 116158 Qty: 1$34.25

111004361
Cap nut
$9.36

Part#: 100436 Qty: 1$9.36

12107303011
Washer

Part#: 10730301 Qty: 1

131004341
Plate
$10.50

Part#: 100434 Qty: 1$10.50

14161015211
Nut

Part#: 16101521 Qty: 1

15111986711
Conic washer

Part#: 11198671 Qty: 1

16102058201
Tongue
$1.15

Part#: 10205820 Qty: 1$1.15

171161592
Bearing
$34.50

Part#: 116159 Qty: 2$34.50

18115007213
Stud

Part#: 11500721 Qty: 3

19126012716
Corrugated washer

Part#: 12601271 Qty: 6

20125742116
Nut

Part#: 12574211 Qty: 6

211027042
Dowel
$3.29

Part#: 102704 Qty: 2$3.29

22115004213
Stud

Part#: 11500421 Qty: 3

23135168214
Stud

Part#: 13516821 Qty: 4

24161008114
Nut

Part#: 16100811 Qty: 4

251051961
Sealing ring
$7.19

Part#: 105196 Qty: 1$7.19

261062411
Union
$36.82

Part#: 106241 Qty: 1$36.82

27111481
Gasket -Not for C8

Part#: 111481

271329811
Gasket - For C8
$9.88

Part#: 132981 Qty: 1$9.88

281051651
Water outlet union

Part#: 105165 Qty: 1

291051891
Gasket
$7.25

Part#: 105189 Qty: 1$7.25

301212581
Sleeve
$53.45

Part#: 121258 Qty: 1$53.45

31121770902
Clamp

Part#: 12177090 Qty: 2

321228171
Sleeve

Part#: 122817 Qty: 1

33111980714
Washer

Part#: 11198071 Qty: 4

341030394
Sealing ring
$1.45

Part#: 103039 Qty: 4$1.45

351046281
Thermistor
$142.44

Part#: 104628 Qty: 1$142.44

361114808
Gasket

Part#: 111480 Qty: 8

371289911
Thermostat
$145.00

Part#: 128991 Qty: 1$145.00

38105192t
Gasket -Not for C8
$16.25

Part#: 105192 Qty: t$16.25

381329801
Gasket - For C8
$3.15

Part#: 132980 Qty: 1$3.15

391216551
Control belt for water pump
$36.50

Part#: 121655 Qty: 1$36.50

401216541
Pulley

Part#: 121654 Qty: 1

41160429401
Screw
$17.60

Part#: 16042940 Qty: 1$17.60

42126013714
Washer

Part#: 12601371 Qty: 4

43160444214
Fixing screw for pump

Part#: 16044421 Qty: 4

44102600601
Gasket
$1.82

Part#: 10260060 Qty: 1$1.82

45121770902
Clamp

Part#: 12177090 Qty: 2

461051901
Sleeve
$28.38

Part#: 105190 Qty: 1$28.38

47121794902
Clamp

Part#: 12179490 Qty: 2

481228571
Tube

Part#: 122857 Qty: 1

491222191
Breather pipe
$33.01

Part#: 122219 Qty: 1$33.01

50617126001
Clamp for pipe

Part#: 61712600 Qty: 1

511169681
Joint piping to manifolds of output water -Not for C8

Part#: 116968 Qty: 1

511346631
Joint piping to manifolds of output water - For C8

Part#: 134663 Qty: 1

521215531
Backplate for ring
$31.00

Part#: 121553 Qty: 1$31.00

531216581
Support

Part#: 121658 Qty: 1

541216591
Pulley
$507.72

Part#: 121659 Qty: 1$507.72

551050481
Pin
$40.26

Part#: 105048 Qty: 1$40.26

561078411
Spacer

Part#: 107841 Qty: 1

571078421
Spacer
$26.71

Part#: 107842 Qty: 1$26.71

58110590761
Seeger
$1.31

Part#: 11059076 Qty: 1$1.31

59161051211
Nut

Part#: 16105121 Qty: 1

601030251
Washer

Part#: 103025 Qty: 1

611050382
Bearing
$25.50

Part#: 105038 Qty: 2$25.50
