Ferrari Philadelphia Parts

Table 116

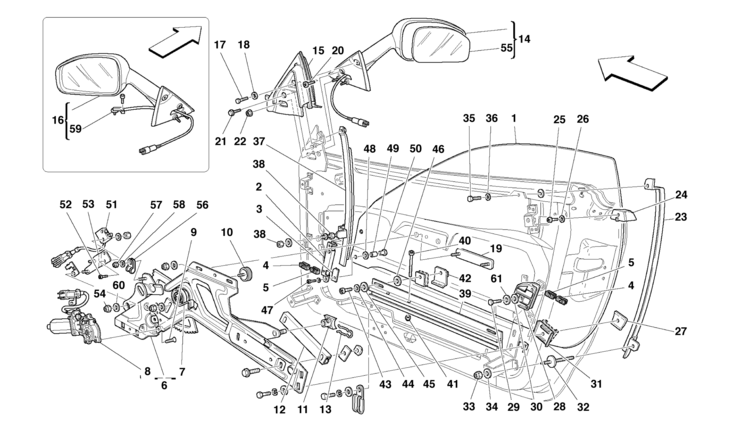

Table 116 - DOORS - POWER WINDOW AND REARVIEW MIRROR

Ref.Part#Qty.DescriptionPrice
1659492001
R.H. DOOR GLASS
$685.23

Part#: 65949200 Qty: 1$685.23

1659493001
L.H. DOOR GLASS

Part#: 65949300 Qty: 1

2637681001
R.H. GUIDE SHOE
$65.89

Part#: 63768100 Qty: 1$65.89

2637682001
L.H. GUIDE SHOE
$67.20

Part#: 63768200 Qty: 1$67.20

3634869002
GASKET

Part#: 63486900 Qty: 2

4637679008
CLIP
$23.54

Part#: 63767900 Qty: 8$23.54

5638901008
GASKET
$8.91

Part#: 63890100 Qty: 8$8.91

6676588001
COMPLETE R.H. DEVICE FOR GLASS LIFT

Part#: 67658800 Qty: 1

6676589001
COMPLETE L.H. DEVICE FOR GLASS LIFT

Part#: 67658900 Qty: 1

7658269002
HELICOIDAL SPRING

Part#: 65826900 Qty: 2

8658196001
R.H. GLASS LIFTING MOTOR
$468.53

Part#: 65819600 Qty: 1$468.53

8658197001
L.H. GLASS LIFTING MOTOR
$318.02

Part#: 65819700 Qty: 1$318.02

9159179048
SCREW

Part#: 15917904 Qty: 8

10658272002
STOP BUFFER

Part#: 65827200 Qty: 2

11640811006
SMALL BLOCK
$5.25

Part#: 64081100 Qty: 6$5.25

12658167002
GUIDE

Part#: 65816700 Qty: 2

13640812006
CLIP

Part#: 64081200 Qty: 6

14675383001
COMPLETE R.H. OUTER REAR VIEW MIRROR -Not for USA, CDN and GD-

Part#: 67538300 Qty: 1

14677799001
COMPLETE R.H. OUTER REAR VIEW MIRROR -Valid for USA and CDN-

Part#: 67779900 Qty: 1

14678368001
COMPLETE R.H. OUTER REAR VIEW MIRROR -Valid for GB-

Part#: 67836800 Qty: 1

14681696001
COMPLETE R.H. OUTER REAR VIEW MIRROR -Valid for AUS-

Part#: 68169600 Qty: 1

15652260001
R.H. OUTER MIRROR GASKET
$916.95

Part#: 65226000 Qty: 1$916.95

15652261001
L.H. OUTER MIRROR GASKET
$916.95

Part#: 65226100 Qty: 1$916.95

16675382001
COMPLETE L.H. OUTER REAR VIEW MIRROR -Not for GD-

Part#: 67538200 Qty: 1

16678367001
COMPLETE L.H. OUTER REAR VIEW MIRROR -Valid for GD-

Part#: 67836700 Qty: 1

16681697001
COMPLETE L.H. OUTER REAR VIEW MIRROR -Valid for USA and CDN-

Part#: 68169700 Qty: 1

17109022242
SCREW
$0.95

Part#: 10902224 Qty: 2$0.95

18126437782
WASHER
$0.30

Part#: 12643778 Qty: 2$0.30

19660752002
BRACKET

Part#: 66075200 Qty: 2

20657132002
SCREW
$1.23

Part#: 65713200 Qty: 2$1.23

21653667002
SCREW
$1.74

Part#: 65366700 Qty: 2$1.74

22138318014
NUT

Part#: 13831801 Qty: 4

23650621001
R.H. REAR GLASS GUIDE

Part#: 65062100 Qty: 1

23650622001
L.H. REAR GLASS GUIDE

Part#: 65062200 Qty: 1

24653107001
R.H. SMALL BLOCK

Part#: 65310700 Qty: 1

24653108001
L.H. SMALL BLOCK

Part#: 65310800 Qty: 1

25132740142
SCREW

Part#: 13274014 Qty: 2

26126381242
WASHER
$0.29

Part#: 12638124 Qty: 2$0.29

27659975001
R.H. PLATE

Part#: 65997500 Qty: 1

27659977001
L.H. PLATE

Part#: 65997700 Qty: 1

28638536001
R.H. MOVING GUIDE
$12.87

Part#: 63853600 Qty: 1$12.87

28638537001
L.H. MOVING GUIDE
$38.70

Part#: 63853700 Qty: 1$38.70

29109030242
SCREW

Part#: 10903024 Qty: 2

30126444242
WASHER
$0.50

Part#: 12644424 Qty: 2$0.50

31631688002
PRELOADING REGULATOR
$4.45

Part#: 63168800 Qty: 2$4.45

32648546002
ADJUSTMENT PIN

Part#: 64854600 Qty: 2

331027412
NUT
$0.75

Part#: 102741 Qty: 2$0.75

34126437782
WASHER
$0.30

Part#: 12643778 Qty: 2$0.30

35138367212
SCREW

Part#: 13836721 Qty: 2

36126437242
WASHER
$0.29

Part#: 12643724 Qty: 2$0.29

37650619001
R.H. FRONT GLASS GUIDE

Part#: 65061900 Qty: 1

37650620001
L.H. FRONT GLASS GUIDE

Part#: 65062000 Qty: 1

38140397144
NUT

Part#: 14039714 Qty: 4

39658282001
R.H. SLIDING GUIDE

Part#: 65828200 Qty: 1

39658283001
L.H. SLIDING GUIDE

Part#: 65828300 Qty: 1

40143037244
SCREW

Part#: 14303724 Qty: 4

41627903004
NUT
$0.24

Part#: 62790300 Qty: 4$0.24

42658073004
PLATE GASKET
$14.42

Part#: 65807300 Qty: 4$14.42

43143054244
SCREW
$2.17

Part#: 14305424 Qty: 4$2.17

44126012794
WASHER
$0.07

Part#: 12601279 Qty: 4$0.07

45126437244
WASHER
$0.29

Part#: 12643724 Qty: 4$0.29

46126476244
WASHER
$0.96

Part#: 12647624 Qty: 4$0.96

47132973774
SCREW
$0.50

Part#: 13297377 Qty: 4$0.50

48627980004
WASHER

Part#: 62798000 Qty: 4

49629328004
SPACER
$1.22

Part#: 62932800 Qty: 4$1.22

50629329004
BUSHING
$4.29

Part#: 62932900 Qty: 4$4.29

511686172
MICRO-SWITCH
$118.14

Part#: 168617 Qty: 2$118.14

52156439754
SCREW -Not as spare part- -Replaced by 15687975-

Part#: 15643975 Qty: 4

52156879754
SCREW

Part#: 15687975 Qty: 4

53659074001
R.H. MOBILE BRACKET

Part#: 65907400 Qty: 1

53659075001
L.H. MOBILE BRACKET
$15.50

Part#: 65907500 Qty: 1$15.50

54140840114
NUT
$0.03

Part#: 14084011 Qty: 4$0.03

55679543001
R.H. OUTER REAR VIEW MIRROR GLASS -Not for USA and CDN-

Part#: 67954300 Qty: 1

55679546001
R.H. OUTER REAR VIEW MIRROR GLASS -Valid for USA and CDN-

Part#: 67954600 Qty: 1

55679545001
L.H. OUTER REAR VIEW MIRROR GLASS -Not for USA and CDN-

Part#: 67954500 Qty: 1

55679544001
L.H. OUTER REAR VIEW MIRROR GLASS -Valid for USA and CDN-

Part#: 67954400 Qty: 1

56104186012
BRACKET

Part#: 10418601 Qty: 2

571027412
NUT
$0.75

Part#: 102741 Qty: 2$0.75

58126444242
WASHER
$0.50

Part#: 12644424 Qty: 2$0.50

59658894001
OUTSIDE TEMPERATURE FEELER
$66.04

Part#: 65889400 Qty: 1$66.04

60135792242
WASHER

Part#: 13579224 Qty: 2

611274942
WASHER
$0.65

Part#: 127494 Qty: 2$0.65
