Table 31

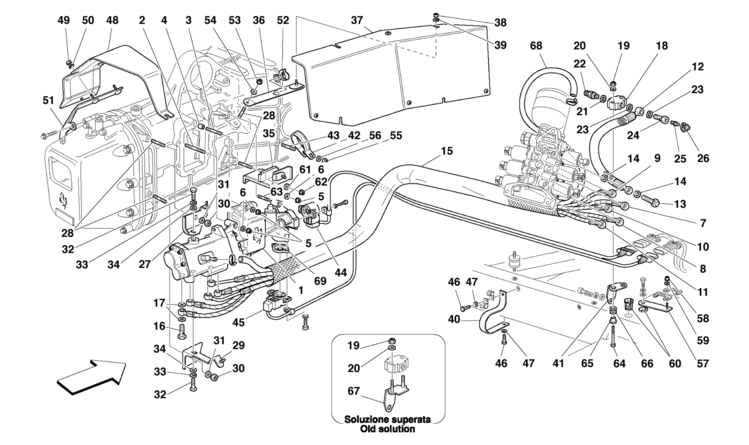

Table 31 - F1 CLUTCH HYDRAULIC CONTROL -Valid for F1

Ref.Part#Qty.DescriptionPrice
1811611
F1 GEARBOX SYSTEM COMPONENTS KIT

Part#: 181161 Qty: 1

11811601
COMPLETE HYDRAULIC ACTUATOR

Part#: 181160 Qty: 1

2115010244
STUD
$5.79

Part#: 11501024 Qty: 4$5.79

3115007242
STUD
$1.37

Part#: 11500724 Qty: 2$1.37

41030382
CENTERING DOWEL
$1.90

Part#: 103038 Qty: 2$1.90

51328778
NUT
$3.25

Part#: 132877 Qty: 8$3.25

6126012798
WASHER
$0.07

Part#: 12601279 Qty: 8$0.07

71793401
PIPE (EV1)
$1794.51

Part#: 179340 Qty: 1$1794.51

81793421
PIPE (EV2)
$2066.00

Part#: 179342 Qty: 1$2066.00

91793431
PIPE (EV3)
$1786.20

Part#: 179343 Qty: 1$1786.20

101793441
PIPE (EV4)
$1977.21

Part#: 179344 Qty: 1$1977.21

111793451
PIPE (EV5)
$1585.48

Part#: 179345 Qty: 1$1585.48

121793481
PIPE FROM PUMP TO BLOCK

Part#: 179348 Qty: 1

131714546
UNION
$48.92

Part#: 171454 Qty: 6$48.92

141026106012
GASKET
$0.50

Part#: 10261060 Qty: 12$0.50

151793461
PROTECTION SHEATH
$967.00

Part#: 179346 Qty: 1$967.00

161714545
UNION
$48.92

Part#: 171454 Qty: 5$48.92

171026106010
GASKET
$0.50

Part#: 10261060 Qty: 10$0.50

181756671
BLOCK

Part#: 175667 Qty: 1

19158962142
NUT
$0.75

Part#: 15896214 Qty: 2$0.75

20126012792
WASHER
$0.07

Part#: 12601279 Qty: 2$0.07

211717551
WASHER

Part#: 171755 Qty: 1

221729651
QUICK MALE COUPLING

Part#: 172965 Qty: 1

23102610602
GASKET
$0.50

Part#: 10261060 Qty: 2$0.50

241716301
UNION

Part#: 171630 Qty: 1

251529541
BLEEDER SCREW
$6.25

Part#: 152954 Qty: 1$6.25

261529551
PROTECTION BOOT
$7.50

Part#: 152955 Qty: 1$7.50

271742571
UPPER ACTUATOR SUPPORT BRACKET

Part#: 174257 Qty: 1

28135164242
STUD
$2.45

Part#: 13516424 Qty: 2$2.45

291742601
LOWER ACTUATOR SUPPORT BRACKET -Valid till stock exhaustion-

Part#: 174260 Qty: 1

291955491
LOWER ACTUATOR SUPPORT BRACKET

Part#: 195549 Qty: 1

30161008142
NUT
$0.45

Part#: 16100814 Qty: 2$0.45

311274962
WASHER
$0.50

Part#: 127496 Qty: 2$0.50

32160431242
SCREW

Part#: 16043124 Qty: 2

331274962
WASHER
$0.50

Part#: 127496 Qty: 2$0.50

34105196242
WASHER
$0.20

Part#: 10519624 Qty: 2$0.20

351808071
PIPES SUPPORTING BRACKET

Part#: 180807 Qty: 1

361816141
SHIELD SUPPORTING BRACKET

Part#: 181614 Qty: 1

371773841
SHIELD FOR ACTUATOR PROTECTION

Part#: 177384 Qty: 1

381604724
NUT

Part#: 160472 Qty: 4

39126378244
WASHER
$0.50

Part#: 12637824 Qty: 4$0.50

401761342
PIPES SUPPORTING BRACKET -Not as spare part replaced by 180782-

Part#: 176134 Qty: 2

401807822
PIPES SUPPORTING BRACKET

Part#: 180782 Qty: 2

411866851
BLOCK SUPPORT BRACKET

Part#: 186685 Qty: 1

421240341
BRACKET WITH SHEATH

Part#: 124034 Qty: 1

43135407241
STUD
$0.80

Part#: 13540724 Qty: 1$0.80

441821561
SELECTION SENSOR -Not as spare part replaced by 181325-

Part#: 182156 Qty: 1

441813251
SELECTION SENSOR
$2093.59

Part#: 181325 Qty: 1$2093.59

451821561
COUPLING SENSOR -Not as spare part replaced by 181325-

Part#: 182156 Qty: 1

451813251
SELECTION SENSOR
$2093.59

Part#: 181325 Qty: 1$2093.59

46109021244
SCREW
$0.65

Part#: 10902124 Qty: 4$0.65

47144964244
WASHER

Part#: 14496424 Qty: 4

481807441
SENSOR PROTECTION SHIELD

Part#: 180744 Qty: 1

491604722
NUT

Part#: 160472 Qty: 2

50126378242
WASHER
$0.50

Part#: 12637824 Qty: 2$0.50

511807451
SHIELD SUPPORTING BRACKET

Part#: 180745 Qty: 1

521645651
CLIP
$6.90

Part#: 164565 Qty: 1$6.90

531777781
NUT
$2.00

Part#: 177778 Qty: 1$2.00

54126385242
WASHER
$0.12

Part#: 12638524 Qty: 2$0.12

551027411
NUT
$0.75

Part#: 102741 Qty: 1$0.75

56126437241
WASHER
$0.29

Part#: 12643724 Qty: 1$0.29

571813441
CONNECTOR FIXING BRACKET

Part#: 181344 Qty: 1

581691801
NUT
$0.25

Part#: 169180 Qty: 1$0.25

59144963241
WASHER
$2.92

Part#: 14496324 Qty: 1$2.92

60658912004
NUT WITH CAGE

Part#: 65891200 Qty: 4

61126385242
WASHER
$0.12

Part#: 12638524 Qty: 2$0.12

621777782
NUT
$2.00

Part#: 177778 Qty: 2$2.00

63115006242
STUD
$1.00

Part#: 11500624 Qty: 2$1.00

64109032242
SCREW
$0.30

Part#: 10903224 Qty: 2$0.30

651497072
SPACER
$1.97

Part#: 149707 Qty: 2$1.97

661775762
CABLE GROMMET
$1.92

Part#: 177576 Qty: 2$1.92

671761421
BLOCK SUPPORT BRACKET

Part#: 176142 Qty: 1

681809651
OIL RECYCLE PIPE
$287.22

Part#: 180965 Qty: 1$287.22

691929111
POTENTIOMETER SUPPORT
$23.57

Part#: 192911 Qty: 1$23.57
