Ferrari Philadelphia Parts

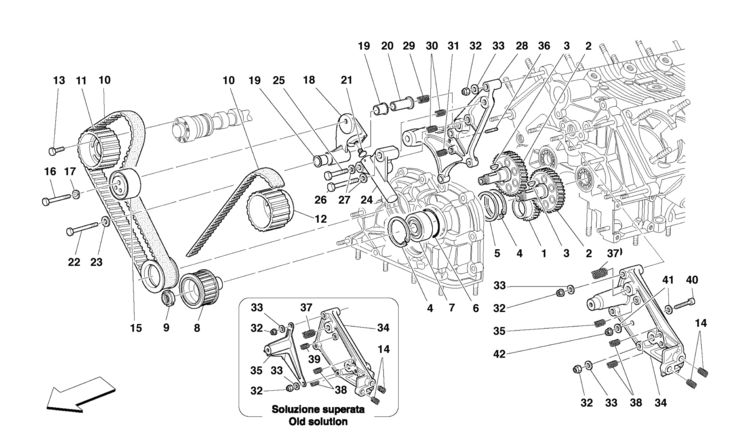

Table 6

Table 6 - TIMING - CONTROLS

Ref.Part#Qty.DescriptionPrice
11605981
DRIVING GEAR

Part#: 160598 Qty: 1

21790792
DRIVEN GEAR -Not as spare part replaced by 181984-

Part#: 179079 Qty: 2

21819842
DRIVEN GEAR -Replaces 179079-

Part#: 181984 Qty: 2

3102063202
DISC KEY
$1.90

Part#: 10206320 Qty: 2$1.90

4110605764
SEEGER RING
$2.50

Part#: 11060576 Qty: 4$2.50

51333772
WASHER
$14.74

Part#: 133377 Qty: 2$14.74

61361402
O.R. GASKET
$1.50

Part#: 136140 Qty: 2$1.50

71707872
BEARING
$81.98

Part#: 170787 Qty: 2$81.98

81542382
DRIVING PULLEY
$1007.60

Part#: 154238 Qty: 2$1007.60

91049192
RING NUT
$4.79

Part#: 104919 Qty: 2$4.79

101849862
TIMING CONTROL BELT -Valid till stock exhaustion-
$164.92

Part#: 184986 Qty: 2$164.92

101849862
TIMING CONTROL BELT
$164.92

Part#: 184986 Qty: 2$164.92

111691542
R.H. EXHAUST INDUCTION DISTRIBUTION PULLEY

Part#: 169154 Qty: 2

121691532
L.H. EXHAUST INDUCTION DISTRIBUTION PULLEY

Part#: 169153 Qty: 2

1318133616
SCREW
$4.75

Part#: 181336 Qty: 16$4.75

14135257702
THREADED INSERT
$3.67

Part#: 13525770 Qty: 2$3.67

151812642
BELT TIGHTENING PULLEY
$308.73

Part#: 181264 Qty: 2$308.73

16113070242
SCREW
$3.98

Part#: 11307024 Qty: 2$3.98

171274972
WASHER
$0.25

Part#: 127497 Qty: 2$0.25

181812532
BELT TIGHTENER ARM
$462.91

Part#: 181253 Qty: 2$462.91

191594254
BUSHING
$5.29

Part#: 159425 Qty: 4$5.29

201581382
BUSHING
$109.66

Part#: 158138 Qty: 2$109.66

211581562
PAWL
$285.20

Part#: 158156 Qty: 2$285.20

22112880342
SCREW
$1.74

Part#: 11288034 Qty: 2$1.74

231843182
WASHER

Part#: 184318 Qty: 2

241573561
R.H. HYDRAULIC TIGHTENER
$501.20

Part#: 157356 Qty: 1$501.20

242027841
L.H. HYDRAULIC TIGHTENER -Not as spare part- -Replaced by 185425-
$798.35

Part#: 202784 Qty: 1$798.35

242027841
L.H. HYDRAULIC TIGHTENER -Not as spare part- -Replaced by 192920-
$798.35

Part#: 202784 Qty: 1$798.35

242027841
L.H. HYDRAULIC TIGHTENER -Valid till engine Nr.83761-
$798.35

Part#: 202784 Qty: 1$798.35

242027841
L.H. HYDRAULIC TIGHTENER -Valid from engine Nr.83762-
$798.35

Part#: 202784 Qty: 1$798.35

251255062
SCREW -Not as spare part- -Replaced by 205693-
$1.08

Part#: 125506 Qty: 2$1.08

252056932
SCREW
$35.00

Part#: 205693 Qty: 2$35.00

26160442342
SCREW -Not as spare part- -Replaced by 185234-
$0.85

Part#: 16044234 Qty: 2$0.85

261852342
SCREW
$41.60

Part#: 185234 Qty: 2$41.60

27126013744
WASHER
$0.49

Part#: 12601374 Qty: 4$0.49

281796351
UPPER BRACKET FOR GENERATOR SUPPORT

Part#: 179635 Qty: 1

29135261701
THREADED INSERT
$5.92

Part#: 13526170 Qty: 1$5.92

30135258702
THREADED INSERT

Part#: 13525870 Qty: 2

31135255701
THREADED INSERT

Part#: 13525570 Qty: 1

321011394
NUT -M 8X8-
$1.90

Part#: 101139 Qty: 4$1.90

321777782
NUT -m8x7-
$2.00

Part#: 177778 Qty: 2$2.00

33126013743
WASHER
$0.49

Part#: 12601374 Qty: 3$0.49

341801681
BELT TIGHTENER SUPPORT AND A.C. COMPRESSOR -Not as spare part replaced by 181822-

Part#: 180168 Qty: 1

341818161
BELT TIGHTENER SUPPORT AND A.C. COMPRESSOR -Not as spare part replaced by 181822-

Part#: 181816 Qty: 1

341818221
BELT TIGHTENER SUPPORT AND A.C. COMPRESSOR -Replaces 180168, 181816, 181302 and 181815- -Valid till engine Nr.83761-
$230.63

Part#: 181822 Qty: 1$230.63

342027861
BELT TIGHTENER SUPPORT AND A.C. COMPRESSOR -Valid from engine Nr.83762-
$630.23

Part#: 202786 Qty: 1$630.23

351813021
BELT TIGHTENING SUPPORT BRACKET -Not as spare part replaced by 181822-

Part#: 181302 Qty: 1

351818151
BELT TIGHTENING SUPPORT BRACKET -Not as spare part replaced by 181822-

Part#: 181815 Qty: 1

36114999241
STUD
$15.42

Part#: 11499924 Qty: 1$15.42

37135261701
THREADED INSERT
$5.92

Part#: 13526170 Qty: 1$5.92

38135258702
THREADED INSERT

Part#: 13525870 Qty: 2

39135255701
THREADED INSERT

Part#: 13525570 Qty: 1

40143064241
SCREW -Valid from engine Nr.82119-
$0.69

Part#: 14306424 Qty: 1$0.69

41126044742
WASHER -Valid from engine Nr.82119-
$0.06

Part#: 12604474 Qty: 2$0.06

421777781
NUT -Valid from engine Nr.82119-
$2.00

Part#: 177778 Qty: 1$2.00
