Ferrari Philadelphia Parts

Table 127

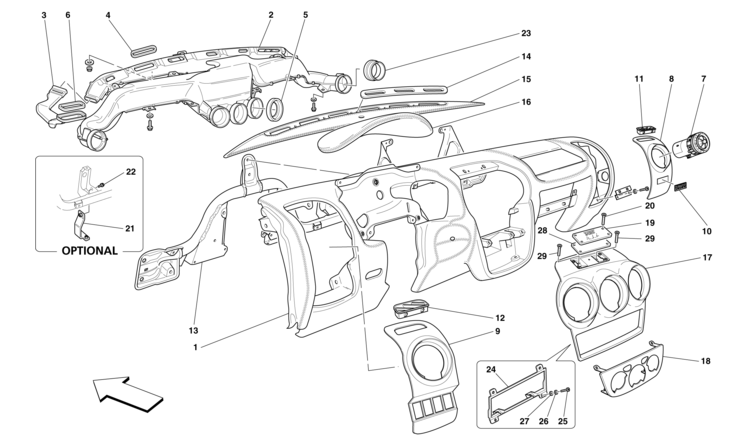

Table 127 - DASHBOARD

Ref.Part#Qty.DescriptionPrice
1802694..1
DASHBOARD -Standard- -Not for USA, CDN, J, GD- -No longer supplied-

Part#: 802694.. Qty: 1

1692126..1
DASHBOARD -Standard- -Applicable for USA- -No longer supplied-

Part#: 692126.. Qty: 1

1693051..1
DASHBOARD -Standard- -Applicable for CDN- -No longer supplied-

Part#: 693051.. Qty: 1

1802697..1
DASHBOARD -Standard- -Applicable for UK- -No longer supplied-

Part#: 802697.. Qty: 1

1691419..1
DASHBOARD -Standard- -Applicable for AUS- -No longer supplied-

Part#: 691419.. Qty: 1

1691418..1
DASHBOARD -Standard- -Applicable for J- -No longer supplied-

Part#: 691418.. Qty: 1

1676850..1
DASHBOARD -Airbag disable system- -Not for UK- -No longer supplied-

Part#: 676850.. Qty: 1

1683583..1
DASHBOARD -Airbag disable system- -Applicable for UK- -No longer supplied-

Part#: 683583.. Qty: 1

1691414..1
COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD -Without airbag disable system- -Not for GD-

Part#: 691414.. Qty: 1

1684429..1
COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD -With airbag disable system- -Not for GD-

Part#: 684429.. Qty: 1

1691417..1
COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD -Without airbag disable system- -Applicable for GD-

Part#: 691417.. Qty: 1

1687158..1
COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD -With airbag disable system- -Applicable for GD-

Part#: 687158.. Qty: 1

2633529001
AIR DUCT -Not for GD-

Part#: 63352900 Qty: 1

2655362001
AIR DUCT -Applicable for GD-

Part#: 65536200 Qty: 1

3651324001
LH LATERAL DUCT

Part#: 65132400 Qty: 1

3651323001
RH LATERAL DUCT

Part#: 65132300 Qty: 1

4660506006
GASKET

Part#: 66050600 Qty: 6

5686034003
CENTRAL AIR VENT GASKET -No longer supplied- -Replaced by 63353300-

Part#: 68603400 Qty: 3

5633533003
CENTRAL AIR VENT GASKET

Part#: 63353300 Qty: 3

6651325002
GASKET

Part#: 65132500 Qty: 2

7688113005
AIR VENT
$335.23

Part#: 68811300 Qty: 5$335.23

8677968101
RH LATERAL VENT PANEL -PPG236411 matte sm.met.gr. 682 W- -Standard-

Part#: 67796810 Qty: 1

8686481001
RH LATERAL VENT PANEL -Carbon version- -Optional- -Applicable until depletion-

Part#: 68648100 Qty: 1

8812008001
RH LATERAL VENT PANEL -Carbon version- -Optional- -Applicable after depletion of 68648100-

Part#: 81200800 Qty: 1

9679163101
LH LATERAL VENT PANEL -PPG236411 matte sm.met.gr. 682 W- -Standard-

Part#: 67916310 Qty: 1

9686482001
LH LATERAL VENT PANEL -Carbon version- -Optional- -Applicable until depletion-

Part#: 68648200 Qty: 1

9812009001
LH LATERAL VENT PANEL -Carbon version- -Optional- -Applicable after depletion of 68648200-

Part#: 81200900 Qty: 1

10681242101
''CAMPIONI DEL MONDO 2003'' LABEL

Part#: 68124210 Qty: 1

10690650101
CAMPIONI DEL MONDO ''2004'' LABEL -No longer supplied- -Replaced by 69833810-

Part#: 69065010 Qty: 1

10698338101
''CAMPIONI DEL MONDO'' PLAQUE

Part#: 69833810 Qty: 1

10804625101
''60 YEARS'' LABEL

Part#: 80462510 Qty: 1

10811909001
CAMPIONI DEL MONDO ''2007'' LABEL

Part#: 81190900 Qty: 1

10822629001
CAMPIONI DEL MONDO ''2008'' LABEL

Part#: 82262900 Qty: 1

11679190001
RH SEAT BELT SLOT SURROUND
$258.35

Part#: 67919000 Qty: 1$258.35

12679191001
LH SEAT BELT SLOT SURROUND
$271.77

Part#: 67919100 Qty: 1$271.77

13677906001
DASHBOARD SUBFRAME ASSEMBLY -Not for GD-

Part#: 67790600 Qty: 1

13683561001
DASHBOARD SUBFRAME ASSEMBLY -Applicable for GD-

Part#: 68356100 Qty: 1

14650183001
LH AIR VENT SURROUND -Not for GD-
$121.85

Part#: 65018300 Qty: 1$121.85

14658910001
LH AIR VENT SURROUND -Applicable for GD-

Part#: 65891000 Qty: 1

14650182001
RH AIR VENT SURROUND -Not for GD-
$121.85

Part#: 65018200 Qty: 1$121.85

14658911001
RH AIR VENT SURROUND -Applicable for GD-

Part#: 65891100 Qty: 1

15696595..1
WINDSCREEN AIR VENT TRIM PANEL -Not for GD-

Part#: 696595.. Qty: 1

15696596..1
WINDSCREEN AIR VENT TRIM PANEL -Applicable for GD-

Part#: 696596.. Qty: 1

16684217..1
BINNACLE

Part#: 684217.. Qty: 1

17677966101
UPPER CENTRAL VENT PANEL -PPG236411 matte sm.met.gr. 682 W- -Standard-

Part#: 67796610 Qty: 1

17686483001
UPPER CENTRAL VENT PANEL -Carbon version- -Optional- -Applicable until depletion-

Part#: 68648300 Qty: 1

17812018001
UPPER CENTRAL VENT PANEL -Carbon version- -Optional- -Applicable after depletion of 68648300-

Part#: 81201800 Qty: 1

18677970101
LOWER CENTRAL VENT PANEL -PPG236411 matte sm.met.gr. 682 W- -Standard-

Part#: 67797010 Qty: 1

18686484001
LOWER CENTRAL VENT PANEL -Carbon version- -Optional- -Applicable until depletion-

Part#: 68648400 Qty: 1

18689716001
LOWER CENTRAL VENT PANEL -Carbon version- -Optional- -Applicable after depletion of 68648400- -Applicable until depletion-

Part#: 68971600 Qty: 1

18812003001
LOWER CENTRAL VENT PANEL -Carbon version- -Optional- -Applicable after depletion of 68971600-

Part#: 81200300 Qty: 1

19687199001
MODEL PLATE -Standard-

Part#: 68719900 Qty: 1

19688727001
MODEL PLATE -Carbon- -Optional-
$154.16

Part#: 68872700 Qty: 1$154.16

19691199001
DEDICATION PLAQUE -Optional- -Applicable until depletion-

Part#: 69119900 Qty: 1

19807289001
DEDICATION PLAQUE -Optional- -Applicable after depletion of 69119900-
$692.15

Part#: 80728900 Qty: 1$692.15

20689276004
SCREW -Black-
$0.49

Part#: 68927600 Qty: 4$0.49

20642141004
SCREW -Self-locking-

Part#: 64214100 Qty: 4

21686152001
AMPLIFIER BOX FASTENER BRACKET -Optional- -Applicable for vehicles with amplifier- -Not for GD-

Part#: 68615200 Qty: 1

21690742001
AMPLIFIER BOX FASTENER BRACKET -Optional- -Applicable for vehicles with amplifier- -Applicable for GD-

Part#: 69074200 Qty: 1

22162851272
SCREW -Optional- -Applicable for vehicles with amplifier-
$1.45

Part#: 16285127 Qty: 2$1.45

23681349001
RH LATERAL AIR VENT GASKET

Part#: 68134900 Qty: 1

23681350001
LH LATERAL AIR VENT GASKET

Part#: 68135000 Qty: 1

24686622001
RADIO FRAME

Part#: 68662200 Qty: 1

25143040244
SCREW

Part#: 14304024 Qty: 4

26126378014
WASHER

Part#: 12637801 Qty: 4

27126203744
WASHER

Part#: 12620374 Qty: 4

28691401001
DEDICATION PLAQUE MOUNTING

Part#: 69140100 Qty: 1

29132702166
SCREW

Part#: 13270216 Qty: 6
