Ferrari Philadelphia Parts

Table 42

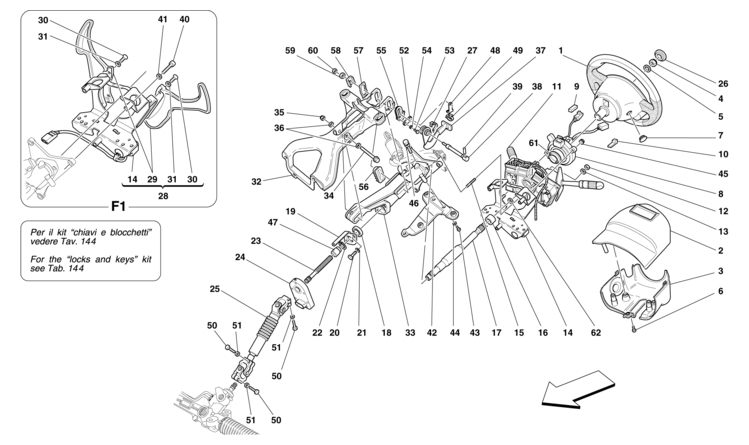

Table 42 - STEERING CONTROL

Ref.Part#Qty.DescriptionPrice
1689389..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Standard- -Applicable up to Ass. No. 60177- -Applicable until depletion-

Part#: 689389.. Qty: 1

1697462..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Standard- -Applicable from Ass. No. 60178- -Applicable after depletion of 689389..- -No longer supplied- -Replaced by 800536..-

Part#: 697462.. Qty: 1

1800536..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Standard- -Applicable from Ass. No. 60178- -Applicable after depletion of 689389..- -Applicable until depletion-

Part#: 800536.. Qty: 1

1803265..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Standard- -Applicable after depletion of 800536..- -No longer supplied- -Replaced by 808981..-

Part#: 803265.. Qty: 1

1808981..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Standard-

Part#: 808981.. Qty: 1

1693949..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Optional- -Carbon trimmed plate-

Part#: 693949.. Qty: 1

1693950..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Optional- -Steering wheel hub and panel trimmed in carbon- -No longer supplied- -Replaced by 800537..-

Part#: 693950.. Qty: 1

1800537..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Optional- -Steering wheel hub and panel trimmed in carbon- -Applicable until depletion-

Part#: 800537.. Qty: 1

1803268..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Optional- -Steering wheel hub and panel trimmed in carbon- -Applicable after depletion of 800537..- -No longer supplied- -Replaced by 808982..-

Part#: 803268.. Qty: 1

1808982..1
COMPL. STEERING WHEEL WITH AIRBAG -Without airbag module- -Optional- -Steering wheel hub and panel trimmed in carbon-

Part#: 808982.. Qty: 1

2680982001
UPPER TRIM -Not for F1 gearbox-

Part#: 68098200 Qty: 1

2680979001
UPPER TRIM -Applicable for F1 gearbox-

Part#: 68097900 Qty: 1

3680978001
LOWER TRIM -Not for F1 gearbox-

Part#: 68097800 Qty: 1

3681616001
LOWER TRIM -Applicable for F1 gearbox-
$564.48

Part#: 68161600 Qty: 1$564.48

41992221
NUT
$2.00

Part#: 199222 Qty: 1$2.00

51520341
WASHER
$8.50

Part#: 152034 Qty: 1$8.50

6159605075
SCREW
$0.63

Part#: 15960507 Qty: 5$0.63

71854862
CAP
$4.52

Part#: 185486 Qty: 2$4.52

82136711
CLOCK SPRING CONTACT
$365.87

Part#: 213671 Qty: 1$365.87

91638161
CLOCK SPRING CONNECTOR RESISTOR

Part#: 163816 Qty: 1

101353551
CONNECTOR

Part#: 135355 Qty: 1

111775851
STEERING COLUMN SWITCH ASSEMBLY
$650.76

Part#: 177585 Qty: 1$650.76

12158964702
NUT
$2.27

Part#: 15896470 Qty: 2$2.27

13126011742
WASHER
$0.26

Part#: 12601174 Qty: 2$0.26

142041551
CLOCKSPRING CONNECTOR MOUNTING BRACKET -Not for F1 gearbox-

Part#: 204155 Qty: 1

142033171
GEAR SHIFT BRACKET -Applicable for F1 gearbox- -No longer supplied-

Part#: 203317 Qty: 1

15110014242
STUD BOLT

Part#: 11001424 Qty: 2

161990941
ROLLER BEARING

Part#: 199094 Qty: 1

171977011
UPPER SHAFT STEERING COLUMN

Part#: 197701 Qty: 1

181715401
BALL BEARING

Part#: 171540 Qty: 1

192010161
COMPLETE STEERING SENSOR MOUNTING BRACKET

Part#: 201016 Qty: 1

20109022242
SCREW
$0.95

Part#: 10902224 Qty: 2$0.95

21111818742
WASHER

Part#: 11181874 Qty: 2

22110673761
SEEGER RING
$1.00

Part#: 11067376 Qty: 1$1.00

231839931
LOWER COLUMN AXLE

Part#: 183993 Qty: 1

241904051
STEERING ANGLE SENSOR

Part#: 190405 Qty: 1

251715281
STEERING CARDAN SHAFT
$3098.35

Part#: 171528 Qty: 1$3098.35

261994061
CAP
$0.58

Part#: 199406 Qty: 1$0.58

271715311
PIN RETENTION SPRING

Part#: 171531 Qty: 1

282016821
COMPLETE SHIFT F1 PADDLE ASSEMBLY -Standard- -Applicable for F1 gearbox- -Applicable until depletion-

Part#: 201682 Qty: 1

282260991
COMPLETE SHIFT F1 PADDLE ASSEMBLY -Standard- -Applicable for F1 gearbox- -Applicable after depletion of 201682-

Part#: 226099 Qty: 1

282185181
COMPLETE SHIFT F1 PADDLE ASSEMBLY -Carbon- -Optional- -Applicable for F1 gearbox- -Applicable until depletion-

Part#: 218518 Qty: 1

282261011
COMPLETE SHIFT F1 PADDLE ASSEMBLY -Carbon- -Optional- -Applicable for F1 gearbox- -Applicable after depletion of 218518-

Part#: 226101 Qty: 1

292157521
PAIR OF SHIFT PADDLES -Standard- -Applicable for F1 gearbox-

Part#: 215752 Qty: 1

292221341
PAIR OF SHIFT PADDLES -Carbon- -Optional- -Applicable for F1 gearbox-

Part#: 222134 Qty: 1

30133089774
SCREW -Applicable for arm assemblies 201682 and 218518 ref. 28- -Applicable for F1 gearbox-

Part#: 13308977 Qty: 4

302260924
SCREW -Applicable for arm assemblies 226099 and 226101 ref. 28- -Applicable for F1 gearbox-

Part#: 226092 Qty: 4

31126066734
WASHER -Applicable for arm assemblies 201682 and 218518 ref. 28- -Applicable for F1 gearbox-
$2.53

Part#: 12606673 Qty: 4$2.53

321977021
STEERING COLUMN MOUNTING BRACKET -Not for GD-

Part#: 197702 Qty: 1

322091911
STEERING COLUMN MOUNTING BRACKET -Applicable for GD-

Part#: 209191 Qty: 1

331977001
COLUMN MOUNTING

Part#: 197700 Qty: 1

341806321
SCREW

Part#: 180632 Qty: 1

351040301
NUT
$0.48

Part#: 104030 Qty: 1$0.48

36126252242
WASHER
$0.25

Part#: 12625224 Qty: 2$0.25

371715351
TRIMMED LEVER

Part#: 171535 Qty: 1

381715031
ARM PIN

Part#: 171503 Qty: 1

39103366301
PIN

Part#: 10336630 Qty: 1

40132746113
SCREW -Applicable for F1 gearbox-

Part#: 13274611 Qty: 3

41126011743
WASHER -Applicable for F1 gearbox-
$0.26

Part#: 12601174 Qty: 3$0.26

42651642001
BRACKET

Part#: 65164200 Qty: 1

43132741773
SCREW

Part#: 13274177 Qty: 3

44126378783
WASHER

Part#: 12637878 Qty: 3

45610022002
NUT

Part#: 61002200 Qty: 2

461725631
ANTI-THEFT SYSTEM FASTENER SCREW
$2.20

Part#: 172563 Qty: 1$2.20

472009701
RING NUT

Part#: 200970 Qty: 1

481779771
PLATE

Part#: 177977 Qty: 1

491784301
FASTENER CLIP
$1.00

Part#: 178430 Qty: 1$1.00

501922293
HEXAGONAL SCREW

Part#: 192229 Qty: 3

511922303
WASHER

Part#: 192230 Qty: 3

521715231
PLATE

Part#: 171523 Qty: 1

53109777242
SCREW
$0.39

Part#: 10977724 Qty: 2$0.39

54111815742
WASHER

Part#: 11181574 Qty: 2

551715441
ARM SIDE SLIPPER

Part#: 171544 Qty: 1

561715011
SPLINED FIXED SLIPPER

Part#: 171501 Qty: 1

571715021
SLIPPER SPRING

Part#: 171502 Qty: 1

581715291
MOBILE SPLINED SLIPPER

Part#: 171529 Qty: 1

591715421
NUT

Part#: 171542 Qty: 1

601479851
NUT
$0.50

Part#: 147985 Qty: 1$0.50

611997841
BUSHING

Part#: 199784 Qty: 1

622032131
WASHER

Part#: 203213 Qty: 1
