Ferrari Philadelphia Parts

Table 111

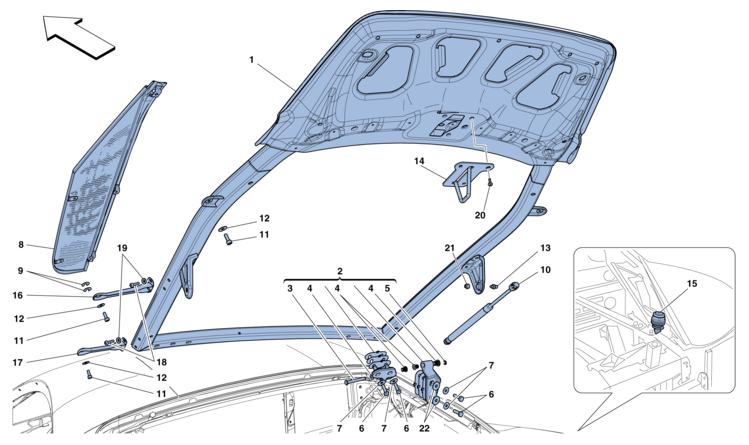

Table 111 - ENGINE COMPARTMENT LID

Ref.Part#Qty.DescriptionPrice
1812816111
REAR LID -Applicable up to Ass. No. 96749- -Applicable until depletion-

Part#: 81281611 Qty: 1

1838252111
REAR LID -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750- -Applicable after depletion of 81281611-

Part#: 83825211 Qty: 1

2814292001
COMPL. RH ENGINE COMPARTMENT LID HINGE

Part#: 81429200 Qty: 1

2814293001
COMPL. LH ENGINE COMPARTMENT LID HINGE

Part#: 81429300 Qty: 1

3814290002
HINGE PIN

Part#: 81429000 Qty: 2

4628253008
BUSHING
$48.70

Part#: 62825300 Qty: 8$48.70

5161609762
SNAP RING
$0.35

Part#: 16160976 Qty: 2$0.35

6160437348
SCREW

Part#: 16043734 Qty: 8

7126420018
WASHER
$0.13

Part#: 12642001 Qty: 8$0.13

8828068001
LH ENGINE COMPARTMENT LID GRILLE -No longer supplied- -Replaced by 82651700-

Part#: 82806800 Qty: 1

8826517001
LH ENGINE COMPARTMENT LID GRILLE
$489.93

Part#: 82651700 Qty: 1$489.93

8826515001
RH ENGINE COMPARTMENT LID GRILLE -No longer supplied- -Replaced by 82651500-

Part#: 82651500 Qty: 1

8826515001
RH ENGINE COMPARTMENT LID GRILLE

Part#: 82651500 Qty: 1

98150480020
SHIM -No longer supplied- -Replaced by 12643727-

Part#: 81504800 Qty: 20

91264372720
SHIM

Part#: 12643727 Qty: 20

10819131002
GAS STRUT
$93.87

Part#: 81913100 Qty: 2$93.87

111430462410
SCREW
$0.21

Part#: 14304624 Qty: 10$0.21

121118167410
WASHER
$0.25

Part#: 11181674 Qty: 10$0.25

13659399002
PIN
$6.19

Part#: 65939900 Qty: 2$6.19

14814296001
LOCK STRIKER

Part#: 81429600 Qty: 1

15671618002
SPACER BLOCK
$56.64

Part#: 67161800 Qty: 2$56.64

16828070002
CENTRE BRACKET

Part#: 82807000 Qty: 2

17828137001
UPPER LH BRACKET

Part#: 82813700 Qty: 1

17828069001
UPPER RH BRACKET

Part#: 82806900 Qty: 1

18662077008
SCREW
$3.25

Part#: 66207700 Qty: 8$3.25

19126378788
WASHER

Part#: 12637878 Qty: 8

20658641003
SCREW
$2.00

Part#: 65864100 Qty: 3$2.00

21130462242
NUT

Part#: 13046224 Qty: 2

22860262004
HEAT EXPANDING WASHER

Part#: 86026200 Qty: 4
