Ferrari Philadelphia Parts

Table 12

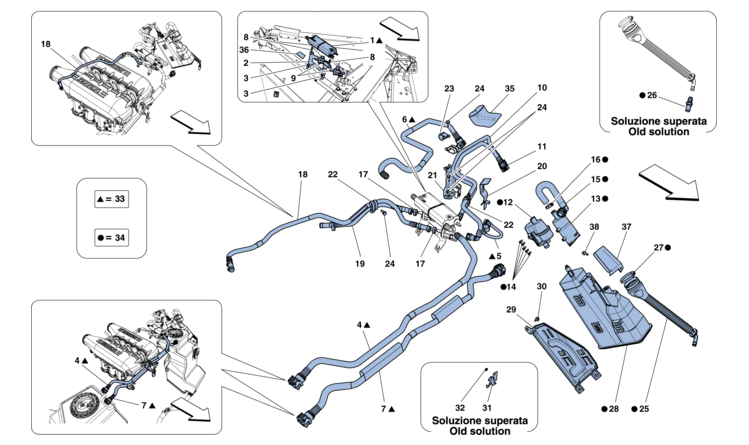

Table 12 - EVAPORATIVE EMISSIONS CONTROL SYSTEM

Ref.Part#Qty.DescriptionPrice
12573541
COMPL. VAPOUR SEPARATOR -Supplied with separator complete with pipes, see ref. 33- -No longer supplied-

Part#: 257354 Qty: 1

12629601
COMPL. VAPOUR SEPARATOR -Supplied with separator complete with pipes, see ref. 33- -Applicable up to Ass. No. 96891- -No longer supplied-

Part#: 262960 Qty: 1

12723781
COMPL. VAPOUR SEPARATOR -Supplied with separator complete with pipes, see ref. 33- -Applicable from Ass. No. 96892- -No longer supplied-

Part#: 272378 Qty: 1

22591781
BRACKET -No longer supplied- -Replaced by 284275-

Part#: 259178 Qty: 1

22842751
BRACKET -Applicable up to Ass. No. 118655- -Applicable until depletion-

Part#: 284275 Qty: 1

23048641
BRACKET -Applicable from Ass. No. 118656- -Applicable after depletion of 284275-

Part#: 304864 Qty: 1

3115850242
SCREW -M5 X 14-
$0.31

Part#: 11585024 Qty: 2$0.31

42629611
PIPE FROM RH TANK TO SEPARATOR -Supplied with separator complete with pipes, see ref. 33- -No longer supplied-

Part#: 262961 Qty: 1

52573461
PIPE FROM LH TANK TO SEPARATOR -Supplied with separator complete with pipes, see ref. 33- -No longer supplied-

Part#: 257346 Qty: 1

62577891
FILTER SEPARATOR PIPE -Supplied with separator complete with pipes, see ref. 33- -Applicable up to Ass. No. 96891- -No longer supplied-

Part#: 257789 Qty: 1

62723791
FILTER SEPARATOR PIPE -Supplied with separator complete with pipes, see ref. 33- -Applicable from Ass. No. 96892- -No longer supplied-

Part#: 272379 Qty: 1

72626291
CONNECTOR PIPE -Supplied with separator complete with pipes, see ref. 33- -No longer supplied-

Part#: 262629 Qty: 1

8143589242
SCREW

Part#: 14358924 Qty: 2

92544252
FLUSH VALVE
$67.75

Part#: 254425 Qty: 2$67.75

102577911
PIPE BETWEEN FILTER-LH VALVE -Applicable up to Ass. No. 104932-

Part#: 257791 Qty: 1

102773541
PIPE BETWEEN FILTER-LH VALVE -Applicable from Ass. No. 104933-

Part#: 277354 Qty: 1

112577921
PIPE BETWEEN FILTER-RH VALVE -Applicable up to Ass. No. 104932-

Part#: 257792 Qty: 1

112773551
PIPE BETWEEN FILTER-RH VALVE -Applicable from Ass. No. 104933-

Part#: 277355 Qty: 1

122512881
DIAGNOSTIC PUMP -Supplied with complete fuel vapour filter ref. 34- -No longer supplied-
$306.28

Part#: 251288 Qty: 1$306.28

132504021
PUMP FILTER -Supplied with complete fuel vapour filter ref. 34- -No longer supplied- -Replaced by 278131- -No longer supplied-

Part#: 250402 Qty: 1

132781311
PUMP FILTER -Supplied with complete fuel vapour filter ref. 34 Part No. 278130- -No longer supplied-

Part#: 278131 Qty: 1

14159587015
SCREW -No longer supplied- -Replaced by 15903801-

Part#: 15958701 Qty: 5

14159038015
SCREW -Supplied with complete fuel vapour filter ref. 34- -No longer supplied-

Part#: 15903801 Qty: 5

152504031
PIPE FROM PUMP TO AIR FILTER -Supplied with complete fuel vapour filter ref. 34- -No longer supplied-

Part#: 250403 Qty: 1

16134329701
COLLAR -Supplied with complete fuel vapour filter ref. 34- -No longer supplied-
$1.33

Part#: 13432970 Qty: 1$1.33

17134320704
COLLAR -D. 15.7-
$1.25

Part#: 13432070 Qty: 4$1.25

182577991
RH FLUSH VALVE PIPE - RH INTAKE -Applicable up to Ass. No. 110619-

Part#: 257799 Qty: 1

182919881
RH FLUSH VALVE PIPE - RH INTAKE -Applicable from Ass. No. 110620-

Part#: 291988 Qty: 1

192577961
LH FLUSH VALVE PIPE - LH INTAKE -Applicable up to Ass. No. 110619-

Part#: 257796 Qty: 1

192919871
LH FLUSH VALVE PIPE - LH INTAKE -Applicable from Ass. No. 110620-

Part#: 291987 Qty: 1

202594351
BRACKET

Part#: 259435 Qty: 1

212609491
BRACKET -Applicable up to Ass. No. 104932-

Part#: 260949 Qty: 1

212773841
BRACKET -Applicable from Ass. No. 104933-

Part#: 277384 Qty: 1

222535123
BRACKET WITH SHEATH -Applicable up to Ass. No. 104932-

Part#: 253512 Qty: 3

222535122
BRACKET WITH SHEATH -Applicable from Ass. No. 104933-

Part#: 253512 Qty: 2

222775271
BRACKET WITH SHEATH -Applicable from Ass. No. 104933-

Part#: 277527 Qty: 1

23104504902
BRACKET WITH SHEATH -Applicable up to Ass. No. 96891-
$2.45

Part#: 10450490 Qty: 2$2.45

23104417902
BRACKET WITH SHEATH -Applicable from Ass. No. 96892 up to Ass. No. 104932-
$4.46

Part#: 10441790 Qty: 2$4.46

24115850244
SCREW -M5 X 14- -Applicable up to Ass. No. 104932-
$0.31

Part#: 11585024 Qty: 4$0.31

24115850245
SCREW -M5 X 14- -Applicable from Ass. No. 104933-
$0.31

Part#: 11585024 Qty: 5$0.31

252603631
AIR FILTER BELLOW -Also supplied with compl. vapour filter, ref. 34- -Applicable until depletion-

Part#: 260363 Qty: 1

252825191
AIR FILTER BELLOW -Also supplied with compl. vapour filter, ref. 34- -Applicable after depletion of 260363-

Part#: 282519 Qty: 1

262605811
CONNECTOR -Also supplied with compl. vapour filter, ref. 34- -No longer supplied-

Part#: 260581 Qty: 1

27107213701
COLLAR -Also supplied with compl. vapour filter, ref. 34- -No longer supplied- -Replaced by 13434170-

Part#: 10721370 Qty: 1

27134341701
COLLAR -Also supplied with compl. vapour filter, ref. 34- -No longer supplied- -Replaced by 10721370-

Part#: 13434170 Qty: 1

27107213701
COLLAR

Part#: 10721370 Qty: 1

282603141
FUEL VAPOUR FILTER -Supplied with complete fuel vapour filter ref. 34- -No longer supplied-

Part#: 260314 Qty: 1

29824142001
VAPOUR FILTER BRACKET

Part#: 82414200 Qty: 1

30116256243
SCREW -M6 X 14-
$1.02

Part#: 11625624 Qty: 3$1.02

31829106001
VAPOUR PIPE BRACKET -No longer supplied-

Part#: 82910600 Qty: 1

32140591211
NUT -No longer supplied-

Part#: 14059121 Qty: 1

332629591
VAPOUR SEPARATOR COMPLETE WITH PIPES -Applicable up to Ass. No. 96891- -No longer supplied- -Replaced by 272653-

Part#: 262959 Qty: 1

332726531
VAPOUR SEPARATOR COMPLETE WITH PIPES -Applicable from Ass. No. 96892 up to Ass. No. 104932-

Part#: 272653 Qty: 1

332757101
VAPOUR SEPARATOR COMPLETE WITH PIPES -Applicable from Ass. No. 104933-

Part#: 275710 Qty: 1

342606161
COMPL. VAPOUR FILTER WITH DIAGNOSTIC SOCKET -Applicable for breather vent 83780000 table 105 ref. 17- -Applicable up to Ass. No. 99723- -Applicable until depletion-
$607.25

Part#: 260616 Qty: 1$607.25

342732011
COMPL. VAPOUR FILTER -Applicable for breather vent 83862100 Tab. 105 ref. 17- -Applicable from Ass. No. 99724- -Applicable after depletion of 260616- -No longer supplied- -Replaced by 278130-

Part#: 273201 Qty: 1

342781301
COMPL. VAPOUR FILTER -Applicable for breather vent 83862100 Tab. 105 ref. 17-
$607.42

Part#: 278130 Qty: 1$607.42

352716301
HEAT SHIELD -Applicable up to Ass. No. 96891-

Part#: 271630 Qty: 1

362928351
PLUG -Applicable for bracket 284275 ref. 2- -Applicable up to Ass. No. 118655- -Applicable until depletion-

Part#: 292835 Qty: 1

372932951
BRACKET -No longer supplied-

Part#: 293295 Qty: 1

382316171
SCREW -M6 X 18- -No longer supplied-
$0.65

Part#: 231617 Qty: 1$0.65
