Ferrari Philadelphia Parts

Table 122

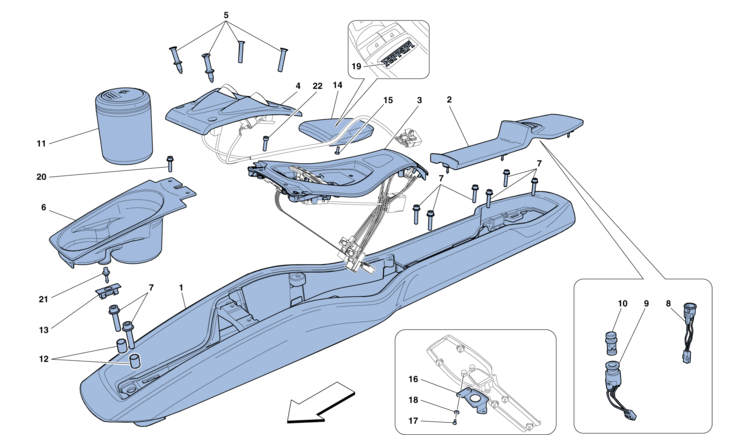

Table 122 - TUNNEL - SUBSTRUCTURE AND ACCESSORIES

Ref.Part#Qty.DescriptionPrice
1812867..1
CENTRE TUNNEL CONSOLE UNIT -Leather- -STC1- -STC2-

Part#: 812867.. Qty: 1

1836135001
CENTRE TUNNEL CONSOLE UNIT -Carbon-
$8687.94

Part#: 83613500 Qty: 1$8687.94

2833357001
CENTRAL COMPARTMENT -Black felt- -Applicable until depletion-

Part#: 83335700 Qty: 1

2840230001
CENTRAL COMPARTMENT -Black felt- -Applicable after depletion of 83335700-
$497.93

Part#: 84023000 Qty: 1$497.93

2814674..1
CENTRAL COMPARTMENT -Alcantara-

Part#: 814674.. Qty: 1

3825002001
SWITCH MOUNTING PANEL -Corsa grey- -Applicable up to Ass. No. 89228-

Part#: 82500200 Qty: 1

3829865001
SWITCH MOUNTING PANEL -Burnished grey- -Applicable from Ass. No. 89229-

Part#: 82986500 Qty: 1

3829879001
SWITCH MOUNTING PANEL -Carbon- -Applicable until depletion-

Part#: 82987900 Qty: 1

3856119001
SWITCH MOUNTING PANEL -Carbon- -Applicable after depletion of 82987900-

Part#: 85611900 Qty: 1

3844795001
SWITCH MOUNTING PANEL -Alutex-

Part#: 84479500 Qty: 1

4814692001
F1 GEARBOX CONTROL PANEL -Corsa grey- -Applicable up to Ass. No. 89228-

Part#: 81469200 Qty: 1

4829873001
F1 GEARBOX CONTROL PANEL -Burnished grey- -Applicable from Ass. No. 89229-

Part#: 82987300 Qty: 1

4829881001
F1 GEARBOX CONTROL PANEL -Carbon-

Part#: 82988100 Qty: 1

4844796001
F1 GEARBOX CONTROL PANEL -Alutex- -Not for USA, CDN-

Part#: 84479600 Qty: 1

4844797001
F1 GEARBOX CONTROL PANEL -Alutex- -Applicable for USA, CDN-

Part#: 84479700 Qty: 1

51593572
SCREW -Corsa grey- -Applicable up to Ass. No. 89228-
$4.36

Part#: 159357 Qty: 2$4.36

5133111182
SCREW -Corsa grey- -Applicable up to Ass. No. 89228-
$0.95

Part#: 13311118 Qty: 2$0.95

5689277004
SCREW -Burnished grey- -Applicable from Ass. No. 89229-
$1.45

Part#: 68927700 Qty: 4$1.45

6814685001
ONT COMPARTMENT -Applicable until depletion-

Part#: 81468500 Qty: 1

6840229001
FRONT COMPARTMENT -Applicable after depletion of 81468500-

Part#: 84022900 Qty: 1

72316218
SCREW -M6 X 30- -No longer supplied- -Replaced by 231622-
$0.54

Part#: 231621 Qty: 8$0.54

72316228
SCREW -M6 X 35-
$2.10

Part#: 231622 Qty: 8$2.10

82154061
12 VOLT SOCKET
$57.89

Part#: 215406 Qty: 1$57.89

91832711
CIGARETTE LIGHTER BODY
$53.50

Part#: 183271 Qty: 1$53.50

101832701
CIGARETTE LIGHTER
$39.50

Part#: 183270 Qty: 1$39.50

11830035001
ASHTRAY
$369.86

Part#: 83003500 Qty: 1$369.86

12822293002
BUSHING

Part#: 82229300 Qty: 2

13687002007
CLIP
$5.67

Part#: 68700200 Qty: 7$5.67

14820518..1
CENTRAL INSERT

Part#: 820518.. Qty: 1

15160834013
SCREW -No longer supplied- -Replaced by 16083501-
$0.51

Part#: 16083401 Qty: 3$0.51

15160835013
SCREW
$0.25

Part#: 16083501 Qty: 3$0.25

16824944001
12V SOCKET BRACKET -Applicable for centre compartment in Alcantara- -Applicable until depletion-

Part#: 82494400 Qty: 1

16831188001
12V SOCKET BRACKET -Applicable for centre compartment in Alcantara- -Applicable after depletion of 82494400-

Part#: 83118800 Qty: 1

16831188001
12V SOCKET BRACKET -Applicable for centre compartment with black flocked finish-

Part#: 83118800 Qty: 1

17132720113
SCREW -No longer supplied-

Part#: 13272011 Qty: 3

17155334013
SCREW -Not for compartment in Alcantara-

Part#: 15533401 Qty: 3

17652120003
SCREW -For compartment in Alcantara-
$2.10

Part#: 65212000 Qty: 3$2.10

18126428013
WASHER

Part#: 12642801 Qty: 3

19830104001
FERRARI BADGE

Part#: 83010400 Qty: 1

20681765002
SCREW
$0.48

Part#: 68176500 Qty: 2$0.48

21825358009
PIN

Part#: 82535800 Qty: 9

22132744174
SCREW -M5 X 20- -For carbon fibre surround-

Part#: 13274417 Qty: 4

22143033244
SCREW -M4 X 20- -Not for carbon fibre surround-
$0.50

Part#: 14303324 Qty: 4$0.50
