Ferrari Philadelphia Parts

Table 133

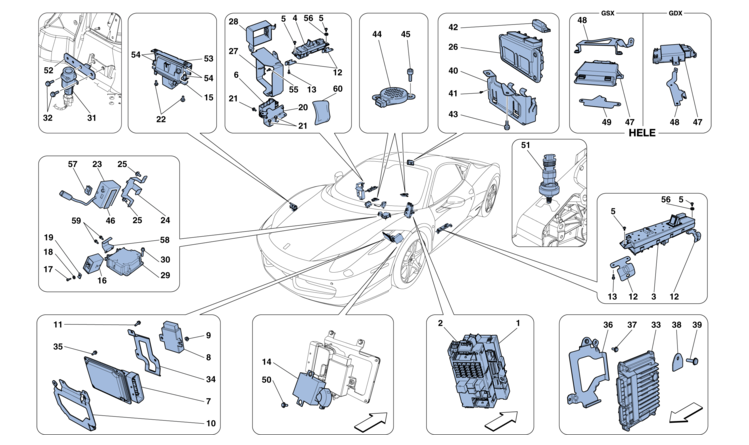

Table 133 - VEHICLE ECUs

Ref.Part#Qty.DescriptionPrice
12444281
BODY COMPUTER NODE -Not for HELE- -No longer supplied- -Replaced by 275145-

Part#: 244428 Qty: 1

12751451
BODY COMPUTER NODE -Not for HELE- -No longer supplied- -Replaced by 277461-

Part#: 275145 Qty: 1

12774611
BODY COMPUTER NODE -Applicable up to Ass. No. 116551-
$1516.75

Part#: 277461 Qty: 1$1516.75

12972981
BODY COMPUTER NODE -Applicable from Ass. No. 116552-
$1487.67

Part#: 297298 Qty: 1$1487.67

22457881
DASHBOARD ECU
$660.22

Part#: 245788 Qty: 1$660.22

32321491
DRIVER SIDE DOOR NODE ECU -Applicable up to Ass. No. 102096- -Applicable until depletion-

Part#: 232149 Qty: 1

32734121
DRIVER SIDE DOOR NODE ECU -Applicable from Ass. No. 102097- -Applicable after depletion of 232149-
$1458.24

Part#: 273412 Qty: 1$1458.24

42321501
PASSENGER SIDE DOOR NODE ECU -Applicable up to Ass. No. 102096- -Applicable until depletion-

Part#: 232150 Qty: 1

42734131
PASSENGER SIDE DOOR NODE ECU -Applicable from Ass. No. 102097- -Applicable after depletion of 232150-
$662.24

Part#: 273413 Qty: 1$662.24

5132900146
SCREW -No longer supplied-

Part#: 13290014 Qty: 6

5146414914
RIVET
$0.48

Part#: 14641491 Qty: 4$0.48

62570681
PARKING SENSOR NODE -Applicable until depletion-

Part#: 257068 Qty: 1

62705601
PARKING SENSOR NODE -Applicable after depletion of 257068- -No longer supplied- -Replaced by 302489-

Part#: 270560 Qty: 1

63024891
PARKING SENSOR NODE
$433.41

Part#: 302489 Qty: 1$433.41

72546171
MAGNERIDE ECU -Applicable up to Ass. No. 101140-

Part#: 254617 Qty: 1

72792981
MAGNERIDE ECU -Applicable from Ass. No. 101141-

Part#: 279298 Qty: 1

82379671
TPMS ECU

Part#: 237967 Qty: 1

9140406142
NUT

Part#: 14040614 Qty: 2

102621981
COMPL. MAGNERIDE ECU BRACKET

Part#: 262198 Qty: 1

11162851243
SCREW
$0.60

Part#: 16285124 Qty: 3$0.60

122549014
DOOR NODE BRACKET

Part#: 254901 Qty: 4

13132878774
SCREW

Part#: 13287877 Qty: 4

141887881
POWER STEERING CONTROL ECU -No longer supplied- -Replaced by 262285-

Part#: 188788 Qty: 1

142622851
POWER STEERING CONTROL ECU -Applicable up to Ass. No. 92148- -Applicable until depletion-

Part#: 262285 Qty: 1

142693551
POWER STEERING CONTROL ECU -Applicable from Ass. No. 92149- -Applicable after depletion of 262285-

Part#: 269355 Qty: 1

152544131
ADAPTIVE HEADLIGHT NODE ECU -Applicable until depletion-

Part#: 254413 Qty: 1

152772811
ADAPTIVE HEADLIGHT NODE ECU -Applicable after depletion of 254413-

Part#: 277281 Qty: 1

162589011
VENT CONTROL ECU -Not for GD-

Part#: 258901 Qty: 1

162664611
VENT CONTROL ECU -Applicable for GD-

Part#: 266461 Qty: 1

17681762001
SCREW -No longer supplied- -Replaced by 16281824-

Part#: 68176200 Qty: 1

17162818241
SCREW
$0.35

Part#: 16281824 Qty: 1$0.35

18126378011
WASHER

Part#: 12637801 Qty: 1

19143708711
CLIP

Part#: 14370871 Qty: 1

202597101
PARKING SENSOR NODE BRACKET -No longer supplied- -Replaced by 266380-

Part#: 259710 Qty: 1

202663801
PARKING SENSOR NODE BRACKET -Not for GD-

Part#: 266380 Qty: 1

202635251
PARKING SENSOR NODE BRACKET -Applicable for GD- -No longer supplied- -Replaced by 266579-

Part#: 263525 Qty: 1

202665791
PARKING SENSOR NODE BRACKET -Applicable for GD-

Part#: 266579 Qty: 1

21116257144
SCREW -M6 X 16-

Part#: 11625714 Qty: 4

21162851274
SCREW -M5 X 16- -No longer supplied- -Replaced by 16284927-
$1.45

Part#: 16285127 Qty: 4$1.45

21162849274
SCREW -M5 X 10-

Part#: 16284927 Qty: 4

22116258242
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 2$1.49

232349961
PARKING CAMERA ECU -Version with parking camera- -Without Velcro- -Applicable until depletion-

Part#: 234996 Qty: 1

232743851
PARKING CAMERA ECU -Version with parking camera- -With Velcro- -Applicable after depletion of 234996-

Part#: 274385 Qty: 1

242611251
PARKING CAMERA ECU BRACKET -Version with parking camera- -After depletion order velcro ref. 46- -Applicable up to Ass. No. 93144- -Applicable until depletion-

Part#: 261125 Qty: 1

25116256242
SCREW -M6 X 14- -Version with parking camera- -Applicable up to Ass. No. 93144-
$1.02

Part#: 11625624 Qty: 2$1.02

262519961
VEHICLE LIFT ECU -Not for HELE- -No longer supplied- -Replaced by 277625-

Part#: 251996 Qty: 1

262776251
VEHICLE LIFT ECU -Not for HELE- -Applicable up to Ass. No. 117281-

Part#: 277625 Qty: 1

262776251
VEHICLE LIFT ECU -Applicable for HELE- -Applicable up to Ass. No. 117281-

Part#: 277625 Qty: 1

263016051
VEHICLE LIFT ECU -Applicable from Ass. No. 117282-

Part#: 301605 Qty: 1

27818826001
MOUNTING -Not for GD-

Part#: 81882600 Qty: 1

27827841001
MOUNTING -Applicable for GD-

Part#: 82784100 Qty: 1

282566131
MAXI RELAY MOUNTING -Not for GD-

Part#: 256613 Qty: 1

28827840001
MAXI RELAY MOUNTING -Applicable for GD-

Part#: 82784000 Qty: 1

292444301
AIRBAG ECU -Applicable up to Ass. No. 96749-

Part#: 244430 Qty: 1

292772451
AIRBAG ECU -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 96750-

Part#: 277245 Qty: 1

302316213
SCREW -M6 X 30-
$0.54

Part#: 231621 Qty: 3$0.54

311636751
INERTIA SWITCH
$38.50

Part#: 163675 Qty: 1$38.50

32132742112
SCREW -No longer supplied- -Replaced by 16285127-
$0.31

Part#: 13274211 Qty: 2$0.31

32162851272
SCREW -M5 X 16-
$1.45

Part#: 16285127 Qty: 2$1.45

332547631
DCT GEARBOX ECU -No longer supplied- -Replaced by 244441-

Part#: 254763 Qty: 1

332444411
DCT GEARBOX ECU -No longer supplied- -Replaced by 258974-

Part#: 244441 Qty: 1

332589741
DCT GEARBOX ECU -Unprogrammed-

Part#: 258974 Qty: 1

342621991
TYRE PRESSURE MONITORING ECU MOUNTING BRACKET

Part#: 262199 Qty: 1

35162850144
SCREW -No longer supplied- -Replaced by 16285124-

Part#: 16285014 Qty: 4

35162851244
SCREW
$0.60

Part#: 16285124 Qty: 4$0.60

362600211
DCT ECU MOUNTING BRACKET

Part#: 260021 Qty: 1

37116256243
SCREW -M6 X 14-
$1.02

Part#: 11625624 Qty: 3$1.02

382600231
DCT ECU FASTENER

Part#: 260023 Qty: 1

39132903241
SCREW -No longer supplied- -Replaced by 11625624-

Part#: 13290324 Qty: 1

39116256241
SCREW -M6 X 14-
$1.02

Part#: 11625624 Qty: 1$1.02

40822343001
LIFTER ECU BRACKET

Part#: 82234300 Qty: 1

41823318002
RUBBER SPACER BUTTON

Part#: 82331800 Qty: 2

422617041
CAP CONNECTOR FOR ECU

Part#: 261704 Qty: 1

43116258242
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 2$1.49

442234691
BUZZER -Front parking sensors-

Part#: 223469 Qty: 1

442234691
BUZZER -Rear parking sensors-

Part#: 223469 Qty: 1

45159218072
SCREW -Front parking sensors-

Part#: 15921807 Qty: 2

45143029212
SCREW -Rear parking sensors-

Part#: 14302921 Qty: 2

462701711
VELCRO -Version with parking camera- -Applicable for ECU 234996 ref. 23-

Part#: 270171 Qty: 1

472640971
VOLTAGE STABILIZER -Applicable for HELE- -Applicable from Ass. No. 98508-

Part#: 264097 Qty: 1

482720801
UPPER VOLTAGE STABILIZER BRACKET -Applicable for HELE- -Not for GD- -Applicable from Ass. No. 98508-

Part#: 272080 Qty: 1

482757451
UPPER VOLTAGE STABILIZER BRACKET -Applicable for HELE- -Applicable for GD- -Applicable from Ass. No. 98508-

Part#: 275745 Qty: 1

492720821
LOWER VOLTAGE STABILIZER BRACKET -Applicable for HELE- -Not for GD- -Applicable from Ass. No. 98508-

Part#: 272082 Qty: 1

50162818242
SCREW
$0.35

Part#: 16281824 Qty: 2$0.35

512630793
ACCELERATOR FOR MAGNERIDE SYSTEM -Applicable from Ass. No. 101141-
$378.43

Part#: 263079 Qty: 3$378.43

522770021
BRACKET -Applicable for HELE- -Not for GD-

Part#: 277002 Qty: 1

522807721
BRACKET -Applicable for HELE- -Applicable for GD-

Part#: 280772 Qty: 1

532637671
BRACKET -Applicable up to Ass. No. 120340-

Part#: 263767 Qty: 1

542481464
HEXAGONAL RIVET -Applicable up to Ass. No. 120340-

Part#: 248146 Qty: 4

55644605001
SCREW
$1.76

Part#: 64460500 Qty: 1$1.76

56144985012
WASHER
$0.49

Part#: 14498501 Qty: 2$0.49

572931461
CLIP

Part#: 293146 Qty: 1

58853275001
ECU SHIELD BRACKET

Part#: 85327500 Qty: 1

59116258242
SCREW -M6 X 18-
$1.49

Part#: 11625824 Qty: 2$1.49

60828809001
WATERPROOF MEMBRANE

Part#: 82880900 Qty: 1
