Ferrari Philadelphia Parts

Table 10

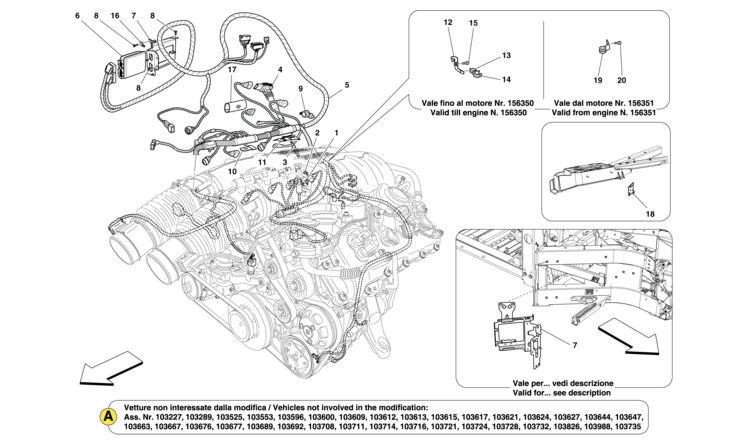

Table 10 - RIGHT HAND INJECTION SYSTEM - IGNITION

Ref.Part#Qty.DescriptionPrice
12475882
ELECTRO-INJECTOR -Opposite pressure sensor side- -Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14- -No longer supplied-
$168.96

Part#: 247588 Qty: 2$168.96

12475892
ELECTRO-INJECTOR -Pressure sensor side- -Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14- -No longer supplied-
$225.89

Part#: 247589 Qty: 2$225.89

22319264
CLIP -Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14- -No longer supplied-

Part#: 231926 Qty: 4

32466154
SPARK PLUG
$33.46

Part#: 246615 Qty: 4$33.46

42278764
IGNITION COIL -No longer supplied- -Replaced by 248404-

Part#: 227876 Qty: 4

42484044
IGNITION COIL -Applicable up to Ass. No. 105501-

Part#: 248404 Qty: 4

42814494
IGNITION COIL -Applicable from Ass. No. 105502-
$186.87

Part#: 281449 Qty: 4$186.87

52513961
R.H. ENGINE INJECTION CABLE -No longer supplied- -Replaced by 254773-

Part#: 251396 Qty: 1

52547731
R.H. ENGINE INJECTION CABLE -Not for Stop & Start- -Applicable up to Ass. No. 90970- -Applicable up to engine No. 159182-

Part#: 254773 Qty: 1

52641241
R.H. ENGINE INJECTION CABLE -Not for HELE- -Not for Stop & Start- -Applicable from Ass. No. 90971- -Applicable from engine No. 159183-

Part#: 264124 Qty: 1

52641311
R.H. ENGINE INJECTION CABLE -Applicable for Stop & Start- -Applicable up to Ass. No. 95557-

Part#: 264131 Qty: 1

52686721
RH INJECTION WIRING HARNESS -Applicable for HELE- -Applicable for Stop & Start- -Applicable from Ass. No. 95558 up to Ass. No. 103178-

Part#: 268672 Qty: 1

52835021
RH INJECTION WIRING HARNESS -Applicable for HELE- -Applicable for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 283502 Qty: 1

52746441
RH INJECTION WIRING HARNESS -Applicable for Soft Start- -Applicable from MY 11- -Applicable for USA, CDN-

Part#: 274644 Qty: 1

52746441
RH INJECTION WIRING HARNESS -Applicable for Soft Start- -Not for USA, CDN, GD- -Applicable from Ass. No. 97352-

Part#: 274644 Qty: 1

62399711
IGNITION ECU -Not for CINA, USA, CDN- -Applicable up to Ass. No. 88122- -Applicable for DCT gearbox- -Applicable up to engine No. 153878- -No longer supplied- -Replaced by 238263-

Part#: 239971 Qty: 1

62627561
IGNITION ECU -Not for CINA, USA, CDN- -Applicable from Ass. No. 88123- -Applicable from engine No. 153879- -No longer supplied- -Replaced by 238263-

Part#: 262756 Qty: 1

62592831
IGNITION ECU -Russia- -Applicable up to Ass. No. 88122- -Applicable for DCT gearbox- -Applicable up to engine No. 153878- -No longer supplied- -Replaced by 238263-

Part#: 259283 Qty: 1

62627621
IGNITION ECU -Russia- -Applicable from Ass. No. 88123- -Applicable for DCT gearbox- -Applicable from engine No. 153879- -No longer supplied- -Replaced by 238263-

Part#: 262762 Qty: 1

62627601
IGNITION ECU -Taiwan- -Applicable from Ass. No. 88123- -Applicable for DCT gearbox- -Applicable from engine No. 153879- -No longer supplied- -Replaced by 238263-

Part#: 262760 Qty: 1

62542811
IGNITION ECU -Not for USA, CDN- -Not for DCT gearbox- -No longer supplied- -Replaced by 238263-

Part#: 254281 Qty: 1

62530291
IGNITION ECU -MY 09- -Applicable for USA, CDN- -Applicable up to Ass. No. 85744- -Applicable for DCT gearbox- -No longer supplied- -Replaced by 238263-

Part#: 253029 Qty: 1

62587231
IGNITION ECU -MY 10- -Applicable for USA, CDN- -Applicable from Ass. No. 85745 up to Ass. No. 86422- -Applicable for DCT gearbox- -No longer supplied- -Replaced by 238263-

Part#: 258723 Qty: 1

62614081
IGNITION ECU -Applicable for USA, CDN- -Applicable from Ass. No. 86423 up to Ass. No. 88122- -Applicable for DCT gearbox- -Applicable up to engine No. 153878- -No longer supplied- -Replaced by 238263-

Part#: 261408 Qty: 1

62627581
IGNITION ECU -Applicable for USA, CDN- -Applicable from Ass. No. 88123- -Applicable for DCT gearbox- -Applicable from engine No. 153879- -No longer supplied- -Replaced by 238263-

Part#: 262758 Qty: 1

62543171
IGNITION ECU -Applicable for USA, CDN- -Not for DCT gearbox- -No longer supplied- -Replaced by 238263-

Part#: 254317 Qty: 1

62553041
IGNITION ECU -Applicable for J- -Applicable up to Ass. No. 88122- -Applicable for DCT gearbox- -Applicable up to engine No. 153878- -No longer supplied- -Replaced by 238263-

Part#: 255304 Qty: 1

62627591
IGNITION ECU -Applicable for J- -Applicable from Ass. No. 88123- -Applicable for DCT gearbox- -Applicable from engine No. 153879- -No longer supplied- -Replaced by 238263-

Part#: 262759 Qty: 1

62553051
IGNITION ECU -Applicable for J- -Not for DCT gearbox- -No longer supplied- -Replaced by 238263-

Part#: 255305 Qty: 1

62589971
IGNITION ECU -Korea- -Applicable up to Ass. No. 86422- -No longer supplied- -Replaced by 238263-

Part#: 258997 Qty: 1

62614061
IGNITION ECU -Korea- -Applicable from Ass. No. 86423 up to Ass. No. 88122- -Applicable for DCT gearbox- -Applicable up to engine No. 153878- -No longer supplied- -Replaced by 238263-

Part#: 261406 Qty: 1

62627611
IGNITION ECU -Korea- -Applicable from Ass. No. 88123- -Applicable for DCT gearbox- -Applicable from engine No. 153879- -No longer supplied- -Replaced by 238263-

Part#: 262761 Qty: 1

62543301
IGNITION ECU -China- -Applicable for DCT gearbox- -No longer supplied- -Replaced by 238263-

Part#: 254330 Qty: 1

62382631
IGNITION ECU -Unprogrammed-
$4417.10

Part#: 238263 Qty: 1$4417.10

72399981
RH BRACKET -Applicable up to Ass. No. 103178-

Part#: 239998 Qty: 1

72828381
RH BRACKET -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 282838 Qty: 1

8162969243
SCREW -Applicable up to Ass. No. 103178-
$0.50

Part#: 16296924 Qty: 3$0.50

8162861244
SCREW -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 16286124 Qty: 4

92467221
CLIP -D. 23-

Part#: 246722 Qty: 1

92442212
CLIP -D. 16-

Part#: 244221 Qty: 2

102514491
R.H. FRONT BRACKET

Part#: 251449 Qty: 1

112514481
R.H. REAR BRACKET

Part#: 251448 Qty: 1

122476651
R.H. WATER PIPE BRACKET -Applicable up to engine No. 156350-

Part#: 247665 Qty: 1

131401621
ANCHORAGE FOR CLIP -Applicable up to engine No. 156350-
$2.50

Part#: 140162 Qty: 1$2.50

141407301
CLIP -Applicable up to engine No. 156350-
$0.17

Part#: 140730 Qty: 1$0.17

152336001
SCREW

Part#: 233600 Qty: 1

162368761
CONTROL UNIT FIXING BRACKET

Part#: 236876 Qty: 1

172518111
HEAT SHIELD

Part#: 251811 Qty: 1

182486101
FRONT CABLE FASTENER BRACKET

Part#: 248610 Qty: 1

19659968001
BRACKET -Applicable from engine No. 156351-
$8.49

Part#: 65996800 Qty: 1$8.49

202316161
SCREW -M6 X 14- -Applicable from engine No. 156351-
$1.75

Part#: 231616 Qty: 1$1.75
