Table 39

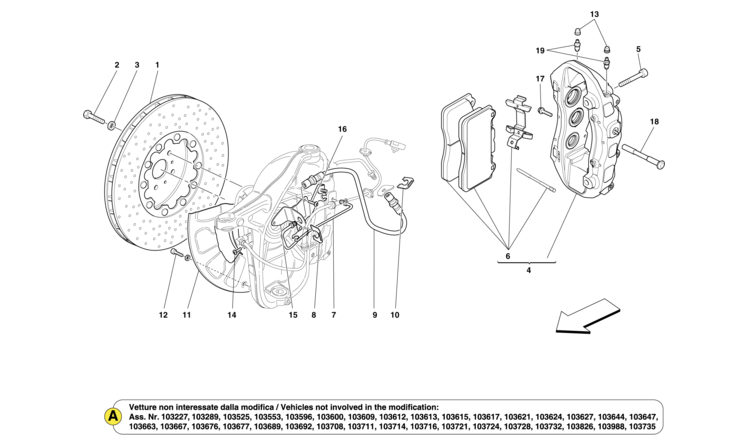

Table 39 - FRONT WHEEL BRAKE SYSTEM COMPONENTS

Ref.Part#Qty.DescriptionPrice
12514842
FRONT BRAKE DISC -Applicable until depletion-

Part#: 251484 Qty: 2

12571012
FRONT BRAKE DISC -Applicable up to Ass. No. 95333- -Applicable after depletion of 251484- -Applicable until depletion-
$7269.22

Part#: 257101 Qty: 2$7269.22

12717132
FRONT BRAKE DISC -Applicable from Ass. No. 95334 up to Ass. No. 96951- -Applicable after depletion of 257101- -Applicable until depletion-

Part#: 271713 Qty: 2

12742332
FRONT BRAKE DISC -Applicable from Ass. No. 96952- -Applicable after depletion of 271713-

Part#: 274233 Qty: 2

22281312
SCREW

Part#: 228131 Qty: 2

21043702
SCREW
$1.50

Part#: 104370 Qty: 2$1.50

32281324
WASHER

Part#: 228132 Qty: 4

42515151
COMPLETE R.H. FRONT CALIPER -Gloss Black brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251515 Qty: 1

42791271
COMPL. RH FRONT CALLIPER -Gloss Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279127 Qty: 1

42965941
COMPL. RH FRONT CALLIPER -Gloss Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279127-

Part#: 296594 Qty: 1

42515161
COMPLETE R.H. FRONT CALIPER -Corsa Red brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251516 Qty: 1

42791291
COMPL. RH FRONT CALLIPER -Corsa Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279129 Qty: 1

42965961
COMPL. RH FRONT CALLIPER -Corsa Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279129-

Part#: 296596 Qty: 1

42515171
COMPLETE R.H. FRONT CALIPER -Aluminium Grey brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251517 Qty: 1

42791311
COMPL. RH FRONT CALLIPER -Aluminium Grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279131 Qty: 1

42965981
COMPL. RH FRONT CALLIPER -Aluminium Grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279131-

Part#: 296598 Qty: 1

42515181
COMPLETE R.H. FRONT CALIPER -Modena Yellow brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251518 Qty: 1

42791321
COMPL. RH FRONT CALLIPER -Modena Yellow brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279132 Qty: 1

42966001
COMPL. RH FRONT CALLIPER -Modena Yellow brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279132-

Part#: 296600 Qty: 1

42515191
COMPLETE R.H. FRONT CALIPER -Scuderia Red brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251519 Qty: 1

42791331
COMPL. RH FRONT CALLIPER -Scuderia Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279133 Qty: 1

42966021
COMPL. RH FRONT CALLIPER -Scuderia Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279133-

Part#: 296602 Qty: 1

42846921
COMPL. RH FRONT CALLIPER -Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 284692 Qty: 1

43018781
COMPL. RH FRONT CALLIPER -Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 284692-

Part#: 301878 Qty: 1

42846961
COMPL. RH FRONT CALLIPER -Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 284696 Qty: 1

43018801
COMPL. RH FRONT CALLIPER -Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 284696-

Part#: 301880 Qty: 1

42514921
COMPLETE L.H. FRONT CALIPER -Gloss Black brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251492 Qty: 1

42791211
COMPL. LH FRONT CALLIPER -Gloss Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279121 Qty: 1

42965931
COMPL. LH FRONT CALLIPER -Gloss Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279121-

Part#: 296593 Qty: 1

42515101
COMPLETE L.H. FRONT CALIPER -Corsa Red brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251510 Qty: 1

42791221
COMPL. LH FRONT CALLIPER -Corsa Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279122 Qty: 1

42965951
COMPL. LH FRONT CALLIPER -Corsa Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279122-

Part#: 296595 Qty: 1

42515111
COMPLETE L.H. FRONT CALIPER -Aluminium Grey brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251511 Qty: 1

42791231
COMPL. LH FRONT CALLIPER -Aluminium Grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279123 Qty: 1

42965971
COMPL. LH FRONT CALLIPER -Aluminium Grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279123-

Part#: 296597 Qty: 1

42515121
COMPLETE L.H. FRONT CALIPER -Modena Yellow brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251512 Qty: 1

42791241
COMPL. LH FRONT CALLIPER -Modena Yellow brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279124 Qty: 1

42965991
COMPL. LH FRONT CALLIPER -Modena Yellow brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279124-

Part#: 296599 Qty: 1

42515131
COMPLETE L.H. FRONT CALIPER -Scuderia Red brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251513 Qty: 1

42791251
COMPL. LH FRONT CALLIPER -Scuderia Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279125 Qty: 1

42966011
COMPL. LH FRONT CALLIPER -Scuderia Red brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279125-

Part#: 296601 Qty: 1

42515141
COMPL. RH FRONT CALLIPER -Anodised Black brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251514 Qty: 1

42759821
COMPL. RH FRONT CALLIPER -Anodised Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 275982 Qty: 1

42965891
COMPL. RH FRONT CALLIPER -Anodised Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 275982-

Part#: 296589 Qty: 1

42515091
COMPL. LH FRONT CALLIPER -Anodised Black brake callipers- -Applicable up to Ass. No. 103178-

Part#: 251509 Qty: 1

42759761
COMPL. LH FRONT CALLIPER -Anodised Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 275976 Qty: 1

42965871
COMPL. LH FRONT CALLIPER -Anodised Black brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 275976-

Part#: 296587 Qty: 1

42846911
COMPL. LH FRONT CALLIPER -Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 284691 Qty: 1

43018761
COMPL. LH FRONT CALLIPER -Gold brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 284691-

Part#: 301876 Qty: 1

42846951
COMPL. LH FRONT CALLIPER -Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 284695 Qty: 1

43018791
COMPL. LH FRONT CALLIPER -Blue brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 284695-

Part#: 301879 Qty: 1

42768761
COMPL. RH FRONT CALLIPER -Dark grey brake callipers- -Applicable up to Ass. No. 103178-

Part#: 276876 Qty: 1

42791351
COMPL. RH FRONT CALLIPER -Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279135 Qty: 1

42965911
COMPL. RH FRONT CALLIPER -Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279135-

Part#: 296591 Qty: 1

42768751
COMPL. LH FRONT CALLIPER -Dark grey brake callipers- -Applicable up to Ass. No. 103178-

Part#: 276875 Qty: 1

42791261
COMPL. LH FRONT CALLIPER -Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 279126 Qty: 1

42965901
COMPL. LH FRONT CALLIPER -Dark grey brake callipers- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 112693- -Applicable after depletion of 279126-

Part#: 296590 Qty: 1

51951674
SCREW
$17.04

Part#: 195167 Qty: 4$17.04

6700013641
FRONT BRAKE PAD KIT -No longer supplied- -Replaced by 70001784-
$1750.00

Part#: 70001364 Qty: 1$1750.00

6700017841
FRONT BRAKE PAD KIT -No longer supplied- -Replaced by 70001785-

Part#: 70001784 Qty: 1

6700017851
FRONT BRAKE PAD KIT -Applicable up to Ass. No. 103178- -Applicable until depletion-

Part#: 70001785 Qty: 1

6700031101
FRONT BRAKE PAD KIT -Applicable up to Ass. No. 103178- -Applicable after depletion of 70001785-
$1930.10

Part#: 70003110 Qty: 1$1930.10

6700024461
FRONT BRAKE PAD KIT -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179 up to Ass. No. 112692- -Applicable until depletion-

Part#: 70002446 Qty: 1

6700029541
FRONT BRAKE PAD KIT -Applicable from Ass. No. 112693- -Applicable after depletion of 70002446-
$1544.06

Part#: 70002954 Qty: 1$1544.06

72523721
RH BRAKE PIPE -Applicable up to Ass. No. 103178-

Part#: 252372 Qty: 1

72747031
BRAKE PIPE FROM CALLIPER TO RH FLEXIBLE HOSE -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 274703 Qty: 1

72523661
LH BRAKE PIPE -Applicable up to Ass. No. 103178-

Part#: 252366 Qty: 1

72747011
BRAKE PIPE FROM CALLIPER TO LH FLEXIBLE HOSE -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 274701 Qty: 1

82342842
CLIP

Part#: 234284 Qty: 2

91163732
RUBBER PIPE -Applicable up to Ass. No. 95333- -Applicable until depletion-

Part#: 116373 Qty: 2

92717112
RUBBER PIPE -Applicable from Ass. No. 95334 up to Ass. No. 103178- -Applicable after depletion of 116373-
$54.49

Part#: 271711 Qty: 2$54.49

92542412
HOSE -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 254241 Qty: 2

101163742
CLIP
$3.92

Part#: 116374 Qty: 2$3.92

112515261
FRONT RH BRAKE DISC SHIELD -Applicable up to Ass. No. 86527-

Part#: 251526 Qty: 1

112602591
FRONT RH DISC SHIELD -Applicable from Ass. No. 86528 up to Ass. No. 103178-

Part#: 260259 Qty: 1

112606761
RH FRONT BRAKE DISC SHIELD -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 260676 Qty: 1

112515241
FRONT LH BRAKE DISC SHIELD -Applicable up to Ass. No. 86527-

Part#: 251524 Qty: 1

112602581
FRONT LH DISC SHIELD -Applicable from Ass. No. 86528 up to Ass. No. 103178-
$55.73

Part#: 260258 Qty: 1$55.73

112606751
LH FRONT BRAKE DISC SHIELD -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
$57.65

Part#: 260675 Qty: 1$57.65

121908704
SCREW -No longer supplied- -Replaced by 250657-
$3.53

Part#: 190870 Qty: 4$3.53

122506574
SCREW

Part#: 250657 Qty: 4

132156664
CAP
$44.54

Part#: 215666 Qty: 4$44.54

142293242
SCREW

Part#: 229324 Qty: 2

152510851
RH BRACKET -Applicable up to Ass. No. 103178-

Part#: 251085 Qty: 1

152759581
RH BRACKET -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 275958 Qty: 1

152510841
LH BRACKET -Applicable up to Ass. No. 103178-

Part#: 251084 Qty: 1

152759561
LH BRACKET -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-

Part#: 275956 Qty: 1

161908704
SCREW -No longer supplied- -Replaced by 250657-
$3.53

Part#: 190870 Qty: 4$3.53

162506574
SCREW

Part#: 250657 Qty: 4

171980142
FLANGED SCREW

Part#: 198014 Qty: 2

181980152
TIE ROD

Part#: 198015 Qty: 2

192156654
BLEED SCREW
$66.21

Part#: 215665 Qty: 4$66.21
