Table 13/A

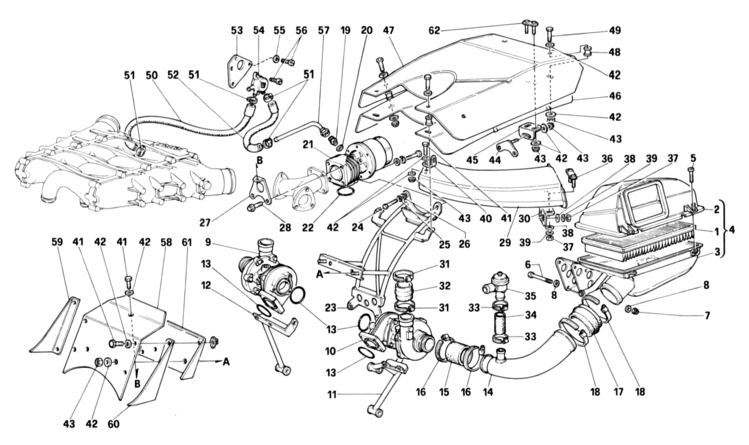

Table 13/A - Oversupply system Valid for cars with catalyst-

Ref.Part#Qty.DescriptionPrice
11157432
Air filter
$70.00

Part#: 115743 Qty: 2$70.00

21434221
R.H. cover

Part#: 143422 Qty: 1

1434291
L.H. cover

Part#: 143429 Qty: 1

31434201
o- Holder -Not as spare parts-With assembly 143419

Part#: 143420 Qty: 1

1434271
o- Holder -Not as spare parts-With assembly 143420

Part#: 143427 Qty: 1

41434191
R.H. air inlet assy

Part#: 143419 Qty: 1

1434201
L.H. air inlet assy

Part#: 143420 Qty: 1

5103760778
Screw

Part#: 10376077 Qty: 8

6110304214
Screw

Part#: 11030421 Qty: 4

7125742114
Nut

Part#: 12574211 Qty: 4

8126437018
Washer

Part#: 12643701 Qty: 8

91643581
R.H. turbocharger

Part#: 164358 Qty: 1

101643591
L.H. turbocharger

Part#: 164359 Qty: 1

111453791
Turbo support L.H.

Part#: 145379 Qty: 1

121453781
Turbo support R.H.

Part#: 145378 Qty: 1

131233854
Seal ring
$229.09

Part#: 123385 Qty: 4$229.09

141364251
L.H. air inlet pipe

Part#: 136425 Qty: 1

1364261
R.H. air inlet pipe

Part#: 136426 Qty: 1

151364242
Hose

Part#: 136424 Qty: 2

16121771904
Clamp
$3.39

Part#: 12177190 Qty: 4$3.39

171244492
Hose
$200.25

Part#: 124449 Qty: 2$200.25

181228904
Clamp
$2.25

Part#: 122890 Qty: 4$2.25

191207481
Union

Part#: 120748 Qty: 1

20112702601
Gasket
$0.75

Part#: 11270260 Qty: 1$0.75

211438281
W.G. valve

Part#: 143828 Qty: 1

221210981
Gasket
$94.07

Part#: 121098 Qty: 1$94.07

231444541
Bracket

Part#: 144454 Qty: 1

24109783213
Screw
$3.11

Part#: 10978321 Qty: 3$3.11

25126378013
Washer

Part#: 12637801 Qty: 3

261274933
Washer
$0.10

Part#: 127493 Qty: 3$0.10

271453681
Bracket

Part#: 145368 Qty: 1

281224614
Screw

Part#: 122461 Qty: 4

29627317001
Air conveyor

Part#: 62731700 Qty: 1

301453691
Bracket

Part#: 145369 Qty: 1

31121770904
Clamp

Part#: 12177090 Qty: 4

321364232
Hose

Part#: 136423 Qty: 2

33121799904
Clamp

Part#: 12179990 Qty: 4

341363032
Hose

Part#: 136303 Qty: 2

351295642
Valve
$658.02

Part#: 129564 Qty: 2$658.02

361453771
Bracket

Part#: 145377 Qty: 1

37158962114
Nut

Part#: 15896211 Qty: 4

38126466014
Washer

Part#: 12646601 Qty: 4

391274944
Washer
$0.65

Part#: 127494 Qty: 4$0.65

401443521
Bracket

Part#: 144352 Qty: 1

411453716
Screw

Part#: 145371 Qty: 6

4214537528
Washer
$12.14

Part#: 145375 Qty: 28$12.14

4312074915
Nut
$4.98

Part#: 120749 Qty: 15$4.98

441453722
Bracket

Part#: 145372 Qty: 2

451453702
Bracket

Part#: 145370 Qty: 2

461453661
Lower screen

Part#: 145366 Qty: 1

471442211
Upper screen

Part#: 144221 Qty: 1

481443546
Spacer

Part#: 144354 Qty: 6

491453736
Screw

Part#: 145373 Qty: 6

501481471
Rubber pipe from solenoid valve

Part#: 148147 Qty: 1

51121794904
Clamp

Part#: 12179490 Qty: 4

521481481
Rubber pipe from W G.

Part#: 148148 Qty: 1

531443451
Bracket

Part#: 144345 Qty: 1

541359651
Valve
$286.68

Part#: 135965 Qty: 1$286.68

55106153792
Washer

Part#: 10615379 Qty: 2

56143040213
Screw

Part#: 14304021 Qty: 3

571376421
Hard pipe

Part#: 137642 Qty: 1

581442221
Front screen

Part#: 144222 Qty: 1

591442231
R.H. listel

Part#: 144223 Qty: 1

601442241
L.H. listel

Part#: 144224 Qty: 1

611441521
Shield

Part#: 144152 Qty: 1

621443532
Bracket

Part#: 144353 Qty: 2
