Ferrari Philadelphia Parts

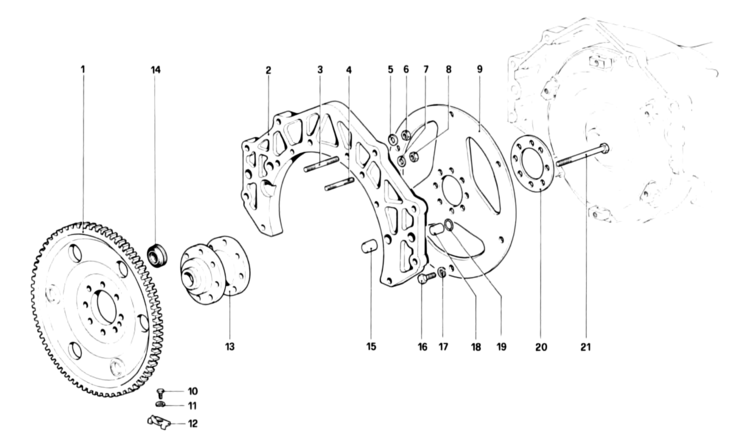

Table 20
Ref.Part#Qty.DescriptionPrice
11261991
Flywheel Not for CH

Part#: 126199 Qty: 1

11290061
Flywheel For CH86

Part#: 129006 Qty: 1

11332221
Flywheel For CH87

Part#: 133222 Qty: 1

21260521
Flange between engine and gearbox

Part#: 126052 Qty: 1

3135466212
Stud

Part#: 13546621 Qty: 2

4135436216
Stud

Part#: 13543621 Qty: 6

5126014712
Washer

Part#: 12601471 Qty: 2

6121647112
Nut

Part#: 12164711 Qty: 2

7126013716
Spring washer

Part#: 12601371 Qty: 6

8161008116
Nut

Part#: 16100811 Qty: 6

91111751
Flange

Part#: 111175 Qty: 1

10109775211
Bolt

Part#: 10977521 Qty: 1

11125741211
Spring washer

Part#: 12574121 Qty: 1

121262061
Reference plate

Part#: 126206 Qty: 1

131278961
Flywheel hub

Part#: 127896 Qty: 1

141115403
Vibration dampmq stopper

Part#: 111540 Qty: 3

15108399102
Reference dowel

Part#: 10839910 Qty: 2

161142026
Bolt, securing flange

Part#: 114202 Qty: 6

17106853fi
Washer

Part#: 106853 Qty: fi

181090002
Centei ing dowel

Part#: 109000 Qty: 2

19134008752
Sealing ring

Part#: 13400875 Qty: 2

201086621
1 ocking plate
$34.29

Part#: 108662 Qty: 1$34.29

211111808
Bolt
$29.80

Part#: 111180 Qty: 8$29.80
