Ferrari Philadelphia Parts

Table 49

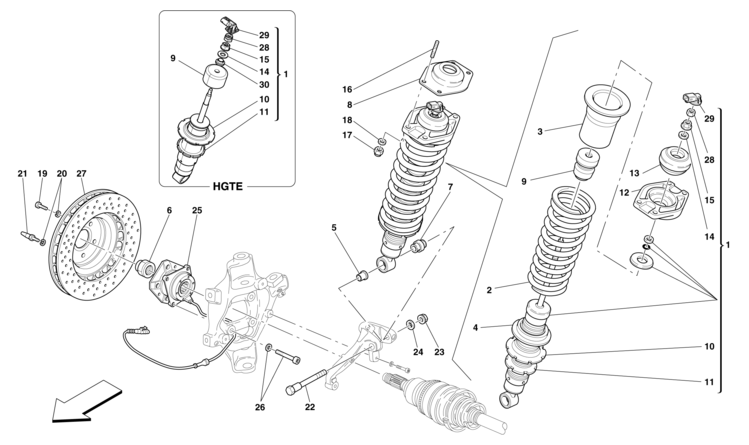

Table 49 - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Ref.Part#Qty.DescriptionPrice
12125092
REAR SHOCK ABSORBER -No longer supplied- -Replaced by 257059-

Part#: 212509 Qty: 2

12570592
REAR SHOCK ABSORBER
$3587.04

Part#: 257059 Qty: 2$3587.04

22117572
SUSPENSION SPRING -Standard-

Part#: 211757 Qty: 2

22210942
SUSPENSION SPRING -Applicable for HGTE version-

Part#: 221094 Qty: 2

31864892
UPPER SPACER
$39.59

Part#: 186489 Qty: 2$39.59

41864872
LOWER SPACER
$50.16

Part#: 186487 Qty: 2$50.16

51907022
SHIM
$178.45

Part#: 190702 Qty: 2$178.45

62037802
NUT
$31.25

Part#: 203780 Qty: 2$31.25

71576302
BALL-JOINT
$163.04

Part#: 157630 Qty: 2$163.04

81903322
UPPER STOP CAP

Part#: 190332 Qty: 2

92203492
SHOCK ABSORBER BUSHING -Standard-

Part#: 220349 Qty: 2

92569772
SHOCK ABSORBER BUSHING -Applicable for HGTE version-

Part#: 256977 Qty: 2

102203502
CAP
$196.56

Part#: 220350 Qty: 2$196.56

112203512
THREADED RING NUT
$74.95

Part#: 220351 Qty: 2$74.95

121903302
LOWER STOP CAP

Part#: 190330 Qty: 2

132046062
HYPERBLOCK
$316.16

Part#: 204606 Qty: 2$316.16

142203772
WASHER

Part#: 220377 Qty: 2

152203782
NUT
$4.90

Part#: 220378 Qty: 2$4.90

16135436348
STUD BOLT

Part#: 13543634 Qty: 8

171040308
NUT
$0.48

Part#: 104030 Qty: 8$0.48

18144965248
WASHER
$0.17

Part#: 14496524 Qty: 8$0.17

19160434242
SCREW
$1.25

Part#: 16043424 Qty: 2$1.25

201274964
WASHER
$0.50

Part#: 127496 Qty: 4$0.50

211043702
BRAKE DISC FASTENER SCREW
$1.50

Part#: 104370 Qty: 2$1.50

221905302
SCREW

Part#: 190530 Qty: 2

23140587212
NUT
$1.39

Part#: 14058721 Qty: 2$1.39

241550022
WASHER

Part#: 155002 Qty: 2

251972322
WHEEL BEARING
$862.43

Part#: 197232 Qty: 2$862.43

261907238
SCREW WITH WASHER
$11.20

Part#: 190723 Qty: 8$11.20

271984882
REAR BRAKE DISC -Standard-
$657.51

Part#: 198488 Qty: 2$657.51

272168352
REAR BRAKE DISC -Version with CCM brakes-
$5095.72

Part#: 216835 Qty: 2$5095.72

282203822
NUT
$36.37

Part#: 220382 Qty: 2$36.37

292458412
CONNECTOR

Part#: 245841 Qty: 2

302203832
BUSHING -Applicable for HGTE version-

Part#: 220383 Qty: 2
